Understanding the structure of your hand is essential when dealing with injuries, discomfort, or routine check-ups. When a physician orders a normal hand X-ray, they are looking to establish a baseline of anatomical health by confirming that bones, joints, and soft tissues appear exactly as they should. For many patients, the term "normal" can be confusing, but in the context of diagnostic imaging, it signifies the absence of fractures, dislocations, arthritic changes, or pathological lesions. This guide explores what radiologists look for during an examination and how a healthy hand structure is defined in medical imaging.
What Constitutes a Normal Hand X-Ray?

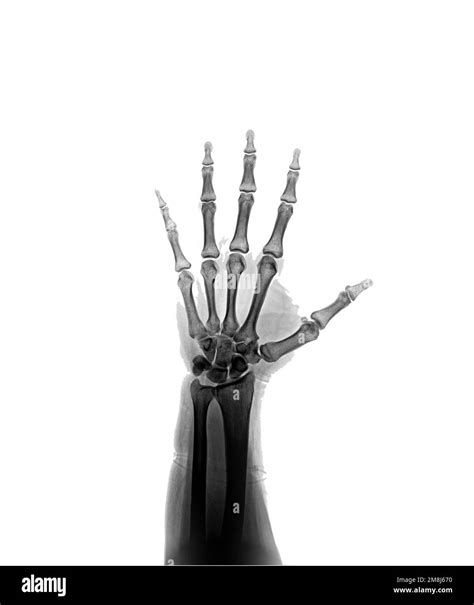

To determine if an X-ray is normal, medical professionals evaluate the intricate arrangement of the 27 bones that make up the human hand. A normal hand X-ray displays clear, well-defined bone cortices, uniform joint spaces, and proper alignment of the phalanges, metacarpals, and carpals. The radiologist carefully inspects for any disruption in the trabecular pattern—the internal, spongy structure of the bone—to ensure there are no hairline fractures that might be missed upon a casual glance.
Key areas assessed in a routine examination include:
- Phalanges: The bones in the fingers, which should appear straight with no signs of shortening or deformity.
- Metacarpals: The long bones in the palm area, which must show clear separation and intact shafts.
- Carpal Bones: The eight small bones of the wrist, which should demonstrate precise positioning relative to one another.
- Joint Spaces: The areas between bones should be of consistent thickness, indicating healthy cartilage, with no evidence of narrowing.
The Anatomy of a Healthy Hand
A normal hand X-ray serves as a map of the musculoskeletal system. The hand is a complex marvel of engineering, and even minor deviations can signal underlying conditions. When viewing an X-ray, the radiologist checks for the presence of all expected ossification centers, especially in younger patients whose bones are still developing. In adults, the focus shifts to maintaining structural integrity and identifying any early signs of systemic issues like rheumatoid arthritis or osteoarthritis.
| Anatomical Region | What to Expect in a Normal Scan |
|---|---|
| Distal Phalanges | Smooth, rounded tips with no lytic lesions. |
| Metacarpophalangeal Joints | Clear, open joint spaces without erosions. |
| Carpal Tunnel Area | Proper alignment of the carpal bones without overcrowding. |
| Soft Tissues | Minimal swelling; skin lines should be visible and uninterrupted. |
⚠️ Note: If you are experiencing persistent pain despite receiving a result of a normal hand X-ray, it is possible that the issue lies in the soft tissues (tendons, ligaments, or nerves), which are often not clearly visualized on standard X-ray imaging. Your doctor may recommend an MRI or ultrasound as a follow-up.
Common Reasons to Request an X-Ray
Even when a normal hand X-ray is the expected outcome, the procedure remains the gold standard for ruling out serious pathology. Patients often undergo this imaging process due to acute trauma, such as a fall, or chronic conditions that cause stiffness and pain. By capturing the hand in various positions—typically a posterior-anterior (PA) view, an oblique view, and a lateral view—radiologists can view the bones from multiple angles to ensure no hidden abnormalities are present.
Common clinical reasons for the exam include:
- Evaluating localized tenderness after a blunt injury.
- Assessing suspected dislocations or subluxations of the fingers.
- Monitoring the progression of chronic joint inflammation.
- Identifying foreign bodies, such as small glass or metal shards.
- Screening for bone density issues that may lead to future fractures.
How to Prepare for Your Imaging Session
Preparing for a hand X-ray is straightforward and requires very little effort. Unlike other medical procedures, there are no fasting requirements or complex preparatory steps. However, to ensure the clearest image possible and minimize the need for repeat scans, patients should adhere to a few simple guidelines.
Follow these steps for a smooth visit:
- Remove Jewelry: Take off all rings, bracelets, and watches from the affected hand and wrist, as metal can obstruct the X-ray beam and create artifacts.
- Communicate Symptoms: Inform the technician exactly where the pain or discomfort is located so they can adjust the view to better visualize that specific area.
- Stay Still: During the exposure, remain as still as possible to prevent blurring, which could mimic a fracture or obscure a fine detail.
- Wear Appropriate Clothing: Wear short sleeves or sleeves that can be easily rolled up well above the elbow.
💡 Note: Always inform the technologist if there is a possibility that you are pregnant, as radiation exposure should be kept to the absolute minimum necessary, even if the primary area being imaged is the hand.
Interpreting Your Results
Once the images are captured, a board-certified radiologist reviews them to generate a report. Receiving a report stating that your normal hand X-ray is clear is generally positive news. However, it is vital to remember that a “normal” result does not necessarily mean “no pathology.” It simply means the skeletal structure appears normal at that moment in time.
If your results return as normal, your healthcare provider will likely shift the focus toward soft tissue diagnostics. This may include a physical examination of your range of motion, grip strength tests, or a discussion about your daily activity levels to see if repetitive strain might be the culprit. Always review these findings with your primary physician to correlate the imaging results with your actual physical symptoms.
Having a clear understanding of what a normal hand X-ray entails allows you to participate more effectively in your own healthcare journey. When you know that the structural foundation of your hand—the bones and joints—has been confirmed as healthy, you can work with your medical team to explore other possibilities, such as ligament strains, tendonitis, or nerve entrapment syndromes. Maintaining good bone health through proper nutrition and safe daily habits ensures that your hand function remains optimal for years to come. Ultimately, peace of mind regarding your physical health begins with accurate diagnostic information and a transparent conversation with your healthcare provider.
