Mastering 12 lead ECG interpretation is a fundamental skill for healthcare professionals, acting as a critical bridge between patient symptoms and life-saving interventions. An electrocardiogram (ECG) provides a unique electrical map of the heart, capturing data from twelve different perspectives. By analyzing the wave patterns produced by the heart's electrical conduction system, clinicians can detect arrhythmias, ischemic events, electrolyte imbalances, and structural abnormalities. While the sheer amount of data presented on a standard tracing can seem overwhelming, breaking the process down into a systematic, reproducible approach ensures accuracy and confidence in clinical decision-making.

Table of Contents

The Foundations of the 12 Lead ECG

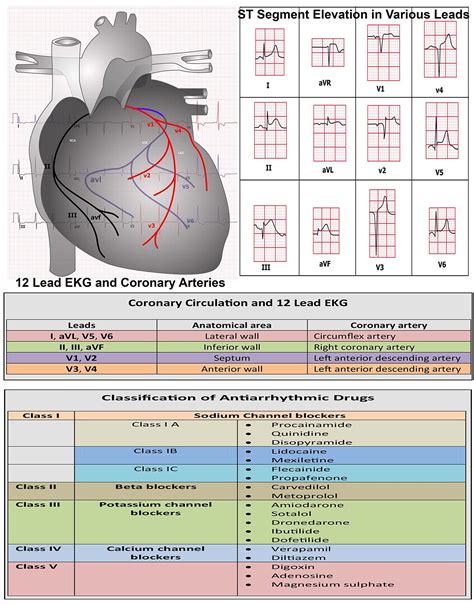

The 12 lead ECG does not actually use twelve individual electrical leads attached to the patient; rather, it uses ten physical electrodes to create twelve distinct views of the heart's electrical activity. These views are categorized into two primary groups: limb leads and precordial leads. Understanding the anatomical perspective of each lead is vital for localizing pathology, such as determining which coronary artery may be occluded during a myocardial infarction.

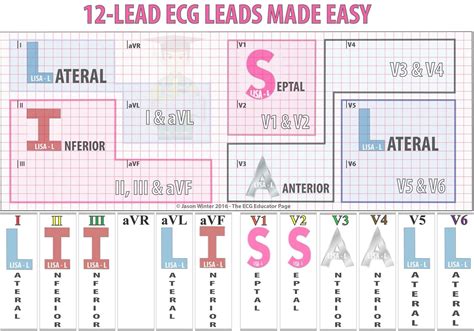

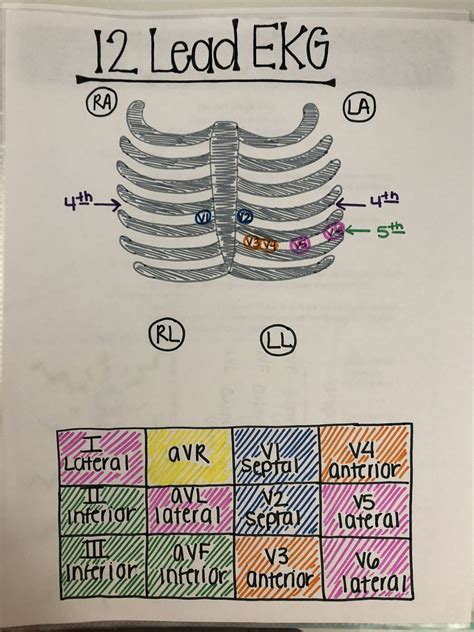

The standard 12 lead configuration is divided as follows:

A Systematic Approach to Interpretation

To avoid missing subtle findings, every clinician should adopt a consistent method for 12 lead ECG interpretation. A reliable sequence ensures that you evaluate every component of the cardiac cycle before formulating a clinical impression. The following checklist is widely regarded as the gold standard for clinical assessment:

Rate: Is the heart rate too fast (tachycardia) or too slow (bradycardia)?
Rhythm: Is it regular or irregular? Is there a P-wave before every QRS complex?

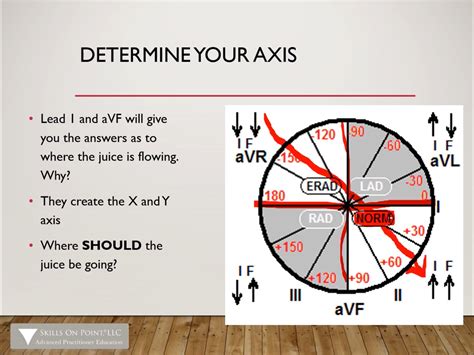

Axis: Determine the electrical orientation of the heart to rule out hypertrophy or conduction blocks.
Intervals: Measure the PR interval, QRS duration, and the QTc interval.
Waveform Morphology: Examine the P-waves, QRS complexes, and T-waves for signs of enlargement or ischemia.
ST-Segment Changes: Scrutinize the tracing for elevation or depression, which are hallmark signs of myocardial injury.

Anatomy of the ECG Tracing

Each component of the ECG tracing reflects a specific physiological event within the heart. Recognizing the normal morphology of these waves is essential before identifying pathological shifts. The table below summarizes the key intervals and their standard clinical significance:

Interval/Wave	Typical Duration	Clinical Significance
P-Wave	< 0.12 seconds	Atrial depolarization
PR Interval	0.12 – 0.20 seconds	AV nodal conduction time
QRS Complex	< 0.10 seconds	Ventricular depolarization
QT Interval	< 0.44 seconds	Ventricular depolarization and repolarization

⚠️ Note: Always calculate the QTc (corrected QT interval) if the heart rate is abnormal, as the raw QT interval can be misleading during tachycardia or bradycardia.

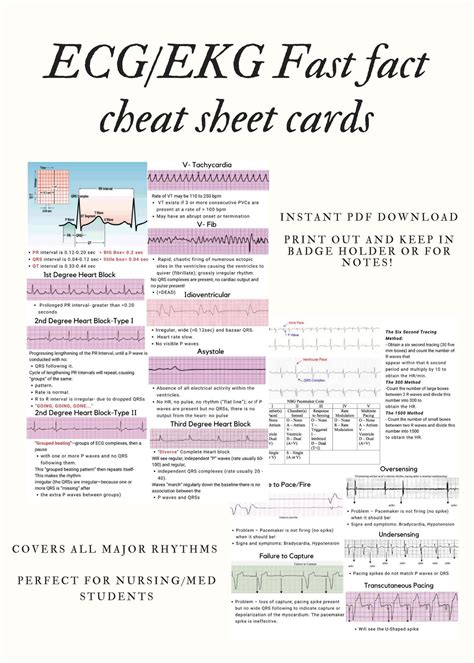

Identifying Pathological Patterns

Once you are proficient with the basics, focus on recognizing patterns that dictate immediate medical intervention. For instance, ST-segment elevation in contiguous leads is the primary indicator of an ST-Elevation Myocardial Infarction (STEMI). Conversely, ST-segment depression or T-wave inversion often suggests myocardial ischemia or subendocardial injury.

Furthermore, 12 lead ECG interpretation allows clinicians to identify bundle branch blocks. A wide QRS complex (>0.12s) often indicates that the electrical impulse is traveling through the ventricles via an abnormal pathway. By looking at leads V1 and V6, you can distinguish between a Left Bundle Branch Block (LBBB) and a Right Bundle Branch Block (RBBB), which is critical for patients presenting with chest pain, as an LBBB can obscure the signs of an acute infarction.

Advanced Considerations and Troubleshooting

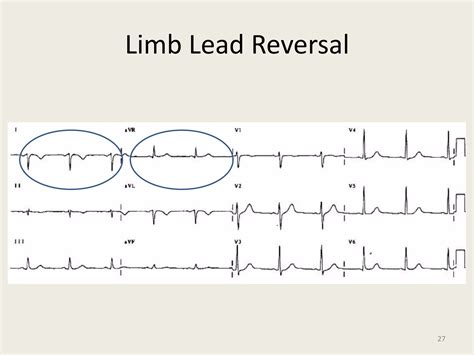

Technological limitations and patient factors can lead to "artifact," which is electrical interference that mimics pathology. Common sources include patient movement, loose electrodes, or muscle tremors. Before concluding that a patient is in a lethal rhythm, always verify that the leads are placed correctly and that the skin is properly prepped to minimize impedance. High-quality tracing is the prerequisite for high-quality diagnosis.

Also read: Laura Perlmutter Face Surgery

Additionally, remember that an ECG is a snapshot in time. In cases where the initial ECG is inconclusive but clinical suspicion remains high for cardiac events, serial ECGs are mandatory. Changes in the morphology of ST-segments or the appearance of new Q-waves over a short period can provide the diagnostic evidence required to move a patient into the catheterization lab or to initiate aggressive pharmacologic therapy.

⚠️ Note: Avoid interpreting an ECG in a vacuum; clinical context—such as age, medical history, and presenting symptoms—is as important as the electrical tracing itself.

Developing proficiency in this field requires ongoing practice and exposure to a wide variety of clinical scenarios. By rigorously applying a systematic review process, you minimize the risk of overlooking subtle but life-threatening abnormalities. Whether you are working in emergency medicine, critical care, or general practice, your ability to provide rapid and accurate 12 lead ECG interpretation serves as a cornerstone of patient safety. Continue to refine your skills by reviewing complex cases and participating in peer-led rhythm analysis discussions, as the nuances of electrophysiology are best mastered through consistent, deliberate practice and observation of real-world tracings.
