The 12-lead ECG (electrocardiogram) is a cornerstone of modern cardiac diagnostics, providing a comprehensive view of the heart's electrical activity. Mastering 12-lead ECG placement is an essential skill for healthcare professionals, as accurate electrode positioning is critical for obtaining a high-quality, diagnostic-grade tracing. Even minor deviations in placement can lead to artifacts, signal distortion, or misdiagnosis, which can have significant clinical consequences. This guide explores the standardized approach to electrode placement, the anatomical landmarks required for precision, and best practices to ensure optimal signal acquisition.
The Fundamentals of 12-Lead ECG Placement
A 12-lead ECG does not actually use 12 physical electrodes on the patient's body. Instead, it utilizes 10 electrodes to generate 12 different "views" or leads of the heart. These 10 electrodes consist of four limb electrodes and six precordial (chest) electrodes. The accuracy of the 12-lead ECG placement relies entirely on the practitioner's ability to locate specific anatomical landmarks on the patient's thorax and limbs.
When placing electrodes, consistency is key. The electrical vectors measured by the ECG machine are calculated based on the standardized positions of these electrodes. If an electrode is placed too high, too low, or too far to the side, the resulting waveform will not accurately represent the heart's electrical state from that specific angle, potentially mimicking or masking signs of ischemia, infarction, or hypertrophy.
Anatomical Landmarks and Electrode Positioning
Proper 12-lead ECG placement requires a systematic approach, starting with the chest leads (V1–V6). These are placed in a semi-circular fashion across the anterior chest wall. Before beginning, it is important to ensure the patient is in a supine, relaxed position to minimize muscle artifact.
Precordial (Chest) Lead Placement
- V1: Fourth intercostal space at the right sternal border.
- V2: Fourth intercostal space at the left sternal border.
- V3: Midway between the V2 and V4 positions.
- V4: Fifth intercostal space at the mid-clavicular line.
- V5: Horizontal to V4 at the anterior axillary line.
- V6: Horizontal to V4 and V5 at the mid-axillary line.
Limb Lead Placement
The limb electrodes (RA, LA, RL, LL) can be placed on the wrists and ankles or on the upper arms and upper thighs. The most important rule is that they must be placed equidistantly from the heart to ensure accurate voltage measurement. While the limbs are the conventional sites, placing electrodes on the torso is sometimes necessary in patients with tremors or those undergoing physical exertion, though this will alter the ECG morphology and should be documented.
| Electrode | Standard Placement Location |
|---|---|
| RA (Right Arm) | Right forearm or upper arm |
| LA (Left Arm) | Left forearm or upper arm |
| RL (Right Leg) | Right lower leg or thigh (Reference/Ground) |
| LL (Left Leg) | Left lower leg or thigh |
⚠️ Note: Always verify the intercostal spaces by palpating the sternal angle (Angle of Louis), which aligns with the second rib. Count down from there to find the fourth intercostal space for leads V1 and V2.
Troubleshooting Artifacts and Quality Control
Achieving a clear ECG tracing is not just about electrode location; it is also about skin preparation and equipment integrity. Poor signal quality often stems from high skin-electrode impedance. To mitigate this, ensure the patient's skin is clean, dry, and free of excessive hair or oils.
- Skin Prep: Use an abrasive pad to gently remove dead skin cells if the signal is poor.
- Electrode Adhesion: Ensure the gel center of the electrode is well-hydrated and adheres firmly to the skin.
- Cable Management: Arrange cables to prevent tension, which can pull electrodes away from the skin and cause "wandering baseline" artifacts.
- Patient Comfort: Instruct the patient to remain still and avoid talking, as muscle activity (myogenic interference) can obscure the cardiac signal.
💡 Note: If a patient has large breasts, lift the breast tissue and place the V4, V5, and V6 electrodes underneath the tissue directly on the chest wall for more accurate measurements.
Clinical Importance of Precision

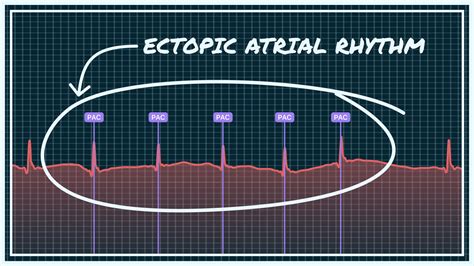

The clinical impact of incorrect 12-lead ECG placement cannot be overstated. In emergency settings, such as evaluating a patient for an acute ST-elevation myocardial infarction (STEMI), errors in lead placement can lead to the false interpretation of anatomical location or severity of an infarct. For example, V1 and V2 electrodes placed too high can result in an inverted P-wave or QRS complex that might be misread as pathology. Similarly, shifting the precordial leads horizontally can dramatically change the R-wave progression, leading to false-positive or false-negative results regarding ventricular hypertrophy.
Furthermore, serial ECGs are often used to monitor the evolution of cardiac conditions. If the electrodes are placed in different spots for each subsequent ECG, the resulting variations in the tracing may be interpreted as clinical changes in the patient's heart rather than simple technical inconsistency. Establishing a consistent routine—marking sites on the skin with a pen in long-term monitoring situations, for instance—greatly enhances the reliability of the data over time.
By adhering to these standardized protocols for lead positioning and maintaining a high standard of skin preparation, clinicians provide the most accurate diagnostic information possible. This precision directly influences therapeutic decisions, ensuring that life-saving interventions are administered correctly and promptly based on the heart’s actual electrical activity. While technology continues to advance, the human element of careful, anatomical placement remains the bedrock of cardiac rhythm analysis and diagnostic success.
