In the expansive world of electronics, few components are as fundamental, ubiquitous, and essential as the 1K Ohm resistor. Whether you are a seasoned electrical engineer designing complex circuits or a hobbyist tinkering with your first Arduino project, the 1K resistor serves as a cornerstone of component design. It acts as a reliable building block, helping to control current flow, divide voltages, and protect sensitive components from being overwhelmed by excess electricity. Understanding how this specific resistance value functions is vital for anyone looking to master the basics of circuit design and component integration.
The Anatomy of a 1K Ohm Resistor

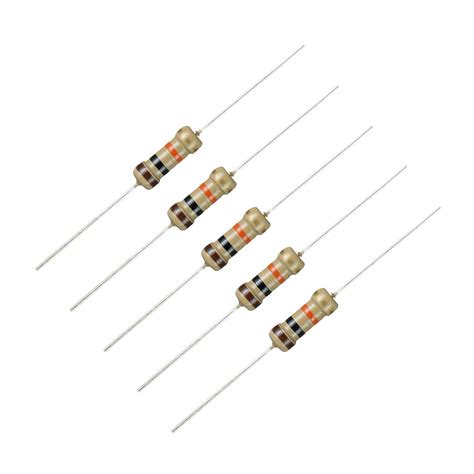

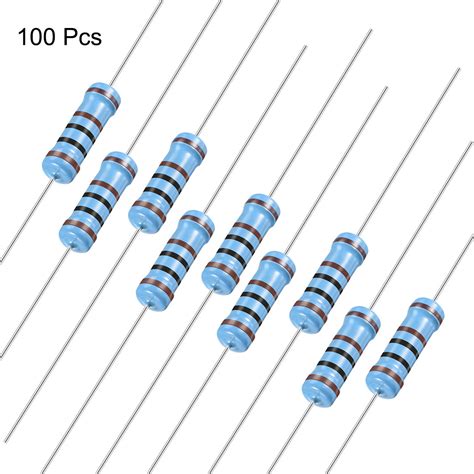

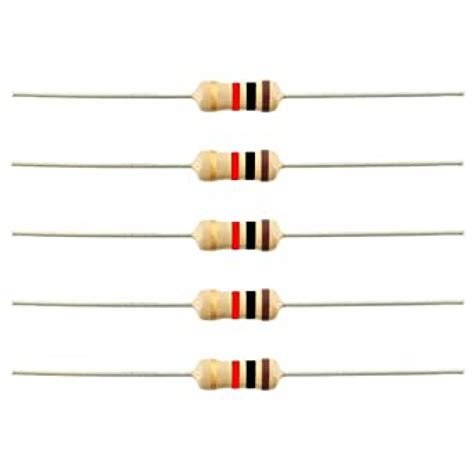

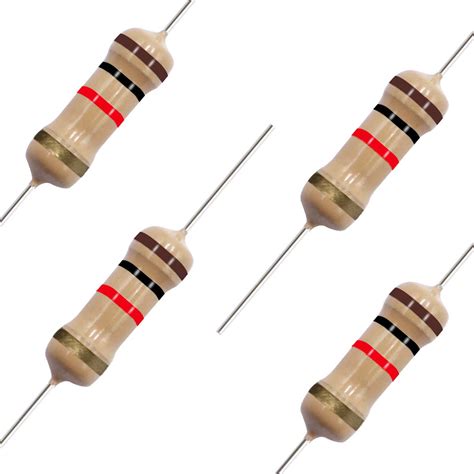

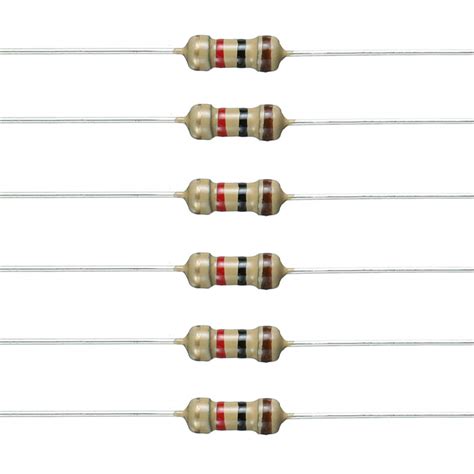

At its core, a 1K Ohm resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. The "1K" designation refers to its resistance value of 1,000 ohms. In the standard color-coding system used for carbon film and metal film resistors, you can identify this component by its specific color bands. For a 4-band resistor, the colors are typically Brown (1), Black (0), Red (multiplier x100), and a gold or silver band representing the tolerance.
Resistance is measured in Ohms (Ω), named after the German physicist Georg Simon Ohm. By providing exactly 1,000 ohms of resistance, this component follows Ohm’s Law (V=IR), allowing engineers to calculate precisely how much current will flow through a specific branch of a circuit when a known voltage is applied. This predictability makes it the "go-to" component for pull-up and pull-down configurations in digital logic systems.
Common Applications in Modern Electronics
Because of its balanced value—being neither too high to block current entirely nor too low to allow a short circuit—the 1K Ohm resistor is utilized in a variety of standard applications. It finds its way into almost every consumer electronic device, from breadboard prototypes to mass-produced printed circuit boards (PCBs).
- LED Current Limiting: In circuits where a 5V power source is connected to an LED, a 1K resistor can prevent the LED from burning out by limiting the forward current to a safe level.
- Pull-Up/Pull-Down Resistors: Digital microcontrollers, such as the Raspberry Pi or Arduino, often require a stable state on their input pins. A 1K resistor can hold a pin at a steady high or low voltage until a switch is pressed.
- Voltage Dividers: By pairing two resistors, you can drop a supply voltage to a specific level required by a sensor or another module.
- Signal Conditioning: They are frequently used in audio and data lines to minimize noise and impedance mismatches.
Understanding Power Ratings and Tolerance

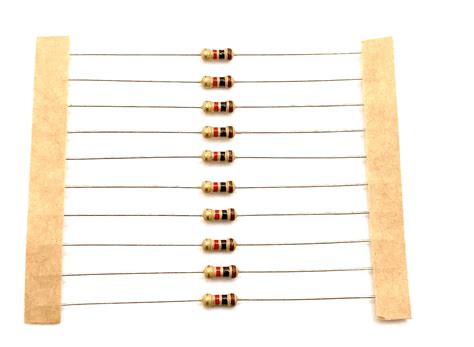

When selecting a 1K Ohm resistor, it is not just the resistance value that matters; you must also consider the physical specifications. Most hobbyist-grade resistors come in a 1/4 watt (0.25W) power rating. This indicates the maximum amount of heat the component can dissipate before it sustains damage.
| Specification | Typical Value |
|---|---|
| Resistance | 1,000 Ohms (1KΩ) |
| Power Rating | 0.25 Watts (1/4W) |
| Tolerance | ±1% or ±5% |
| Material | Metal Film / Carbon Film |
⚠️ Note: Always calculate the power dissipation of your resistor using the formula P = V²/R or P = I²R to ensure the resistor's power rating is sufficient for your specific application.
Testing and Verifying Resistance

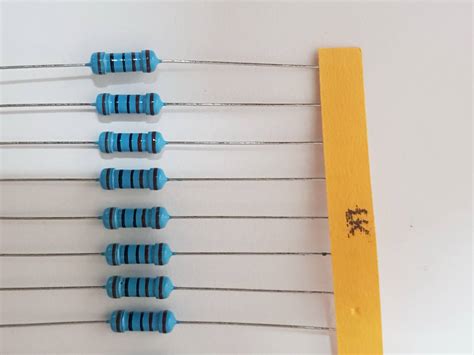

To ensure your circuit behaves as expected, it is best practice to verify your resistors using a multimeter before soldering them into place. Even though manufacturing processes are highly advanced, environmental factors or manufacturing defects can occasionally lead to values slightly outside the specified tolerance. Set your multimeter to the resistance (Ω) setting, preferably at a range higher than 1K, and touch the probes to the resistor leads. A high-quality resistor will display a value very close to 1,000 ohms.
If you are working on a breadboard, it is helpful to keep a small inventory of these components organized. Because they are so frequently used, having a dedicated slot in your component organizer for 1K resistors will save significant time during the prototyping phase.
Selecting the Right Type for Your Project

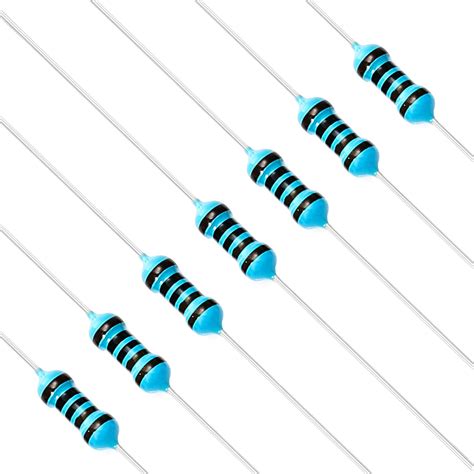

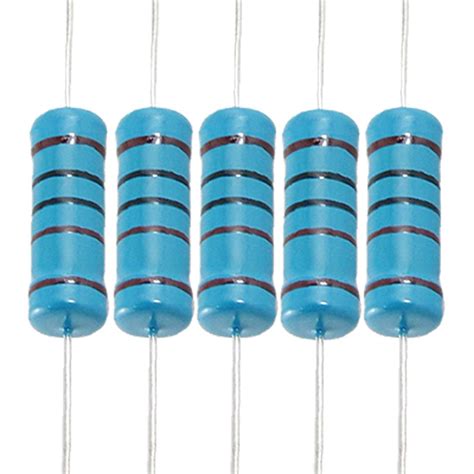

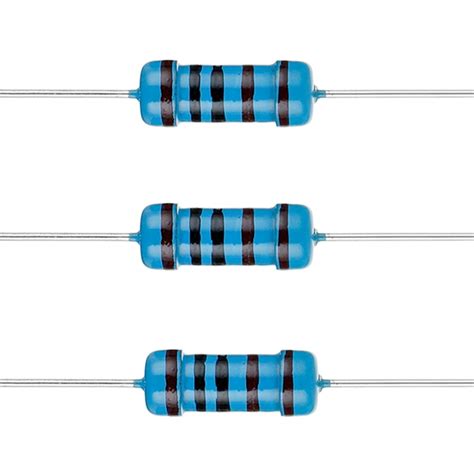

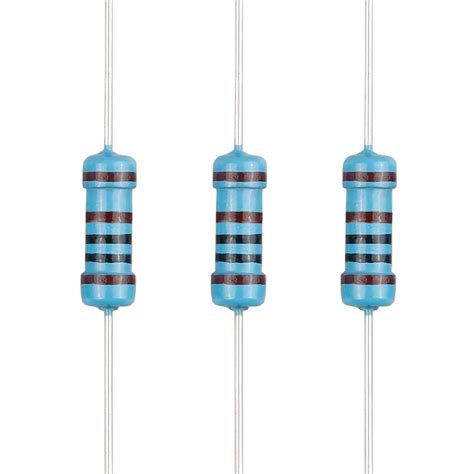

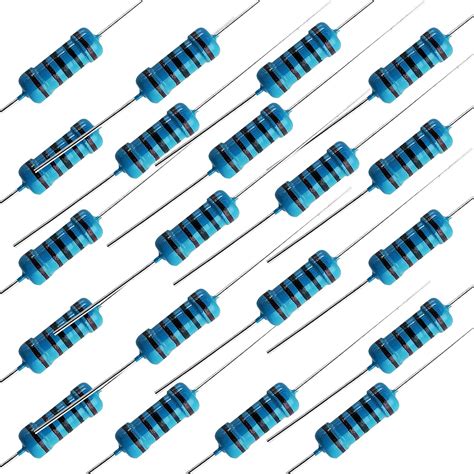

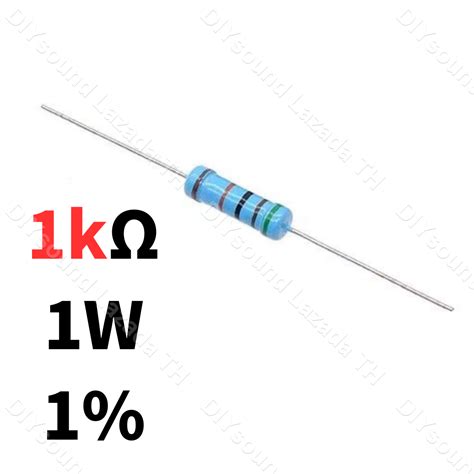

When shopping for components, you will often encounter two primary types: Carbon Film and Metal Film. Carbon film resistors are generally cheaper and suitable for basic non-critical applications. However, Metal Film resistors offer higher precision, better stability over temperature changes, and lower electrical noise. For professional instrumentation or audio equipment, always opt for the 1% tolerance metal film variety.
⚠️ Note: Never use a resistor with a lower power rating than what your circuit calculations suggest, as this can lead to overheating, component failure, or even fire hazards in high-current scenarios.
By mastering the use of the 1K Ohm resistor, you unlock the ability to manage electrical current with precision, ensuring that your circuits are both functional and safe. This component’s reliability, combined with its versatility in digital and analog applications, solidifies its status as a must-have item in any electronics toolkit. Whether you are limiting current for an indicator light, stabilizing a digital logic signal, or creating a voltage divider for sensor data, the humble 1K resistor performs its job with unwavering consistency. As you continue your journey in electronics, remember that the most complex systems are often just thousands of simple, well-chosen components working in harmony. Relying on high-quality components and proper calculation techniques will always lead to more robust and long-lasting electrical designs.
