The 2 barrel carburetor remains a cornerstone of classic automotive engineering, serving as a reliable bridge between the simplicity of a single-barrel unit and the high-performance complexity of a four-barrel setup. For decades, it has been the go-to choice for enthusiasts looking to balance fuel efficiency with respectable power output. Understanding how this component functions, how to maintain it, and how to troubleshoot common issues can be the difference between a vehicle that runs smoothly and one that struggles to keep a steady idle. Whether you are restoring a vintage muscle car or simply maintaining a classic daily driver, mastering the mechanics of this carburetor type is a rewarding skill for any automotive DIY enthusiast.
Understanding the Basics of a 2 Barrel Carburetor

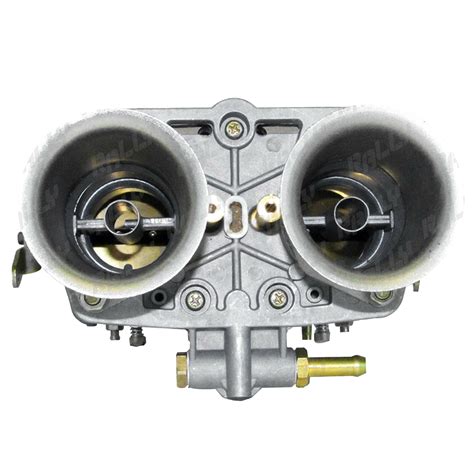

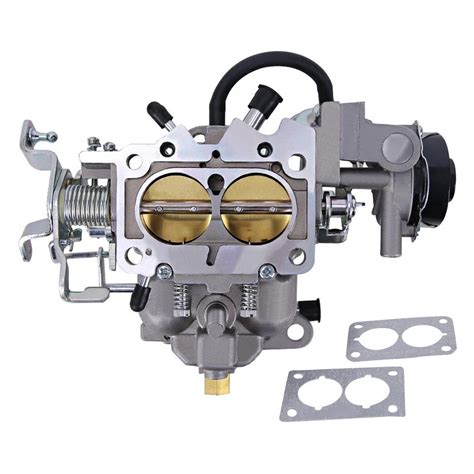

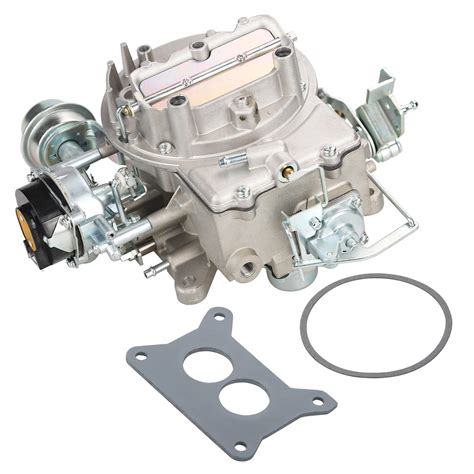

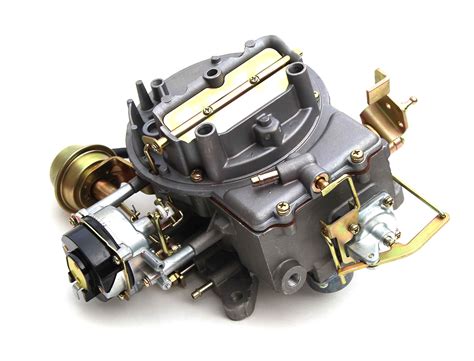

At its core, a 2 barrel carburetor features two distinct venturi bores, each equipped with its own butterfly valve (throttle plate). Unlike a single-barrel carburetor, which provides a uniform air-fuel mixture across the entire engine operating range, the two-barrel design allows for better atomization and air intake management. By splitting the incoming air into two paths, the carburetor can maintain a higher air velocity, which helps to pull more fuel from the jets at lower engine speeds.
The mechanism operates through a combination of vacuum pressure and mechanical linkage. As you press the gas pedal, you open the throttle plates, allowing more air to flow through the venturis. This creates a pressure drop, pulling fuel from the float bowl and through the main discharge nozzles. The result is a precise air-fuel mixture that is ignited within the combustion chamber, providing the power required to drive the wheels.
Key Components and Their Functions
To effectively troubleshoot or tune your unit, you must be familiar with the internal anatomy of the device. Below are the primary parts that dictate performance:
- Float Bowl: Stores a reserve of fuel at a constant level to ensure consistent supply.
- Venturi: A narrowed section of the bore that creates a vacuum to draw fuel into the airflow.
- Throttle Plates: Butterflies that control the amount of air entering the engine.
- Jets: Small, calibrated orifices that meter the amount of fuel entering the stream.
- Accelerator Pump: Provides an extra “squirt” of fuel when the throttle is opened suddenly to prevent stalling.
- Choke Valve: Restricts air at startup to create a richer mixture for cold-engine starts.
Comparison: 2 Barrel vs. 4 Barrel Systems
Many enthusiasts find themselves deciding whether to stick with a dual-bore unit or upgrade to a more complex setup. The table below highlights the practical differences between these two common carburetor styles:
| Feature | 2 Barrel Carburetor | 4 Barrel Carburetor |
|---|---|---|
| Complexity | Low (Easy to tune) | High (Requires experience) |
| Fuel Efficiency | Better for cruising | Lower (Generally) |
| Cost | Affordable | More expensive |
| Performance | Good for daily driving | Superior at high RPMs |
💡 Note: Always ensure that your intake manifold is designed to accept the specific bolt pattern of the carburetor you are installing. A mismatch here will cause vacuum leaks that are difficult to diagnose.
Maintenance and Troubleshooting Tips
A well-maintained 2 barrel carburetor can last for decades, provided it is kept clean and free of varnish buildup. Over time, gasoline additives and impurities can clog the delicate passages inside the unit. If your engine is experiencing rough idling, hesitation during acceleration, or stalling at stoplights, it is time to perform a thorough inspection.
One of the most frequent points of failure is the accelerator pump diaphragm. Because this part involves rubber components, it is susceptible to drying out or cracking, especially if the vehicle sits for extended periods. When the diaphragm fails, the car will "bog down" when you try to accelerate, as there is no extra fuel available to compensate for the rapid increase in air intake.
Another area to focus on is the float level. If the level is set too high, the engine will run excessively rich, leading to carbon buildup on the spark plugs and poor fuel economy. If set too low, the engine may "lean out," potentially causing overheating or pinging under heavy loads.
Steps for a Basic Tune-Up
If your carburetor is acting up, follow these steps to perform a standard check:
- Check the fuel lines for any cracks or signs of leakage.
- Remove the air cleaner and visually inspect the choke to ensure it opens and closes fully.
- Use a carburetor-specific cleaner to spray out the external linkages and clear any debris around the throttle shafts.
- Check the idle mixture screws; gently seat them and back them out about 1.5 turns as a baseline starting point.
- Ensure the fuel filter is clean; a restricted filter is often the hidden culprit behind performance issues.
💡 Note: Never force a stuck idle mixture screw. These are precision-machined parts and can easily snap if excessive torque is applied during adjustment.
Selecting the Right Size
When shopping for a replacement or a performance upgrade, sizing is everything. A 2 barrel carburetor is rated by its “CFM” (Cubic Feet per Minute) capacity. Picking a unit that is too large for your engine will lead to a sluggish response and poor fuel atomization, as the air velocity will be too low to effectively pull fuel through the boosters. Conversely, a unit that is too small will restrict airflow at higher RPMs, “choking” the engine of the oxygen it needs to make power. Always consult your engine displacement and target RPM range when choosing your specific model.
By appreciating the intricacies of the fuel delivery process, you can ensure your classic vehicle remains a joy to drive. Whether you are performing a simple clean-out or a complete rebuild, the focus should remain on cleanliness and precision. Ensuring that every gasket is seated properly and that every passage is free of debris will restore that crisp throttle response that defines a healthy engine. Regular attention to these mechanical components not only preserves the life of the carburetor but also enhances the overall reliability and enjoyment of your driving experience. Through careful observation and logical adjustments, you can keep this essential piece of automotive technology functioning at its peak for many years to come.
