The intersection of additive manufacturing and functional design has opened up a world of possibilities for DIY enthusiasts and professionals alike. One of the most practical and rewarding projects you can undertake in your home workshop is creating a 3D Printed Clip Board. While traditional office supplies are often mass-produced using flimsy materials, a custom-designed clipboard offers durability, ergonomic customization, and a touch of personal flair that you simply cannot find in a standard stationery store. Whether you are a student, a warehouse manager, or a creative designer, printing your own office utility allows you to control the thickness, color, and functionality of your gear.
Why Choose a 3D Printed Solution?

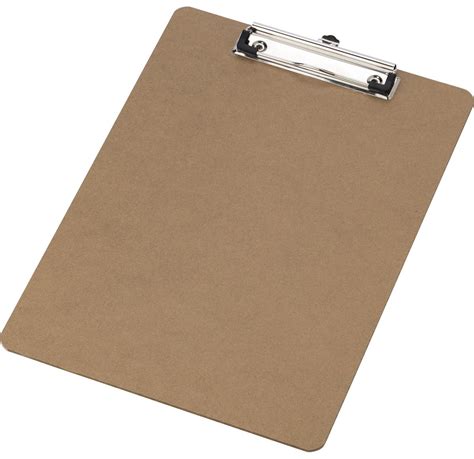

There are several compelling reasons to move away from store-bought office supplies and lean into 3D printing. Most commercial clipboards are made of thin hardboard or low-grade plastic that tends to crack or warp under pressure. By using a 3D Printed Clip Board, you have the advantage of structural integrity. You can adjust the infill density to ensure that your clipboard remains rigid even when pressed against uneven surfaces. Furthermore, 3D printing allows for modular attachments—such as pen holders, smartphone slots, or specialized hooks—that cater specifically to your workflow.
Consider the benefits of customizing your clipboard:
- Durability: Select high-strength filaments like PETG or ABS for long-term usage.
- Ergonomics: Design rounded edges for comfort during long hours of field work.
- Weight Optimization: Use honeycomb infill patterns to reduce weight without sacrificing strength.
- Aesthetics: Match your clipboard color to your company branding or personal style.
Selecting the Best Materials for Your Clipboard
When you embark on the journey of creating a 3D Printed Clip Board, the choice of material is arguably more important than the print settings themselves. Since a clipboard is a tool that experiences constant physical handling, you want a material that balances layer adhesion with impact resistance. PLA is often too brittle for thin, wide prints, while flexible materials might result in a board that is too flimsy to write on effectively.
| Material | Strength | Ideal Use Case |
|---|---|---|
| PETG | High | General purpose, high durability, indoor/outdoor use. |
| ABS | Very High | Work environments with temperature fluctuations. |
| PLA+ | Medium | Desktop use, vibrant colors, aesthetic projects. |
| Carbon Fiber PLA | Very High | Professional settings, sleek matte finish, extreme rigidity. |
⚠️ Note: Always ensure your print bed is perfectly level before starting large, flat prints like a clipboard. A slight warp on the first layer can lead to a bowed board that will not lay flat on your desk.
Design Considerations and Printing Tips
Designing a 3D Printed Clip Board requires balancing surface area with structural stability. Because these prints are essentially large, thin sheets, the biggest challenge you will face is thermal warping. To mitigate this, consider using a brim to ensure the corners do not lift off the print bed during the printing process.
Key design elements to include:
- Reinforced Clips: Do not rely on printed plastic tension for the clip alone. Incorporate a slot for a metal spring or use a bolt-and-nut assembly for the clamp mechanism.
- Texture: Use a textured build plate (PEI sheet) to give your clipboard a professional, matte finish right off the printer.
- Scaling: Ensure your printer volume can accommodate a standard letter or A4 size. If your printer is smaller, design the clipboard in modular, interlocking pieces that can be bonded with high-strength adhesive.
Regarding hardware, you will likely need a spring-loaded metal clip assembly. Many DIY makers salvage these from old, broken clipboards. By printing a custom backer, you can breathe new life into old hardware while creating a custom interface that suits your specific writing needs.
💡 Note: If you are printing large, flat surfaces, increase your bottom layer thickness in your slicer settings to provide extra stability and a smooth base for your paper.
Advanced Customization and Modular Add-ons

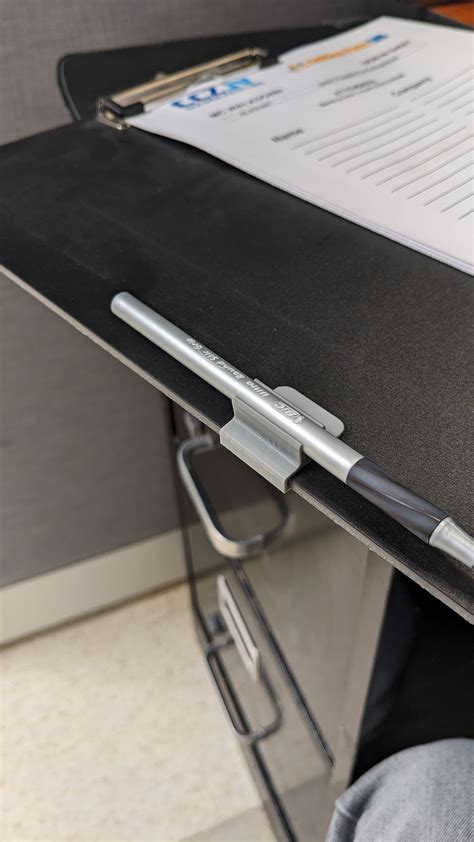

The true power of 3D printing lies in customization. Once you have mastered the basic 3D Printed Clip Board, you can add features that standard clipboards lack. Imagine a clipboard that includes a built-in slot for an iPad, a recess for a magnetic pencil holder, or even a collapsible kickstand for presenting documents during meetings. By integrating these features into your CAD design, you create a tool that is perfectly optimized for your specific career or hobby requirements.

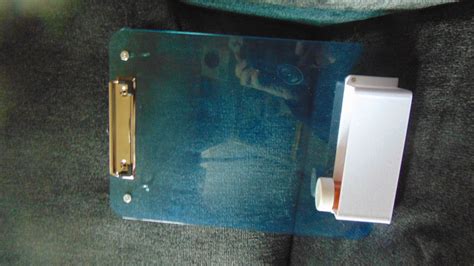

You might consider adding storage compartments on the back of the clipboard. This can house extra pens, business cards, or small pads of sticky notes. Since you are the designer, you can determine the depth and layout of these pockets, ensuring everything you need is within arm's reach. This turns a simple writing surface into a portable mobile workstation.
Post-Processing for a Professional Look
Once your 3D Printed Clip Board finishes printing, the work is not quite over. While a fresh print often looks great, post-processing can elevate it from a "prototype" to a professional office tool. Lightly sanding the surface can remove any minor artifacts and create a uniform finish. If you used ABS filament, a gentle vapor smoothing process can yield a mirror-like finish that looks injection-molded.
If you choose to paint your clipboard, ensure you use a plastic-adhesion primer first. This prevents the paint from peeling or scratching off when you place your pen or pencil down on the surface. Adding a clear coat can also protect the print from oils on your hands, keeping it looking pristine for years to come.
Investing time in creating your own office equipment through 3D printing results in a product that is both personal and highly functional. By focusing on material selection, strategic design features, and careful post-processing, you can produce a 3D Printed Clip Board that exceeds the quality of mass-produced alternatives. These projects not only improve your daily productivity but also showcase the versatility of your 3D printer in a practical, everyday context. As you refine your design, you will likely find even more ways to improve your workspace, proving that the best tools are often the ones we make ourselves.
