The convergence of reverse engineering and additive manufacturing has fundamentally shifted how we prototype, repair, and recreate physical objects. At the heart of this digital transformation is the 3D printing scan, a powerful process that bridges the gap between the physical and virtual worlds. By capturing the precise geometry of a real-world object and converting it into a digital mesh, creators can manipulate, scale, or reproduce items with remarkable accuracy. Whether you are an industrial engineer looking to refine a mechanical part or a hobbyist hoping to preserve a family heirloom, understanding the intricacies of 3D scanning is essential for modern production workflows.
Understanding the Mechanics of 3D Scanning
A 3D printing scan operates by utilizing various technologies—most commonly structured light, laser triangulation, or photogrammetry—to map the surface of an object. Unlike simple photography, which captures color and light, these scanners measure distance and spatial coordinates (X, Y, and Z axes) to build a dense point cloud. This data is subsequently processed into a polygonal mesh, usually in STL or OBJ format, which is the universal language for 3D slicer software.

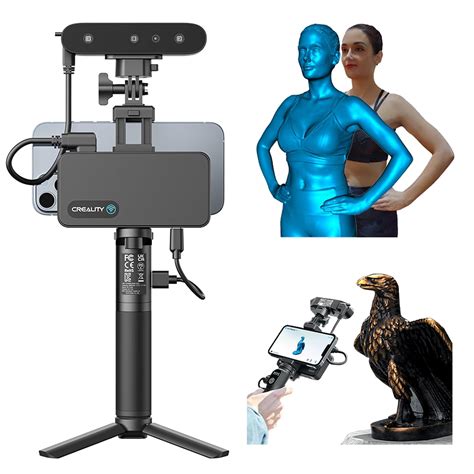

The choice of hardware significantly impacts the fidelity of your 3D model. Entry-level solutions often rely on smartphone-based photogrammetry, while professional-grade scanners use high-intensity lasers to capture microscopic details. Regardless of the hardware, the process follows a specific lifecycle: capture, alignment, fusion, and mesh repair.
The Step-by-Step Workflow for High-Quality Results
Achieving a professional-grade 3D printing scan requires meticulous preparation and a disciplined workflow. Below are the critical steps to ensure your digital model is manifold and ready for the printer:
- Surface Preparation: Objects with glossy, transparent, or dark surfaces can confuse sensors. Use a matte scanning spray to create a uniform, non-reflective surface.
- Environment Control: Ensure consistent lighting and minimize movement around the object to prevent artifacts or ghosting in the scan data.

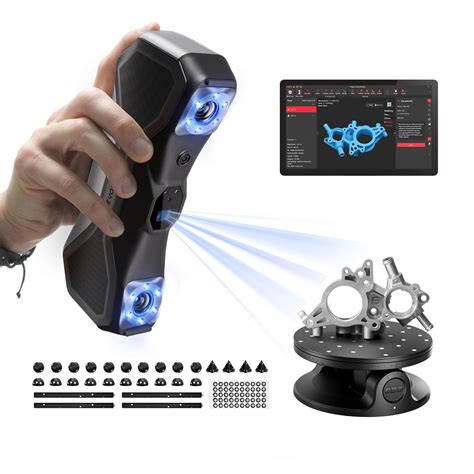

- Registration and Alignment: If the object requires multiple scan angles, use registration targets (adhesive dots) to help the software align overlapping frames seamlessly.
- Mesh Optimization: Once the raw data is captured, use software tools to decimate, smooth, or sharpen the mesh to make it water-tight for 3D printing.
⚠️ Note: Always check for "non-manifold" edges in your final mesh; a scan with holes or intersecting faces will fail to slice correctly in your 3D printing software.
Comparing Common Scanning Technologies
Selecting the right scanning method depends on your budget, the size of the object, and the level of precision required. The table below outlines the trade-offs between the most common methods used in the industry today:
| Technology | Best For | Pros | Cons |
|---|---|---|---|
| Photogrammetry | Large objects/Architecture | Low hardware cost | Time-intensive processing |
| Structured Light | Mechanical parts | High accuracy, fast | Expensive equipment |
| Laser Scanning | Intricate/Detailed surfaces | Precise, works in low light | Requires high processing power |
Software Requirements for Post-Processing
Capturing the data is only half the battle. Once the 3D printing scan is imported into your computer, it often requires significant "cleaning." Software packages vary from automated cloud-based services to manual mesh-editing tools. You will likely need to perform boolean operations to flatten the base, fill gaps where the scanner missed spots, and potentially hollow out the model if it is solid, which saves printing material and time.
Common post-processing tasks include:
- Closing Holes: Using automated "fill" algorithms to seal the geometry.
- Simplification: Reducing the polygon count of massive scan files to make them manageable for your slicer.
- Scaling: Ensuring the digital model matches the real-world measurements required for its intended application.
Common Challenges and How to Overcome Them

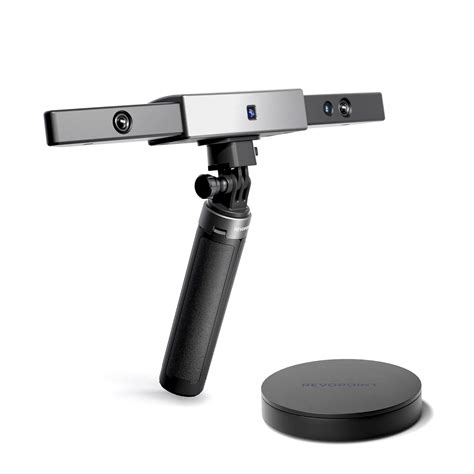

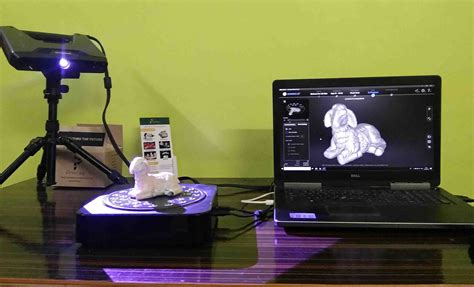

Even with advanced equipment, 3D printing scan projects often encounter difficulties. One of the most common issues is "noise," where stray data points appear around the model due to reflective backgrounds or unstable scanning platforms. To mitigate this, consider using a rotating turntable for smaller parts. This provides a consistent speed and angle, which significantly reduces the need for heavy manual intervention during the alignment phase.
Another challenge is the limitation of line-of-sight. If your scanner cannot see the inside of a cup or the underside of a complex engine block, it cannot record the data. In these cases, you must create partial scans from multiple orientations and fuse them together within your software. Patience during the scanning phase pays off tenfold when you avoid hours of tedious digital sculpting later.
💡 Note: Investing in a high-quality turntable often yields better results than upgrading to an expensive scanner, as stability is the most critical factor in scan alignment.
Future Trends in Scanning and Printing
As AI-integrated scanning software becomes more prevalent, the barrier to entry for high-fidelity scanning is rapidly dropping. We are moving toward a future where "one-click" scanning will allow even beginners to generate accurate digital replicas of complex objects. This will likely revolutionize consumer markets, allowing for easy replacement of broken parts by scanning the original and printing a high-strength replacement using carbon-fiber-filled filaments or metal powders.
Furthermore, the integration of real-time scan-to-print pipelines will shorten the product development cycle even further. Imagine scanning a custom ergonomic grip for a tool and having a ready-to-print file generated in seconds—this is the trajectory of current research in machine vision and geometric processing.
The ability to create a digital twin through a 3D printing scan is a game-changer for makers, engineers, and restorers alike. By mastering the hardware, refining your post-processing techniques, and understanding the physical requirements of your specific printer, you unlock nearly limitless creative possibilities. While the process may seem intimidating at first, the learning curve is rewarded with the power to bridge physical artifacts with digital precision. As scanning technologies continue to evolve, staying updated on the best practices for alignment, mesh repair, and material compatibility will ensure that your projects remain both functional and aesthetically pleasing. Embrace these tools to transform how you view objects in your daily life, effectively turning your home or shop into a center for rapid prototyping and endless reproduction.
