Understanding the electrical infrastructure of your home or workshop is essential for safety, efficiency, and project success. Whether you are installing a new electric vehicle charging station, a heavy-duty workshop welder, or a sub-panel for a detached garage, the 50 Amp Breaker Box serves as a critical junction point for high-load power distribution. This component is designed to handle significant electrical currents, ensuring that your circuits remain protected from overloads that could lead to dangerous overheating or fires. By familiarizing yourself with the nuances of these systems, you can ensure your home remains safe while providing the high-amperage power needed for modern convenience.
Why You Need a 50 Amp Breaker Box
A 50 Amp circuit is considered a high-amperage configuration. Most standard household outlets are rated for 15 or 20 amps, which are sufficient for lighting, kitchen appliances, and computers. However, when you introduce equipment that demands a higher power draw, a 50 Amp Breaker Box becomes necessary. This specific amperage rating is the industry standard for several high-power applications, including:
- Electric Vehicle (EV) Chargers: Most Level 2 chargers require a dedicated 50-amp circuit to function at peak charging speeds.
- Electric Stoves and Ranges: Many modern kitchen appliances rely on 240V, 50-amp power to heat elements rapidly.
- Large Workshop Equipment: Heavy-duty welders, industrial air compressors, and table saws often require the steady flow provided by this setup.

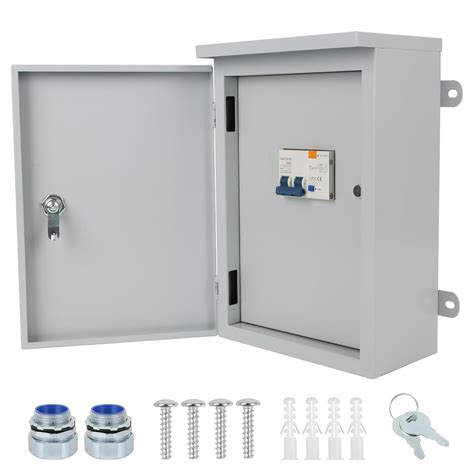

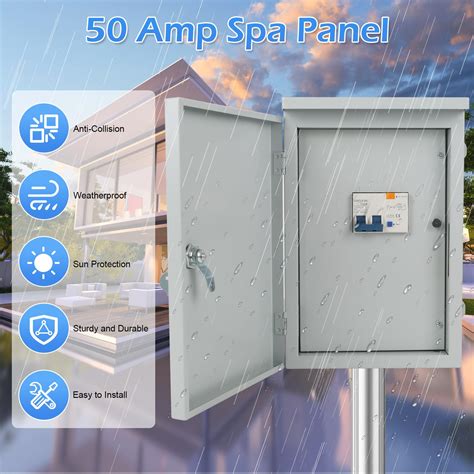

- Hot Tubs and Spas: Outdoor heating systems almost universally require a dedicated 50-amp sub-panel for safe operation near water.
Using the correct breaker box ensures that your electrical panel doesn't trip unnecessarily while also providing a "safety valve" that prevents wires from melting if a short circuit occurs.
Selecting the Right Equipment
Not all breaker boxes are created equal. When shopping for a 50 Amp Breaker Box, you must consider the specific requirements of your main service panel and the environment where the box will be installed. You should evaluate the following criteria before making a purchase:
- Enclosure Rating: If you are installing the box outdoors or in a garage, ensure the unit is rated NEMA 3R or higher to resist rain, moisture, and dust.
- Breaker Compatibility: Ensure the sub-panel is compatible with the brand of breakers you plan to use. Most experts recommend using the same brand of breaker as the panel to ensure a secure, code-compliant connection.
- Amperage Capacity: While you need a 50-amp circuit, check if the panel itself has a higher main lug rating (e.g., 60A or 100A) to allow for future expansion if needed.
⚠️ Note: Always verify your local building codes before starting any electrical project. Some jurisdictions require a licensed electrician to pull permits for any work involving sub-panels or high-amperage circuits.
Comparison of Common Breaker Specifications
Understanding the difference between breaker types is vital for your installation. The table below outlines the standard characteristics of breakers typically housed within or feeding a 50 Amp system.
| Breaker Type | Amperage | Voltage | Typical Use |
|---|---|---|---|
| Single Pole | 15-20A | 120V | Lighting, outlets |

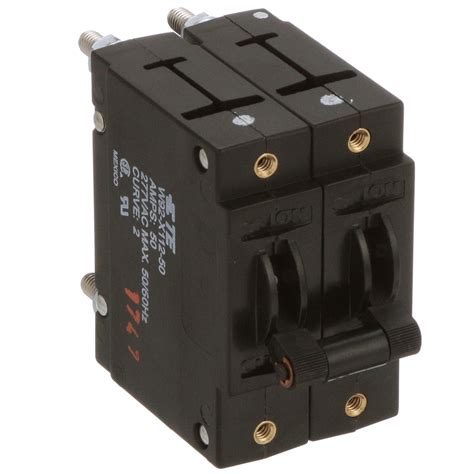

| Double Pole | 50A | 240V | EV chargers, stoves |
| GFCI Breaker | 50A | 240V | Spas, outdoor gear |
Installation Safety Guidelines
Working with a 50 Amp Breaker Box involves handling 240-volt power, which is significantly more dangerous than standard household electricity. If you are not a licensed professional, the risks of electrical shock or fire are high. Always adhere to these fundamental safety practices:
- Turn Off the Main Power: Before opening your main electrical panel, switch off the main breaker to ensure no current is flowing into the area you are working on.
- Use a Voltage Tester: Never rely on guesswork. Use a non-contact voltage tester to confirm that the wires are dead before touching them.
- Gauge Your Wiring: For a 50-amp circuit, you generally need 6-gauge copper wire. Using wire that is too thin will cause the conductor to overheat, potentially leading to a fire.
- Torque Connections Properly: Loose connections are a leading cause of electrical fires. Ensure all terminal screws are tightened to the manufacturer's specifications using a torque screwdriver.
💡 Note: A 50-amp breaker must be paired with 6-gauge wire (specifically 6/3 Romex or similar depending on the run length) to handle the electrical load safely over distance.
Maintaining Your Electrical Panel
Even after a successful installation, your 50 Amp Breaker Box requires periodic maintenance to ensure longevity. Over time, the heat cycles of electrical components can cause lugs to loosen slightly. Once a year, it is a good idea to inspect the panel for signs of damage or overheating. Look for discoloration on the plastic casing of the breakers or any signs of melting around the wire terminals. If you notice a burning smell near the panel, shut off the power immediately and consult a professional electrician.
By investing in high-quality components and adhering to rigorous safety standards, you create a reliable electrical environment that supports your high-demand tools and appliances. Always remember that when in doubt, the advice of a certified professional is worth the investment, as it guarantees both your personal safety and the long-term integrity of your home’s electrical system. Staying informed about your panel’s capabilities and monitoring its health will provide you with peace of mind while powering your most demanding electrical projects for years to come.
