When it comes to high-performance automotive engineering, few power plants command as much respect and awe as the 632 Bbc. The "Big Block Chevy" platform has long been the gold standard for drag racers, street-strip enthusiasts, and those who simply crave raw, unadulterated horsepower. By taking the iconic Chevrolet big-block architecture and pushing it to its displacement limits, engine builders have created a monster that delivers massive torque and relentless acceleration. Whether you are building a dedicated track car or a high-end pro-touring machine, understanding what goes into a 632-cubic-inch beast is essential for achieving reliable, record-breaking performance.

Table of Contents

The Anatomy of a 632 Bbc Build

The foundation of any 632 Bbc build begins with an aftermarket tall-deck block. Because of the sheer displacement, a factory GM production block simply cannot handle the stresses involved. Builders typically rely on high-strength ductile iron or aluminum blocks designed specifically for extra-large bores and long strokes. The goal is to provide a rigid, stable environment for the rotating assembly to operate at high RPMs without catastrophic failure.

The rotating assembly is where the magic happens. A 632 typically utilizes a 4.750-inch stroke crankshaft paired with a 4.600-inch bore. These components must be forged from high-quality steel to withstand the immense combustion pressures. When selecting parts for your build, consider the following critical components:

Also read: Cooper Discoverer Road+Trail At

Forged Pistons: Necessary to handle high compression ratios and potential nitrous or blower applications.
Connecting Rods: H-beam or I-beam forged rods are mandatory to prevent stretching or snapping under load.
Main Bearings: High-load performance bearings are required to maintain oil film thickness at high power levels.
Ring Pack: Modern low-friction ring technology helps in heat dissipation and sealing high-pressure cylinders.

Maximizing Airflow with Cylinder Heads

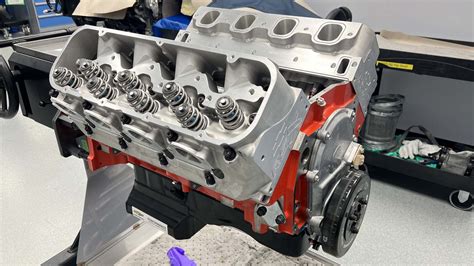

You cannot make massive power with a 632 Bbc if the engine cannot breathe. The cylinder heads are arguably the most important decision you will make. With 632 cubic inches, the engine is an absolute air pump; therefore, small-port heads will choke your potential instantly. Most builders opt for large-runner, high-flow CNC-ported aluminum heads that offer excellent thermal efficiency and superior flow characteristics.

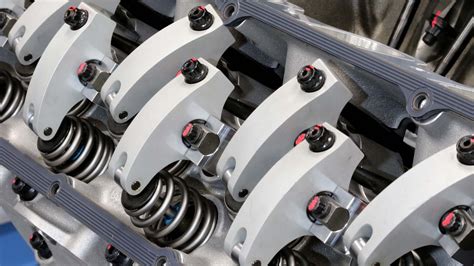

The selection of the valvetrain is equally critical. Given the aggressive lobe profiles often found on the camshafts required for a 632, you need a robust setup to prevent valve float. Titanium valves, high-pressure springs, and stud girdles are common sights in a professional build. Below is a general comparison of intake flow requirements based on engine goals:

Application	Est. Horsepower	Suggested Head Flow (CFM)
Street/Strip	750 - 850 HP	380 - 400 CFM
Drag Racing	900 - 1050 HP	420 - 450 CFM
Pro-Level/Competition	1100+ HP	460+ CFM

⚠️ Note: Always verify your valve-to-piston clearance whenever you change your camshaft profile or deck height. Even a slight mistake in calculation can lead to catastrophic internal contact during high-RPM operation.

The Importance of Fuel and Ignition Systems

Feeding a 632 Bbc requires a massive amount of fuel. Whether you choose a high-capacity carburetor or a sophisticated electronic fuel injection (EFI) system, consistency is key. A lean condition in an engine of this displacement will result in a detonated piston almost immediately. Ensure your fuel system includes:

High-Flow Fuel Pump: Rated for your total horsepower output plus a safety margin.
Large Diameter Fuel Lines: To minimize pressure drop at high fuel flow rates.
Regulated Fuel Pressure: A stable fuel pressure regulator to maintain consistent air-fuel ratios.

On the ignition side, you need a system capable of firing a spark strong enough to jump the gap under high cylinder pressures. Multiple-spark discharge (MSD) ignition boxes and high-output coils are standard equipment. Timing control is also vital; the 632 Bbc usually prefers a specific timing curve to maximize torque down low while avoiding detonation at peak power.

Maintenance and Long-Term Durability

Operating a high-displacement engine like the 632 Bbc comes with a responsibility for frequent maintenance. Because these engines often operate in extreme conditions, standard service intervals do not apply. Oil changes should be performed much sooner than in a daily driver, especially if you are using high-zinc oil additives to protect flat-tappet or high-pressure valve spring setups.

Choosing the Right Camshaft Profile

The camshaft is the “brain” of your 632 Bbc. It determines exactly when your valves open and close, dictating the power band of the engine. For a street-driven 632, you want a hydraulic roller cam that offers a balance of idle quality and power. For pure drag racing, a solid roller cam with a very aggressive duration and lift is the standard.

When selecting your cam, consider your vehicle's weight, transmission type, and rear-end gear ratio. A 632 engine generates so much torque that it can easily overpower the tires. A custom-ground camshaft can help manage that power, providing a smoother transition through the RPM range rather than an abrupt "hit" that creates wheel spin.
