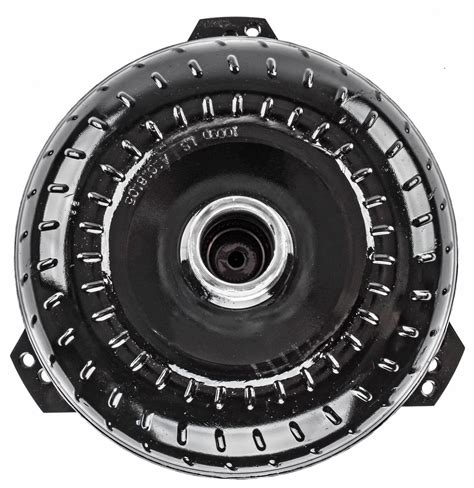

The 700R4 torque converter remains one of the most critical components for enthusiasts looking to optimize the performance of their classic General Motors transmissions. Originally introduced in the early 1980s, the 700R4, often referred to as the 4L60, revolutionized the industry by introducing an overdrive gear and a lock-up torque converter mechanism. Understanding how this component interacts with your engine is the key to unlocking better fuel efficiency, reduced transmission temperatures, and improved launch characteristics for your street rod, truck, or muscle car.
Understanding the Role of the Torque Converter
At its core, a torque converter is a fluid coupling that allows the engine to spin independently of the transmission. When you are stopped at a red light, the torque converter permits the engine to turn while the transmission input shaft remains stationary. As the engine RPM increases, fluid is forced against the turbine, eventually transferring power to the transmission. The 700R4 torque converter is specifically engineered to handle the unique torque multiplication needs of GM’s four-speed overdrive units, providing a balance between smooth city driving and high-speed highway cruising.
Key Features of the 700R4 Converter
Unlike older non-lockup transmissions, the 700R4 was designed with a lock-up feature. This is a game-changer for highway driving. Once the vehicle reaches a certain speed, the converter clutches engage, mechanically locking the engine directly to the transmission. This eliminates the “slippage” inherent in fluid couplings, which saves energy and prevents the transmission fluid from overheating.
- Lock-up Clutch: Significantly improves fuel economy during highway travel.
- Stall Speed Options: Available in various configurations to match engine camshaft profiles.
- Fluid Dynamics: Engineered to dissipate heat more efficiently than stock units.
- Input Spline Count: Usually features a 27-spline or 30-spline input shaft depending on the model year.
Choosing the Right Stall Speed
One of the most frequent questions mechanics receive involves selecting the correct stall speed. The “stall” is the maximum RPM the engine can reach while the transmission is in gear with the brakes applied. Choosing the right 700R4 torque converter depends entirely on your engine’s power band.
| Stall Speed Range | Best Application |
|---|---|
| Stock (1600-1800 RPM) | Daily drivers, towing, and mild street engines. |
| Mild Performance (2200-2500 RPM) | Modified cams, street performance, and improved acceleration. |
| High Performance (2800+ RPM) | Aggressive race cams, high-compression engines, and drag racing. |
⚠️ Note: Always match your converter's stall speed to your specific camshaft's power range. Using a stall speed that is too high for a mild engine will cause excessive heat and poor fuel economy.
Installation Best Practices
Installing a new 700R4 torque converter requires precision. If the converter is not seated properly before the transmission is bolted to the engine, you risk catastrophic damage to the front pump. Follow these essential steps to ensure a long service life:
- Pre-fill the converter: Add about a quart of high-quality ATF into the converter before installation to avoid a dry start.
- Listen for the clicks: You should feel and hear at least two distinct “clicks” as the converter splines engage with the input shaft and the pump gears.
- Check clearance: Once installed, measure the gap between the converter tabs and the flexplate. It should be roughly 1⁄8 inch.
- Check for freedom of movement: The converter must spin freely by hand once pushed back toward the transmission; if it binds, it is not seated.
💡 Note: Never use the bellhousing bolts to "pull" the transmission into the engine block. If there is a gap, your converter is not fully seated, and forcing it will crush the front pump rotor.
Upgrading for Heavy Duty Performance
If you are pushing more than 350 horsepower or planning on towing heavy loads, a standard-issue replacement might not suffice. High-performance units feature reinforced internals, such as furnace-brazed fins and heavy-duty lock-up clutches. These upgrades prevent the 700R4 torque converter from ballooning under high pressure, a common issue when aggressive torque meets a factory-style converter. Investing in a unit with a carbon-fiber lock-up clutch lining ensures that the converter can handle the abuse of increased power without slipping or disintegrating.
Maintenance and Fluid Care
The health of your torque converter is inextricably linked to the quality of your transmission fluid. Heat is the primary enemy of the 700R4. Because the converter generates the majority of the transmission’s heat, maintaining a robust cooling system is mandatory. Ensure you have an external transmission cooler installed, especially if you drive in high-traffic areas or warm climates. Regularly checking your fluid for a “burnt” smell or discolored appearance can help you identify converter issues before they lead to a complete transmission rebuild.
Ultimately, selecting and maintaining the correct 700R4 torque converter is the most important decision for ensuring the longevity and performance of your transmission. By choosing the appropriate stall speed for your specific engine, verifying proper seating during installation, and keeping the fluid cool, you can ensure smooth shifting and efficient power transfer for years to come. Whether you are building a reliable daily driver or a weekend street machine, investing the time to get these details right will pay dividends in both performance and peace of mind on the open road.
