Maintaining a comfortable climate inside your vehicle is not just a luxury; it is a necessity for safe and enjoyable driving, especially during the sweltering summer months. At the heart of your car's climate control system lies the refrigerant cycle, a complex process that relies heavily on pressure to function correctly. This is where A C Gauges become an indispensable tool for both professional mechanics and DIY automotive enthusiasts. By measuring the high and low-side pressures within the system, these gauges provide a window into the health of your compressor, condenser, and expansion valve, allowing you to diagnose issues before they lead to costly component failures.
Understanding the Importance of A C Gauges
The primary function of a manifold gauge set is to interpret the physical state of the refrigerant within your vehicle. Automotive air conditioning systems operate under extreme pressure differentials, and if these pressures stray outside the manufacturer's specified ranges, the system will fail to cool effectively. A C Gauges act as the diagnostic bridge between a malfunctioning system and a comfortable cabin.
When you connect a manifold set to your vehicle, you are essentially monitoring the "heartbeat" of the cooling cycle. The blue gauge typically measures the low-side pressure (the suction side), while the red gauge monitors the high-side pressure (the discharge side). Understanding these readings is critical because:
- Preventing Overcharging: Adding too much refrigerant can cause the compressor to seize or blow out seals.
- Identifying Leaks: Fluctuating or rapidly dropping pressure readings often indicate a breach in the lines or the evaporator.
- Compressor Health: If the high-side pressure is too low, it often points to a worn-out compressor that cannot build sufficient force.
- Moisture Contamination: Unexpected pressure readings can indicate that moisture has entered the system, which can freeze and block the expansion valve.
Components of a Standard Gauge Set

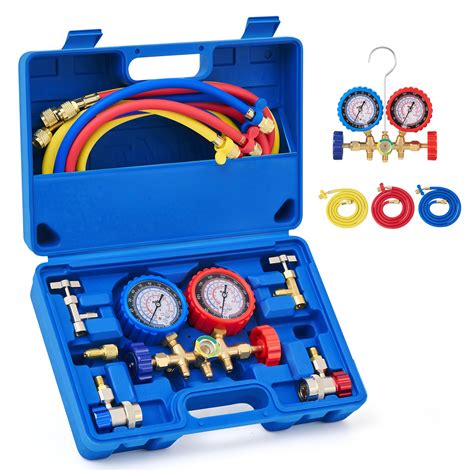

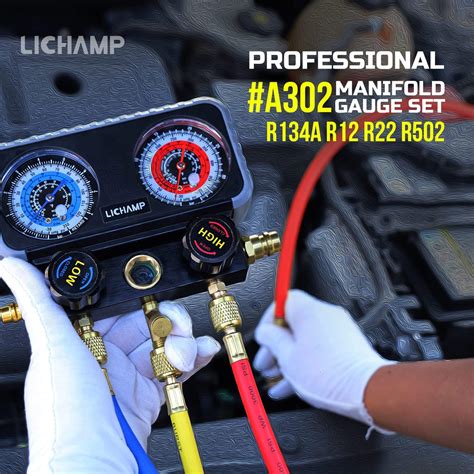

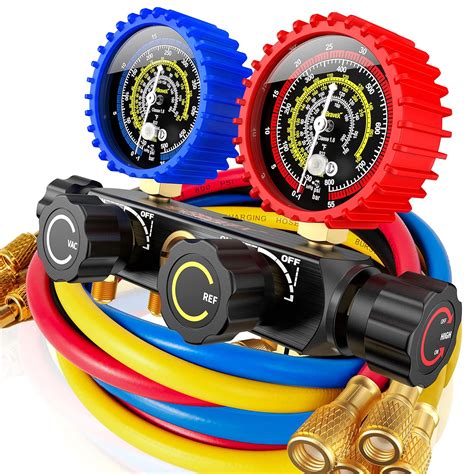

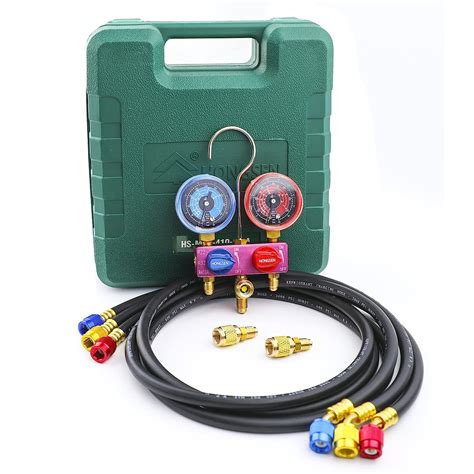

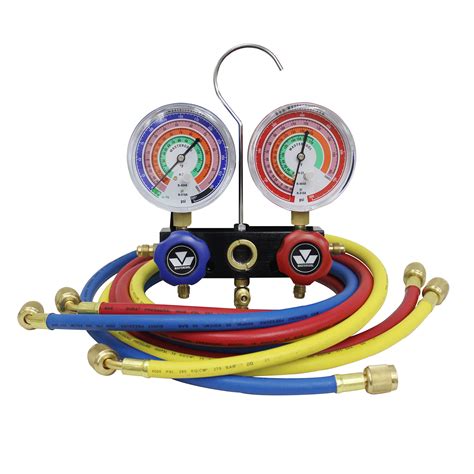

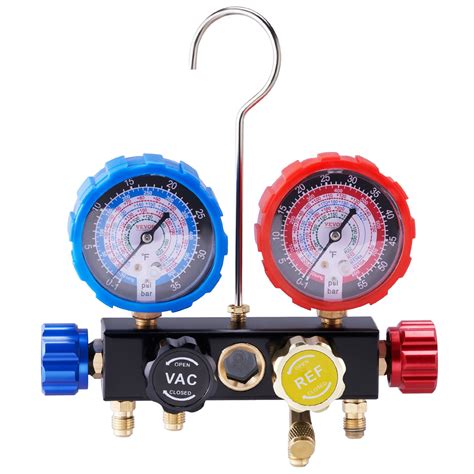

To effectively use A C Gauges, you must first familiarize yourself with the equipment. A standard set consists of several interconnected parts designed to handle high-pressure refrigerants safely. Recognizing these components is the first step toward accurate diagnostics.
| Component | Description |
|---|---|
| Manifold Block | The central hub that connects the hoses, gauges, and the refrigerant source. |

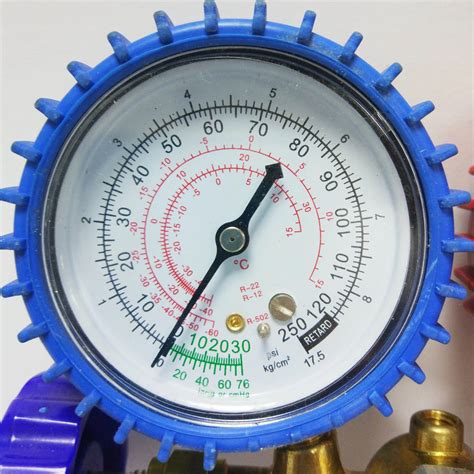

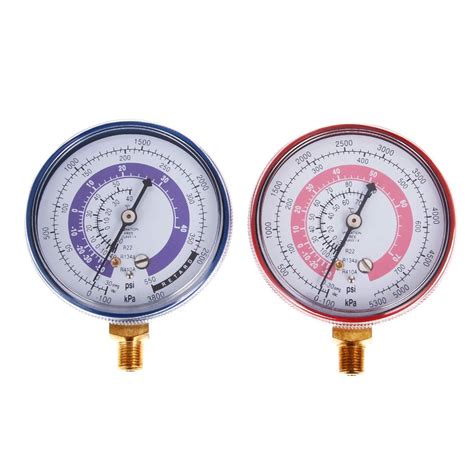

| Low-Side Gauge (Blue) | Measures suction pressure; typically operates in the 25-50 PSI range. |
| High-Side Gauge (Red) | Measures discharge pressure; operates at much higher pressures (up to 300+ PSI). |
| Service Hoses | Usually color-coded (Blue, Red, and Yellow) to prevent cross-contamination. |
Step-by-Step Diagnostic Procedures
Before you begin, always wear protective eyewear and gloves, as refrigerant can cause severe cold burns upon contact. Once you are geared up, follow these steps to accurately read your A C Gauges:
- Locate the Service Ports: Consult your owner’s manual to find the high and low-side ports. Note that they are sized differently to prevent incorrect connection.
- Connect the Hoses: Attach the blue hose to the low-side service port and the red hose to the high-side port. Ensure they are tightened to prevent leaks.
- Start the Vehicle: Turn on the engine, set the air conditioner to "Max Cool," and keep the fan on high.
- Observe the Gauges: Allow the system to stabilize for a few minutes before taking a reading. The compressor should be engaged (the center pulley spinning).
⚠️ Note: If the compressor does not engage, do not attempt to add refrigerant, as the system likely has a safety switch preventing operation due to low pressure or an electrical fault.
Interpreting Common Gauge Readings
The beauty of using professional-grade A C Gauges is that they tell a story through numbers. Here is how to interpret typical scenarios you might encounter:
- Low readings on both sides: This typically indicates that your system is low on refrigerant, likely due to a slow leak.
- High-side pressure too high: This can be caused by air in the system, a cooling fan that isn't working, or a blockage in the condenser.
- Low-side pressure is too high: This often suggests that the compressor is failing or there is an issue with the expansion valve (or orifice tube).
Maintenance Tips for Your Diagnostic Tools
Because these instruments deal with precision measurements, their upkeep is paramount. If your gauges fall out of calibration, you risk misdiagnosing your vehicle's air conditioning system, which can lead to unnecessary repairs or, worse, damaged components. Always store your A C Gauges in a clean, dry case away from extreme heat or cold. After every use, bleed the remaining refrigerant out of the hoses to ensure they don't degrade internally. Additionally, periodically check the rubber gaskets inside the hose couplers; if they are cracked or brittle, replace them immediately, as they are a common source of leaks during the diagnostic process.
Mastering the use of A C Gauges transforms the way you approach automotive climate control maintenance. By moving beyond guesswork and relying on hard data, you save time, money, and frustration. Whether you are dealing with a simple recharge or troubleshooting a more complex failure, these gauges remain your most reliable partner in the garage. Always remember to prioritize safety by following manufacturer specifications and local regulations regarding refrigerant handling. With a solid understanding of how these pressure readings translate into mechanical reality, you are well-equipped to keep your vehicle’s interior cool and comfortable regardless of the temperature outside.
