Achieving the perfect look often comes down to the smallest details, and when it comes to tailoring or mechanical assembly, the concept of An Fitting is paramount. Whether you are dealing with high-performance automotive hoses, custom hydraulic systems, or precision garment tailoring, understanding the nuances of a proper fit ensures longevity, safety, and aesthetic appeal. Many enthusiasts overlook the importance of the initial measurement process, leading to costly mistakes that could have been avoided with a more methodical approach to the connection or alteration process.
The Fundamentals of An Fitting

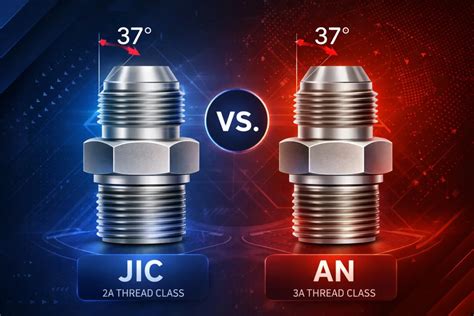

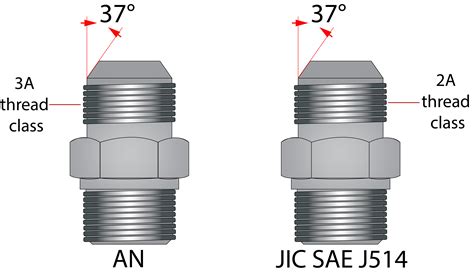

At its core, An Fitting refers to a specific standard of sizing used to ensure that two components marry together seamlessly. Originating from military and aerospace applications, these fittings were designed to provide a leak-proof seal under extreme pressure. In the automotive world, AN stands for "Army-Navy," and these fittings are the gold standard for fuel lines, oil cooling systems, and brake assemblies. Unlike standard hardware store connections, an AN fitting utilizes a 37-degree flare, which requires precision to seat correctly.
When you are working with these components, the goal is to eliminate any potential for vibration-induced leaks or mechanical failure. The process begins with selecting the correct material—usually aluminum for lightweight applications or stainless steel for high-corrosion environments. Proper assembly is not just about tightening a nut; it is about ensuring the internal surfaces are free of debris and that the threads are lubricated to prevent galling.
Choosing the Right Components
Selecting the right parts for your project is the first step in successful installation. You should always cross-reference your hose material with the fitting type to ensure compatibility. For instance, using a Teflon-lined hose with a rubber-hose fitting will result in immediate failure. Always prioritize quality over cost, as a cheap fitting can lead to catastrophic failure during operation.
- Measure Twice: Always use professional-grade calipers to verify the outside diameter (OD) and inside diameter (ID).
- Material Matching: Ensure the fitting material matches the application (e.g., steel for extreme pressure, aluminum for weight reduction).
- Thread Pitch Check: Never force a connection if the threads do not engage smoothly by hand; this is a sign of cross-threading.
| AN Size | Hose ID (Approx) | Primary Use Case |
|---|---|---|
| -4 | 1/4 inch | Nitrous lines, gauge feeds |
| -6 | 3/8 inch | Fuel supply, oil lines |
| -8 | 1/2 inch | Oil coolers, transmission lines |
| -10 | 5/8 inch | Heavy-duty oil flow, return lines |
⚠️ Note: Always apply a small amount of assembly lubricant to the threads of your An Fitting before tightening to prevent the aluminum from seizing, a process commonly known as galling.
Best Practices for Installation
Once you have gathered your materials, the installation process requires a steady hand and the right tools. Using adjustable wrenches is often discouraged because they can slip and damage the finish. Instead, use specific aluminum wrenches designed for the hex size of your fitting. This ensures that the torque is applied evenly and the cosmetic finish remains intact.
Start by cutting your hose squarely. A ragged cut will prevent the fitting from seating properly, which creates a point of failure. Once cut, clean the interior of the hose thoroughly. Even microscopic rubber particles can clog injectors or damage sensitive engine components. Insert the hose into the fitting, and tighten the collar until the assembly is secure but not over-tightened. Over-tightening can crack the flare or deform the O-ring, leading to leaks rather than preventing them.
Maintaining Your Connections
Routine inspection is the hallmark of a professional installation. Even the most perfect An Fitting can loosen over time due to thermal expansion or vibration. Set up a schedule to check your systems every few thousand miles or at the beginning of each operating season. Look for signs of "weeping," which is a light coating of fluid around the connection point. This is an early warning sign that the seal may need tightening or that the hose material is degrading.
In high-vibration environments, consider using safety wire. Safety wire prevents the nut from backing off even if the mechanical pressure fluctuates. This is a standard practice in aviation and professional motorsports, and it provides a great deal of peace of mind for those running high-performance equipment on the street.
💡 Note: Do not use Teflon tape on AN flared fittings. These fittings create a mechanical seal via the 37-degree flare, and thread tape will interfere with the seating and potentially contaminate your fluid system.
Troubleshooting Common Issues
If you encounter a leak, the first step is to identify the source. Often, a leak at the base of the nut means the flare wasn't seated correctly. If the leak is between the hose and the fitting, the hose may not have been cut square or the socket wasn't tightened enough. Avoid the temptation to "crank down" on the nut until it stops leaking if the fit is already tight. It is safer to disassemble the connection, inspect the flare for nicks or debris, and reassemble carefully.
Keep a small kit of spare O-rings and backup gaskets if your specific AN setup utilizes them. These are relatively inexpensive and are the most common points of failure in complex fluid management systems. Having the right tools on hand, such as a specialized hose cutter and a selection of aluminum wrenches, will make the process of troubleshooting significantly faster and much less frustrating.
Mastering the art of the perfect connection is a journey of precision and patience. By focusing on the quality of your materials, the accuracy of your measurements, and the strict adherence to assembly guidelines, you can ensure that your systems remain robust and reliable. Whether you are upgrading your vehicle for better performance or maintaining industrial machinery, the principles of proper assembly remain universal. Always prioritize safety, take your time during the preparation phase, and do not hesitate to re-verify your work. Taking these steps will result in a professional-grade setup that stands the test of time, giving you the confidence that your systems are optimized for performance and efficiency.
