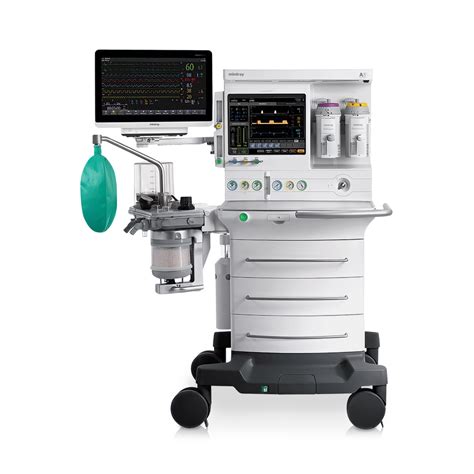

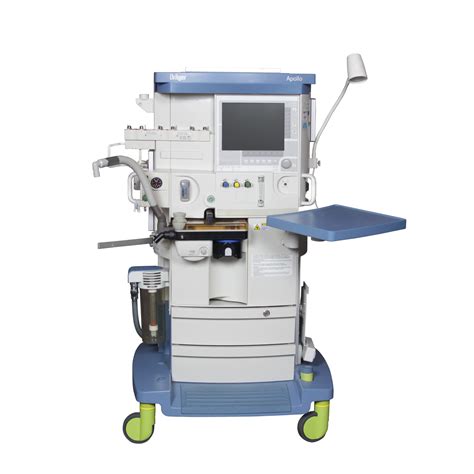

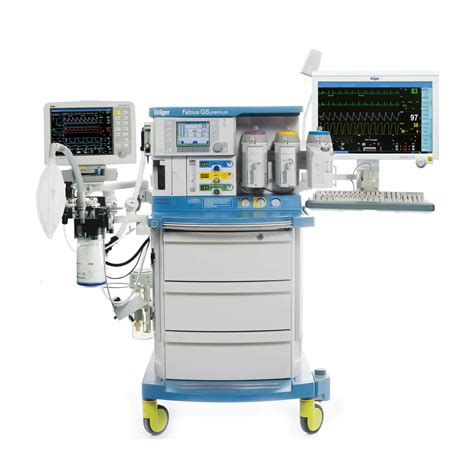

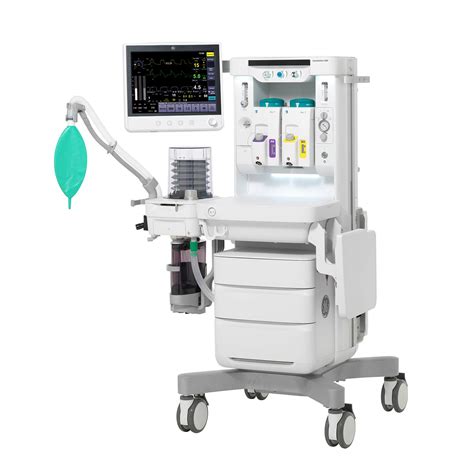

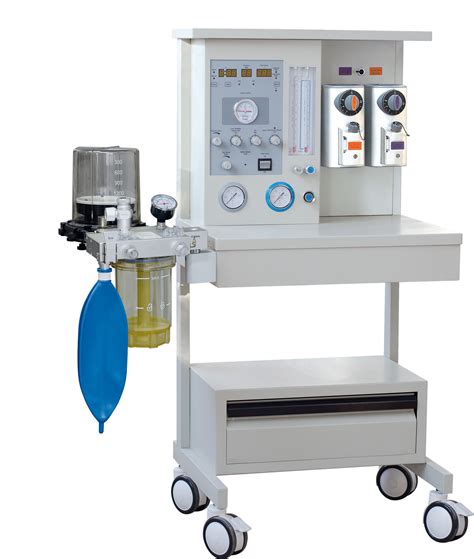

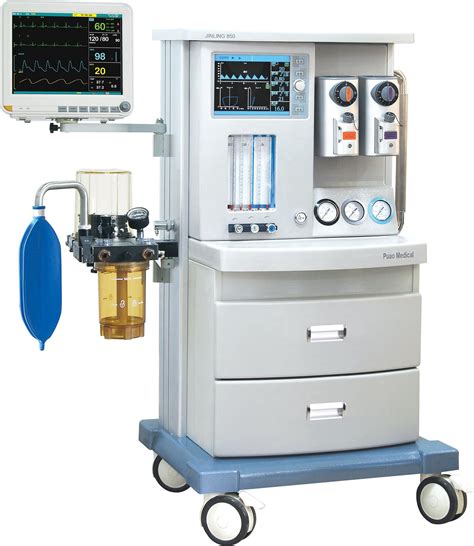

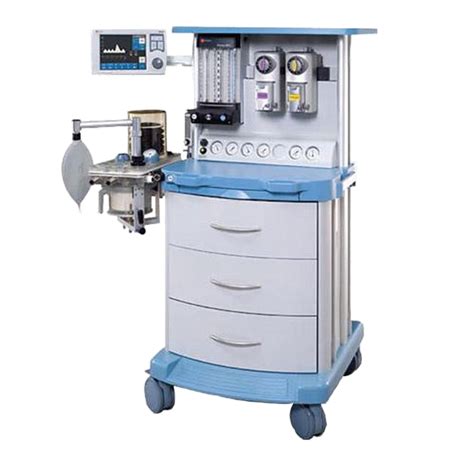

The anesthesia machine stands as the cornerstone of modern surgical medicine, acting as the primary interface between the patient and the life-sustaining gases required for surgery. Its primary function is to deliver a precise, controlled mixture of oxygen, nitrous oxide, and volatile anesthetic agents to ensure the patient remains unconscious, pain-free, and hemodynamically stable throughout complex procedures. Because of the critical nature of its task, understanding the anatomy, safety features, and maintenance protocols of this complex piece of medical equipment is essential for anesthesiologists, nurse anesthetists, and biomedical engineering technicians alike.
The Core Components of an Anesthesia Machine
Every modern anesthesia machine is designed around a pneumatic system that moves gases from their source, through precise delivery devices, and into the patient's breathing circuit. While manufacturers offer various models with unique digital interfaces, the fundamental architecture remains consistent across the industry.
- High-Pressure System: This includes the gas cylinders (oxygen, nitrous oxide, and air) attached to the back of the machine. It utilizes pressure regulators to reduce high cylinder pressures to a constant working pressure.
- Intermediate-Pressure System: This receives gas from the central hospital pipeline or the aforementioned regulators. It includes the oxygen flush valve, the fail-safe mechanisms, and the second-stage regulators.
- Low-Pressure System: This is the area beyond the flow control valves. It encompasses the flowmeters, the vaporizers, and the common gas outlet where the mixture heads toward the patient.
Understanding Vaporizers and Gas Delivery
The anesthesia machine is uniquely defined by its ability to convert liquid volatile anesthetics into vapor. Vaporizers are precision-engineered devices that add a controlled concentration of anesthetic vapor to the fresh gas flow. Modern, agent-specific vaporizers are typically "out-of-circuit," meaning they are located upstream from the breathing circuit to prevent dangerous fluctuations in delivery. These devices are temperature-compensated and pressure-compensated, ensuring that the concentration delivered remains stable regardless of flow rates or environmental changes.
| Component | Primary Function | Safety Mechanism |
|---|---|---|
| Flowmeters | Measure and control gas flow | Hypoxic guard systems |
| Vaporizer | Volatilize liquid anesthetic | Interlock systems |
| Breathing Circuit | Deliver gas and remove CO2 | Adjustable Pressure Limiting (APL) valve |
Safety Features: The Hypoxic Guard and Fail-Safe Mechanisms
Patient safety is the absolute priority when engineering an anesthesia machine. The most critical risk during general anesthesia is the delivery of a hypoxic mixture (insufficient oxygen). To combat this, modern machines are equipped with mechanical or electronic "hypoxic guard" systems. These systems physically or software-link the nitrous oxide and oxygen flow control valves, ensuring that a minimum oxygen concentration—typically 25%—is always maintained regardless of how high the nitrous oxide flow is dialed.
Furthermore, the "fail-safe" valve is designed to trigger if the oxygen supply pressure drops significantly. In such a scenario, the machine will automatically shut off or proportionally reduce the flow of other gases to ensure the patient is not ventilated with purely inert gas.
⚠️ Note: Always perform a thorough pre-use checkout of the machine using the standardized guidelines provided by the facility, regardless of how frequently the machine is used during the day.
Ventilation Modes and Patient Monitoring
While historically, the anesthesia machine was a simple delivery tool, today it functions as a highly sophisticated intensive care ventilator. Modern workstations offer multiple ventilation modes to accommodate a wide variety of surgical needs, including:
- Volume Control Ventilation (VCV): Delivers a set tidal volume at a constant flow rate.
- Pressure Control Ventilation (PCV): Delivers a set inspiratory pressure to protect the patient’s lungs from barotrauma.
- Synchronized Intermittent Mandatory Ventilation (SIMV): Allows the patient to take spontaneous breaths between machine-delivered cycles.
Integrated monitors are now standard, providing real-time data on fraction of inspired oxygen (FiO2), end-tidal CO2 (EtCO2), and the concentration of anesthetic agents. This data allows for precise titration of drugs, minimizing the risk of anesthetic overdose and reducing recovery times for patients post-surgery.
Maintenance and Calibration Requirements
An anesthesia machine is a precision instrument that requires periodic calibration and rigorous maintenance schedules. Over time, the internal sensors for oxygen and CO2 can drift, leading to inaccurate readings. Additionally, the rubber seals within the breathing circuit and the soda lime canister (used for CO2 absorption) must be inspected regularly to prevent gas leaks and ensure efficient carbon dioxide scrubbing.
Biomedical engineers generally perform deep-system diagnostic tests on a quarterly basis. These tests involve checking the internal pressure sensors, validating the alarm systems, and confirming that the electronic ventilator is synchronized correctly with the manual ventilation controls. Consistent documentation of these maintenance checks is not only a regulatory requirement but a vital safeguard for every patient in the operating room.
💡 Note: Ensure that the soda lime in the CO2 absorber is changed according to the color-change indicator or the manufacturer’s suggested hour limit to prevent the rebreathing of carbon dioxide.
The Evolution of Modern Anesthesia Workstations
The shift toward digital integration has turned the traditional anesthesia machine into a "workstation." These systems now communicate directly with electronic medical records (EMR), allowing for automated charting of vital signs and gas concentrations. This integration reduces the administrative burden on the anesthesia provider, allowing for increased vigilance and focus on the patient’s clinical status. As the industry moves forward, we expect to see even more advanced automation in anesthetic depth monitoring and automated drug delivery systems, further refining the safety profile of these life-saving machines.
In summary, the anesthesia machine serves as the essential hub of the operating room, blending sophisticated fluid dynamics, precise electronic monitoring, and rigorous safety protocols. By understanding the mechanical intricacies of the gas delivery system, the importance of integrated safety features like the hypoxic guard, and the necessity of regular maintenance, medical professionals can ensure the highest standard of patient care. As these machines continue to evolve with new digital capabilities and improved ventilation modes, the focus remains firmly on the goal of providing safe, efficient, and personalized anesthesia, ensuring that surgical interventions remain as risk-free as possible for patients across the globe.
