Achieving a professional-grade finish on your vehicle requires more than just high-quality paint; it demands the right equipment, specifically a reliable auto paint gun. Whether you are a seasoned body shop technician or a dedicated DIY enthusiast looking to restore a classic, the tool you choose to atomize your coating will directly impact the final look of the clear coat or base coat. Understanding the mechanics, settings, and maintenance of your spray gun is the foundational step toward eliminating orange peel, drips, and uneven spray patterns that can ruin an otherwise perfect paint job.
Types of Auto Paint Guns Explained
Before purchasing equipment, it is essential to understand the technology behind different sprayers. The market is primarily dominated by three types of systems, each offering unique benefits for different applications.

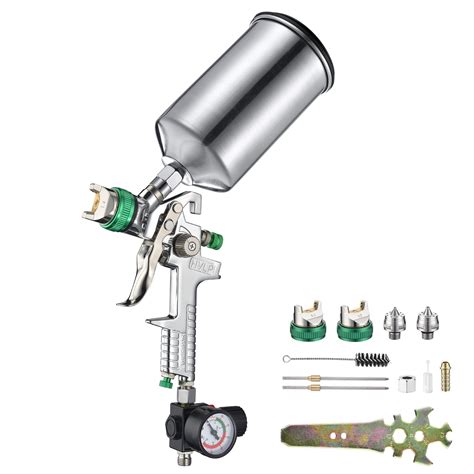

- HVLP (High Volume Low Pressure): This is the most common type used today. It uses a high volume of air at low pressure, which reduces overspray and increases material transfer efficiency. It is excellent for beginners due to its forgiving nature.
- LVLP (Low Volume Low Pressure): These guns provide a faster application speed than HVLP while still maintaining high transfer efficiency. They are ideal for shops that need to move through projects quickly.
- Conventional (High Pressure): These older-style guns provide a very fine atomization but suffer from massive overspray. They are increasingly rare in modern shops due to environmental regulations regarding volatile organic compounds (VOCs).
Selecting the Best Auto Paint Gun for Your Needs
When selecting your auto paint gun, you must consider the size of your air compressor and the specific types of paint you plan to spray. Some nozzles are designed for heavy primers, while others are optimized for thin clear coats.
| Feature | HVLP | LVLP |
|---|---|---|
| Transfer Efficiency | High (65%+) | High (70%+) |
| Air Requirement | High CFM | Low CFM |
| Ease of Use | Excellent for all levels | Requires more experience |
Essential Setup and Preparation
Success starts with proper calibration. If your spray gun is not set up correctly, even the most expensive equipment will produce subpar results. Begin by checking your air pressure at the gun inlet while the trigger is pulled. Most manufacturers specify an optimal inlet pressure (usually between 20-30 PSI for HVLP) to ensure the fluid is properly atomized.
- Viscosity Check: Always thin your paint according to the manufacturer’s technical data sheet (TDS). Using a viscosity cup is the most accurate way to ensure the paint flows correctly through the nozzle.
- Fluid Control: The fluid adjustment knob controls how much paint comes out. Start with it closed and slowly open it while practicing on a test card until you achieve a consistent, wet fan.
- Fan Pattern: Adjust the fan control knob to determine the width of your spray. A wider fan covers more area but requires more overlapping strokes, while a narrow fan is better for tight spots or jambs.
⚠️ Note: Always perform a test spray on a scrap piece of metal or cardboard before moving to the car’s body panels to ensure the spray pattern is uniform and free of spitting.
Techniques for a Flawless Finish
The secret to a mirror-like finish lies in your gun movement. Your auto paint gun should be held at a constant distance—usually 6 to 8 inches—from the surface. It is critical to keep the gun perpendicular to the panel at all times; tilting the gun causes the paint to apply unevenly, leading to stripes or dry spots.
Mastering the "overlap" is equally important. Experts recommend a 50% to 75% overlap on every pass. This ensures that the wet edge of the paint remains consistent across the entire panel, which is vital for metallic paints to lay down correctly without mottling or "tiger striping."
Maintenance and Cleaning Protocols
A paint gun is a precision instrument, and neglecting it will eventually lead to clogging and inconsistent patterns. Immediately after you finish painting, you must disassemble the gun and clean all components that came into contact with the material.
- Flush the Gun: Run the appropriate solvent (usually lacquer thinner or specialized gun cleaner) through the gun until the fluid runs clear.
- Clean the Needle and Nozzle: Use a soft brush and solvent to gently clean the air cap, fluid nozzle, and needle. Never use metal wires to clean the nozzle, as this can scratch the orifice and ruin the spray pattern permanently.
- Lubrication: After cleaning, apply a small amount of non-silicone gun lubricant to the needle spring and packing to keep the trigger action smooth.
⚠️ Note: Always dispose of your cleaning solvents and paint waste according to your local environmental guidelines. Never pour chemical waste down the drain or into the regular trash.
Troubleshooting Common Spray Issues
Even with careful preparation, issues can arise during the painting process. Recognizing the signs early can save you from a complete repaint. If you notice a "heavy center" spray pattern, your air pressure is likely too low, or the fluid output is too high. Conversely, if the paint appears "dry" or sandy on the surface, your air pressure is likely too high, or you are moving the gun too quickly across the surface.
Finally, always ensure your air supply is clean and dry. Moisture in your air lines is the leading cause of "fish-eyes" and craters in the finish. Investing in a high-quality water separator and desiccant filter system is just as important as the gun itself. By keeping your equipment clean, maintaining steady pressure, and practicing consistent technique, you will be well on your way to achieving professional-grade automotive finishes from the comfort of your own garage.
Wrapping up this guide, the journey to mastering auto body painting is paved with patience and attention to detail. Selecting the right auto paint gun that matches your air compressor’s capabilities is the primary hurdle, followed closely by the discipline of consistent cleaning and technique. While the learning curve may seem steep at first, the satisfaction of achieving a factory-quality shine through your own efforts is unmatched. Remember that consistent testing, proper fluid viscosity, and maintaining a clean environment are the variables that separate a good paint job from a spectacular one. Stick to these fundamental practices, continue to refine your movement speed and overlap, and you will undoubtedly see significant improvements in your automotive restoration projects over time.
