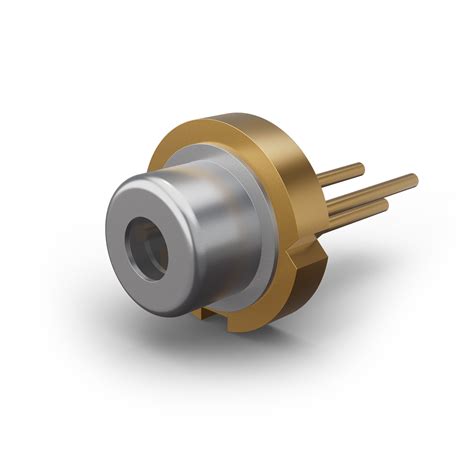

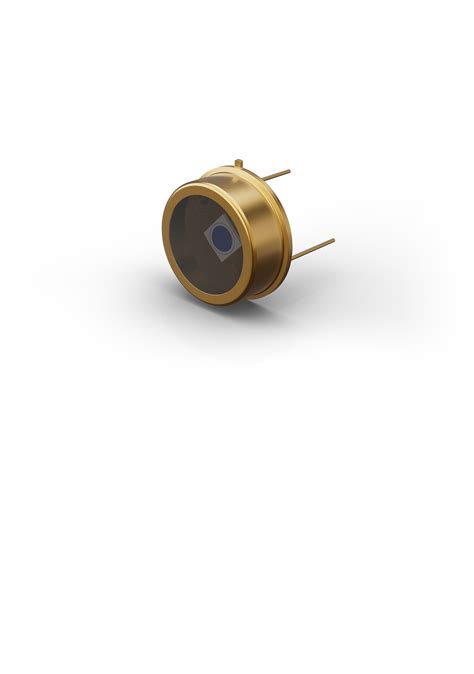

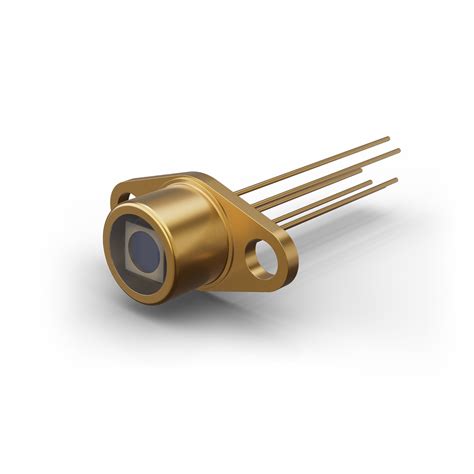

In the expansive realm of optoelectronics, few components bridge the gap between faint light detection and actionable electronic signals as effectively as the Avalanche Photodiode (APD). As modern technology pushes the boundaries of telecommunications, medical imaging, and autonomous navigation, the demand for highly sensitive photodetectors has reached an all-time high. Unlike standard photodiodes, the APD leverages a unique physical phenomenon known as impact ionization, allowing it to amplify signals internally before they reach external circuitry. This characteristic makes it an indispensable tool for engineers tasked with designing systems that require high gain and exceptional speed, even in low-light environments.
Understanding the Physics of an Avalanche Photodiode
At its core, an Avalanche Photodiode is a specialized semiconductor device that operates under a high reverse-bias voltage. This intense electric field accelerates photogenerated electrons through a depletion region, providing them with enough kinetic energy to collide with the crystal lattice. These collisions dislodge additional electrons, creating an electron-hole pair—a process known as impact ionization.

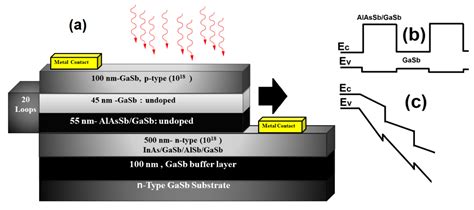

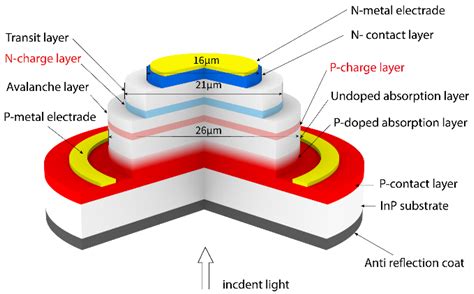

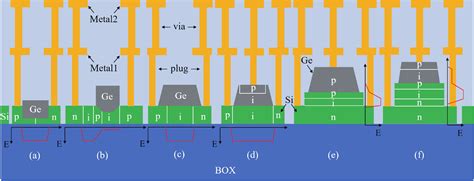

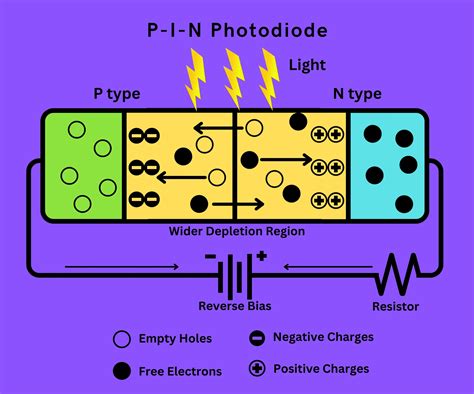

This chain reaction is what gives the device its name: an "avalanche" of charge carriers is generated from a single incident photon. This internal gain mechanism allows for the detection of extremely weak optical signals that would otherwise be lost in the noise floor of standard PIN photodiodes. To maintain this performance, manufacturers carefully engineer the p-n junction structure to ensure a uniform field, preventing premature breakdown and localized defects that could degrade sensitivity.
Key Characteristics and Performance Metrics
When selecting a detector for a specific application, engineers must balance several critical performance metrics. The Avalanche Photodiode stands out for its high sensitivity, but it also presents specific design challenges that must be managed to achieve optimal system performance.
- Internal Gain: The multiplication factor achieved by impact ionization, which can range from dozens to several hundred.
- Quantum Efficiency: The ratio of generated charge carriers to the incident photons, indicating how well the device converts light into electricity.
- Responsivity: The measurement of the device's output current relative to the incident optical power, usually expressed in Amperes per Watt (A/W).

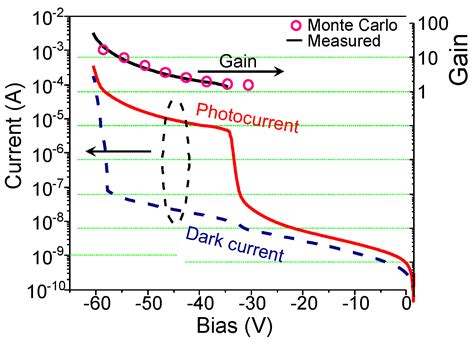

- Dark Current: The small current that flows through the photodiode even when no light is present, which effectively sets the noise floor of the system.
- Response Time: The speed at which the photodiode reacts to rapid light fluctuations, vital for high-speed communication links.
| Feature | Standard Photodiode | Avalanche Photodiode |
|---|---|---|
| Gain | Unity (1) | High (>100) |
| Voltage Requirement | Low | Very High (Reverse Bias) |
| Sensitivity | Moderate | Excellent |
| Noise Characteristics | Low Thermal Noise | Includes Excess Multiplication Noise |
⚠️ Note: Because the gain of an Avalanche Photodiode is highly sensitive to temperature and applied voltage, precision power supply regulation and thermal management are essential for consistent performance.
Applications Across Modern Industries
The versatility of the Avalanche Photodiode has led to its integration into a wide array of sophisticated technological sectors. Its ability to detect individual photons makes it a primary component in systems where sensitivity is the highest priority.
In the field of telecommunications, APDs are frequently used in long-haul fiber optic receivers. As data travels across thousands of miles of cable, signal attenuation becomes a significant factor. The internal gain of the photodiode allows these systems to detect signals that have faded significantly, extending the distance between repeaters and reducing overall infrastructure costs.
LIDAR (Light Detection and Ranging) systems in autonomous vehicles also rely heavily on this technology. By firing short pulses of laser light and measuring the return time, LIDAR creates a 3D map of the environment. Because the reflected light from distant objects is often extremely weak, the high gain of an APD is necessary to distinguish these pulses from ambient background noise.
Furthermore, in medical diagnostics, particularly in Positron Emission Tomography (PET) scanners, these devices are used to detect faint flashes of light produced by scintillators. This precision allows for higher resolution imaging, which is critical for early disease detection and treatment monitoring.
Design Considerations and Best Practices
Integrating an Avalanche Photodiode into a circuit requires more than simply connecting it to a power source. Due to the high-voltage operation, the front-end amplifier design must be robust enough to handle high input voltages while maintaining low noise levels. Here are a few best practices for design:
- Temperature Compensation: Since the breakdown voltage of an APD changes with temperature, implementing a feedback loop with a thermistor or an integrated circuit designed for gain stabilization is recommended.
- Excess Noise Mitigation: While gain is beneficial, it introduces "excess noise" due to the stochastic nature of the avalanche process. Designers should optimize the gain level—often referred to as the optimum gain—to achieve the best Signal-to-Noise Ratio (SNR).
- Bias Voltage Precision: Use low-ripple power supplies to prevent power supply noise from being amplified by the photodiode, which would directly degrade the quality of the signal.
⚠️ Note: Always verify the maximum rated reverse voltage in the datasheet before powering up the device; exceeding this threshold can result in permanent structural damage to the semiconductor junction.
Future Trends and Advancements

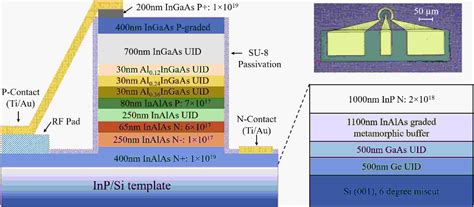

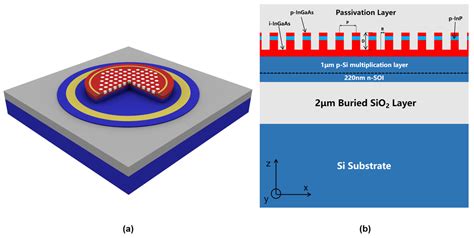

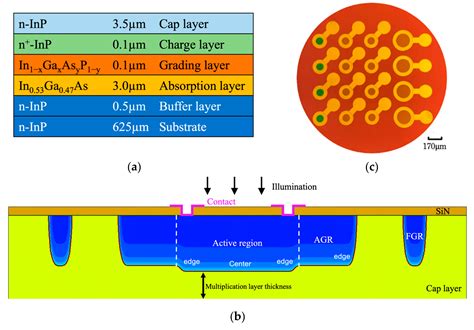

As we look toward the future, the research surrounding the Avalanche Photodiode continues to evolve. Material science plays a significant role in this progress, with scientists experimenting with materials beyond traditional silicon, such as Indium Gallium Arsenide (InGaAs) for infrared sensitivity. These newer materials are helping to extend the operational wavelengths of photodetectors, opening doors for advanced gas sensing, quantum cryptography, and deep-space communication.

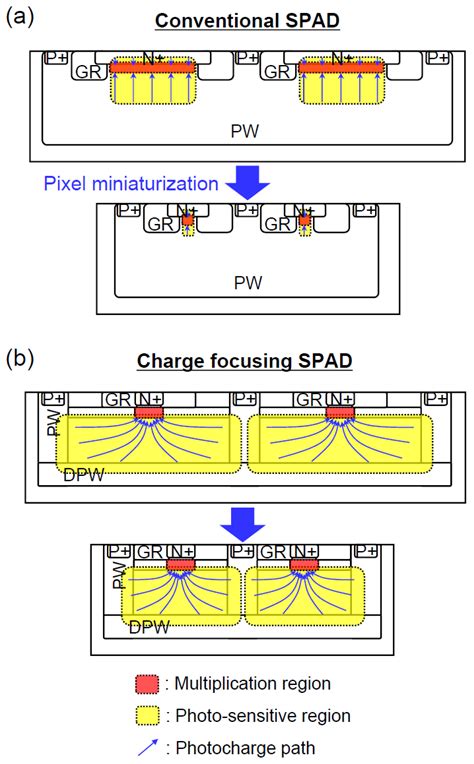

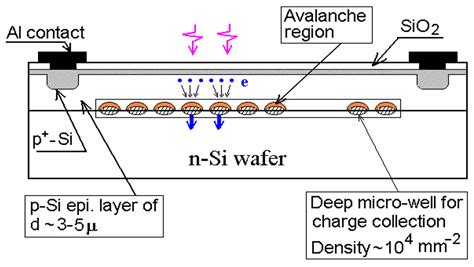

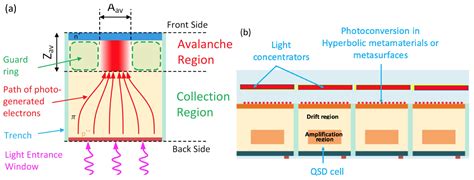

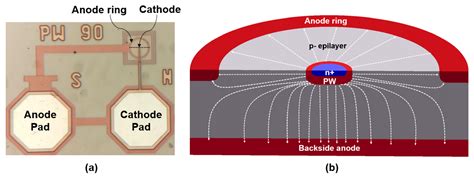

The miniaturization of these sensors is another key trend. As integrated photonics continue to advance, we are seeing the emergence of Silicon Photomultipliers (SiPMs), which are essentially dense arrays of micro-scale APDs operating in "Geiger mode." This innovation allows for even greater sensitivity and faster response times in a much smaller footprint, which is essential for the next generation of portable diagnostic devices and compact LiDAR modules.
By leveraging the inherent physics of impact ionization, the Avalanche Photodiode remains a cornerstone of modern optical engineering. Whether it is enabling high-speed data transmission over intercontinental fiber networks or assisting in the safe navigation of autonomous robots, this component provides the sensitivity required for the most demanding environments. While its operation necessitates a nuanced understanding of voltage and thermal sensitivities, the performance gains offered by its unique multiplication process are unmatched. As the industry moves toward more integrated, high-speed, and ultra-sensitive optical systems, the reliance on high-quality photodetector technology will undoubtedly grow, ensuring that these specialized diodes remain at the center of innovation for years to come.
