Building your own custom battery packs has evolved from a niche hobby into a practical skill for electric vehicle enthusiasts, robotics engineers, and off-grid power users. Whether you are repurposing salvaged 18650 cells for a portable power bank or assembling a high-capacity lithium-ion pack for an e-bike, the integrity of your connections is paramount. This is where the Battery Spot Welder becomes an indispensable tool. Unlike traditional soldering, which subjects heat-sensitive lithium cells to dangerous thermal stress, spot welding provides a fast, localized bond that ensures longevity and safety for your DIY power projects.
Why Use a Battery Spot Welder?
The primary challenge in battery assembly is the chemical sensitivity of lithium-ion cells. Soldering involves heating the battery terminal significantly, which can damage the internal electrolyte and compromise the protection circuitry. A Battery Spot Welder solves this by sending a massive, short-lived pulse of electrical current through the nickel strip and the battery terminal. This fuses the two metals together in milliseconds without transferring significant heat to the core of the cell.
Key advantages of using this specialized equipment include:
- Thermal Safety: Minimal heat transfer protects the internal cell chemistry.
- Mechanical Strength: Spot welds create a metallurgical bond that is vibration-resistant.
- Consistency: Modern welders offer adjustable pulse settings, ensuring every connection is uniform.
- Efficiency: It significantly speeds up the assembly process compared to manual soldering.
Understanding the Mechanics of Spot Welding

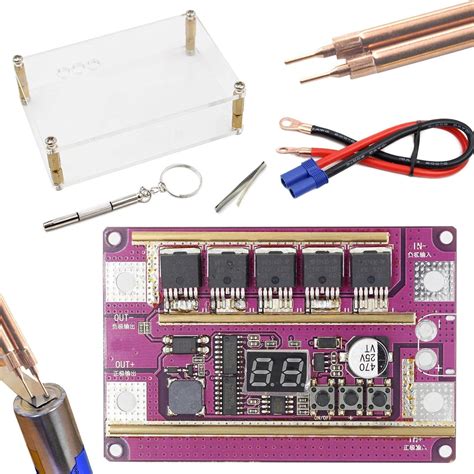

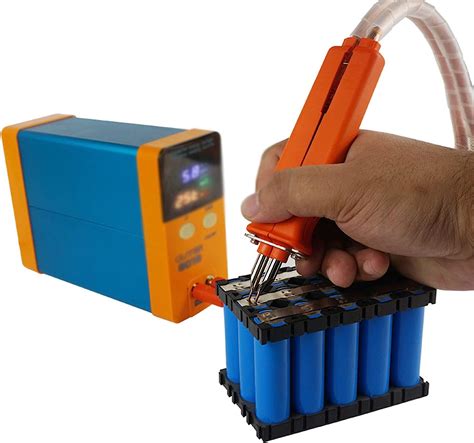

At its core, a Battery Spot Welder functions by creating a low-resistance path for a high-amperage current. The device consists of a transformer (or capacitor bank), a control board to time the pulse, and two copper electrodes. When the electrodes are pressed firmly against the nickel strip sitting on the battery terminal, the circuit closes. The resistance at the contact point generates intense heat, melting the surface metal to create a localized "weld nugget."
To choose the right equipment, you must understand the relationship between current, time, and material thickness. Below is a simplified reference table for typical nickel strip applications:
| Nickel Strip Thickness | Recommended Current/Pulse Setting | Application |
|---|---|---|
| 0.10 mm | Low (10-20ms) | Small packs, low discharge cells |
| 0.15 mm | Medium (20-40ms) | Standard e-bike/scooter batteries |
| 0.20 mm | High (50ms+) | High-power packs, thick busbars |
⚠️ Note: Always perform a "peel test" on scrap cells before starting your final assembly. If the nickel strip rips easily, your pulse settings are likely too low.
Safety Guidelines and Best Practices
Working with high-current electronics requires respect and caution. Even though the output voltage of a Battery Spot Welder is generally low, the current output can exceed hundreds of amps, which can be dangerous if handled incorrectly. Always wear safety glasses to protect against potential sparks or flying debris during the weld process.
Follow these essential steps for a safe operation:
- Surface Preparation: Ensure the battery terminals are clean and free of oxidation or residual glue.
- Pressure Consistency: Apply firm, equal pressure to both electrodes during the firing cycle.
- Avoid Short Circuits: Never allow the two electrodes to touch each other directly, as this can damage the welder's internal components.
- Workspace: Work on a non-conductive, fire-resistant surface away from flammable materials.
💡 Note: Ensure your workspace is well-ventilated to clear any fumes produced during the welding process, especially when using coated nickel strips.
Maintenance and Calibration
To ensure your Battery Spot Welder remains accurate over time, routine maintenance is vital. The copper tips of the electrodes will inevitably oxidize and wear down after repeated use. Periodic cleaning with fine-grit sandpaper or a metal file will restore the contact surface, ensuring that the electrical resistance remains low and the weld quality stays consistent.

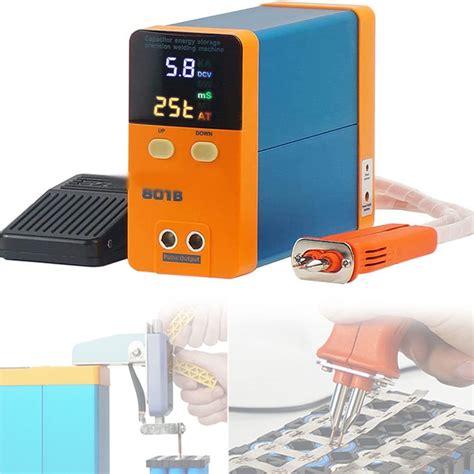

Additionally, if you are using a capacitor-discharge welder, keep the unit away from extreme humidity and ensure the housing is clear of conductive metallic dust. If your welder uses a lead-acid battery as a power source, maintain the health of that battery by keeping it charged according to the manufacturer’s instructions. A weak power source will result in inconsistent pulses and unreliable weld strength, potentially leading to loose connections in your battery pack later on.
Selecting the Right Equipment for Your Needs
The market is saturated with options, ranging from DIY Arduino-based kits to professional-grade industrial welders. When selecting a Battery Spot Welder, consider your intended use frequency and the thickness of the nickel strips you plan to use. If you are building a one-off project, a basic transformer-based model may suffice. For those building packs regularly, investing in a high-quality unit with an adjustable weld timer and high-current capacity will pay off in both time saved and the safety of your battery packs.
Ultimately, the quality of your finished battery pack is directly proportional to the quality of the connections you make. By mastering the use of your spot welder and adhering to safety protocols, you can assemble packs that perform reliably for years to come. Whether you are powering a custom e-bike or a portable camping station, the precision offered by this specialized equipment is the standard for high-performance battery building. Practice patience during your initial setups, calibrate your settings based on the thickness of the materials, and always verify your welds before finalizing the pack insulation.
