Battery With Lemon

Have you ever wondered if the simple contents of your fruit bowl could power your household electronics? The classic science experiment known as the Battery With Lemon is a fascinating educational project that demonstrates the fundamental principles of electrochemistry. By utilizing the citric acid found in a lemon and two different metallic electrodes, you can create a chemical reaction that generates a small but measurable amount of electrical current. While you certainly won’t be charging your smartphone with a single piece of fruit, this experiment serves as a brilliant gateway into understanding how chemical energy is converted into electrical energy.

Table of Contents

The Science Behind the Lemon Battery

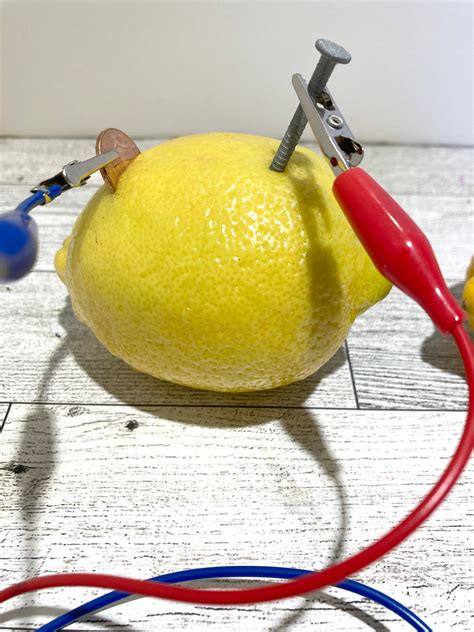

A lemon with copper and zinc electrodes inserted

At its core, a Battery With Lemon functions as a voltaic cell. The citric acid acts as the electrolyte—a substance that allows ions to move between two different metal electrodes. When you insert a galvanized nail (which is coated in zinc) and a copper penny or piece of copper wire, you create a potential difference. The zinc acts as the anode, where oxidation occurs, while the copper acts as the cathode, where reduction takes place. This flow of electrons through an external circuit is what we measure as voltage.

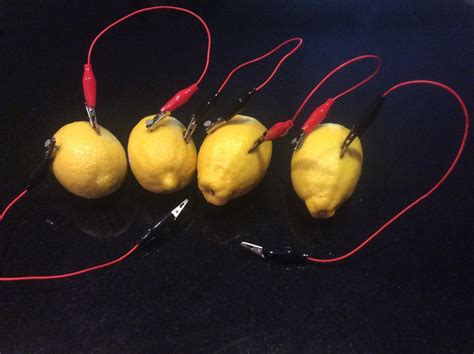

To successfully build your own circuit, you will need to understand the relationship between the acidity of the fruit and the conductivity of the metals used. The more lemons you connect in a series, the higher the voltage will be. This cumulative effect is why hobbyists often connect multiple lemons to light up a small LED bulb.

Materials Required for the Experiment

Before beginning, ensure you have gathered the following items. Using high-quality components will yield better results in your electrical readings:

One or more fresh, large lemons (rolling them on the table first can release more juice).
Galvanized nails (zinc-coated).
Copper coins (pre-1982 pennies are often best) or copper strips.
Alligator clip leads for easy connectivity.
A digital multimeter to measure the current and voltage produced by your Battery With Lemon.
An optional small LED light to test the output.

Step-by-Step Construction Guide

Follow these steps carefully to ensure a successful circuit connection:

Prepare the Lemon: Gently squeeze and roll the lemon on a hard surface to break down the interior structures and release the juices.
Insert Electrodes: Push one galvanized nail and one copper penny into the lemon, ensuring they are about an inch apart and do not touch each other inside the fruit.
Attach Leads: Connect one alligator clip to the copper piece and another to the zinc nail.
Measure: Touch the ends of the leads to the probes of your multimeter set to DC voltage.

💡 Note: If you do not see a reading on your multimeter, ensure that your alligator clips are making firm contact with the metal and that the zinc and copper are not touching inside the lemon, as this would cause a short circuit.

Comparative Analysis of Fruit Batteries

While the Battery With Lemon is the most iconic, it is not the only fruit capable of conducting electricity. Various fruits offer different levels of acidity, which affects the electrolyte performance.

Fruit Type	Estimated Voltage	Acidity Level
Lemon	0.9V - 1.0V	High
Lime	0.8V - 0.9V	High
Potato	0.5V - 0.7V	Medium
Orange	0.6V - 0.8V	Medium

Troubleshooting Common Issues

Many beginners encounter challenges when trying to power devices. The most common mistake is assuming that a single lemon produces enough power for large devices. You must remember that the Battery With Lemon has a very high internal resistance, meaning it cannot provide much amperage, even if the voltage looks promising on a meter.

Low Voltage: If the reading is too low, try adding another lemon in a series circuit configuration.
Corrosion: Over time, the chemical reaction will cause the metal electrodes to corrode. If you notice a dark coating on your nails or copper, scrub them clean or replace them to improve conductivity.
Connection Integrity: Ensure all wires are tightly secured to the electrodes. Loose connections are the number one cause of failed experiments.

⚠️ Note: Always dispose of the lemons used in this experiment properly; do not consume any fruit that has had metal nails or copper coins inserted into it, as the oxidation process can leach harmful metals into the juice.

Expanding the Experiment

Once you have mastered the basics of a single Battery With Lemon, consider experimenting with different metal pairs. Magnesium or aluminum strips can sometimes produce higher voltages than zinc, though they may also react more aggressively with the acid. You can also explore how temperature affects the reaction; keeping the lemon at room temperature or slightly warmed often increases the ionic mobility, potentially leading to a more stable voltage output.

Another interesting variation is to compare how different surface areas of the metal electrodes affect the current. Use larger copper sheets or multiple nails in parallel to see if the current increases. Documenting these variations in a science journal will help you gain a deeper understanding of how variables influence chemical energy production.

Exploring this project offers a tangible way to grasp complex concepts like electron flow, oxidation-reduction reactions, and circuit design. By taking the time to build and test your own Battery With Lemon, you are engaging in a hands-on learning process that bridges the gap between theoretical science and practical application. Whether you are using this for a school project or personal curiosity, the results offer a clear look at how nature can interact with human engineering. While the power generated remains limited to low-energy applications, the knowledge gained about energy conversion remains invaluable for any aspiring scientist or curious mind looking to understand the world around them through simple, repeatable experiments.
