The Bmw S65 Engine stands as a monumental achievement in automotive engineering, representing the pinnacle of high-revving, naturally aspirated performance. Produced between 2007 and 2013 for the legendary E90, E92, and E93 M3, this 4.0-liter V8 engine is derived directly from the V10 powerplant found in the E60 M5. For many driving enthusiasts, the S65 is considered the last of its kind—a bridge between the analog driving experience and the modern era of forced induction. Its ability to scream toward an 8,400 RPM redline while producing a crisp, metallic exhaust note has cemented its place in the pantheon of iconic performance motors.
Design Philosophy and Architecture

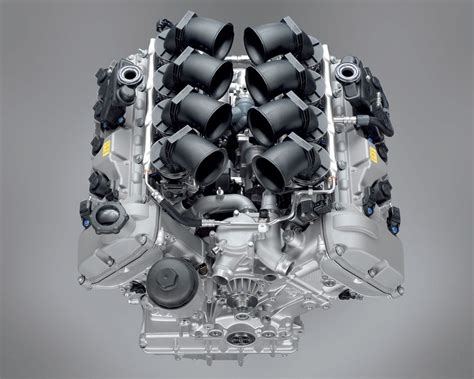

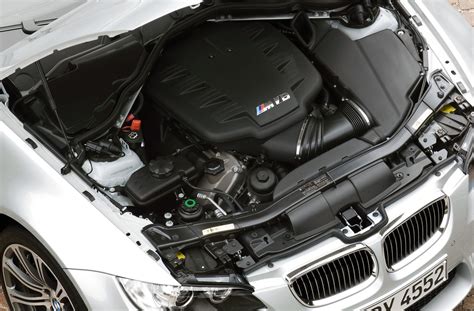

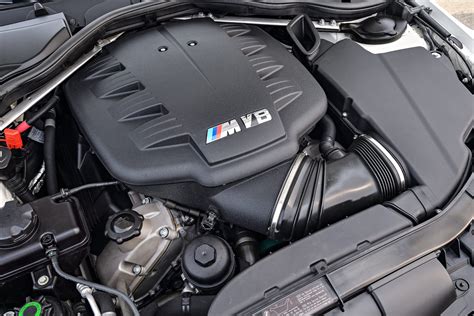

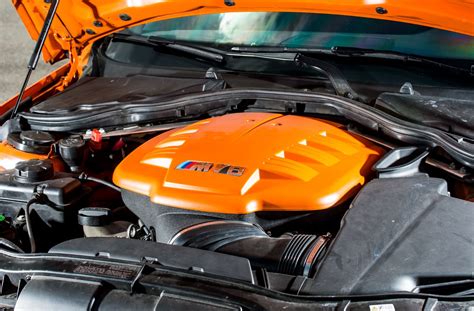

At its core, the Bmw S65 engine features a 90-degree V8 configuration built from a specialized aluminum-silicon alloy. This block design was chosen specifically for its lightweight properties and thermal efficiency. Unlike mass-produced engines, the S65 was engineered to minimize friction and rotational mass, allowing it to climb the tachometer with almost zero hesitation.

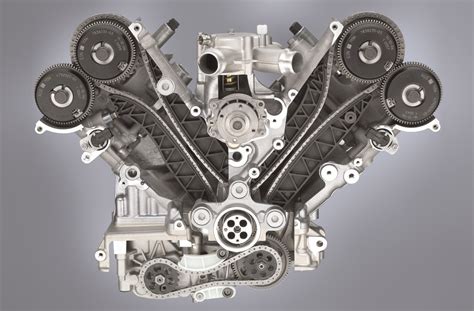

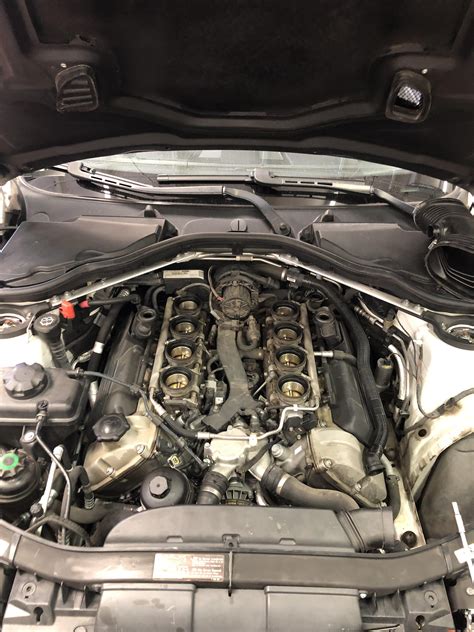

The engine utilizes a Double-VANOS variable valve timing system, which optimizes the intake and exhaust camshaft timing across the entire RPM range. This ensures that the engine delivers a respectable amount of torque at low speeds while maintaining explosive power delivery at high revs. Furthermore, the use of individual throttle bodies for each cylinder provides immediate throttle response, a hallmark of motorsport-derived engineering.
| Specification | Details |
|---|---|
| Engine Code | S65B40 |
| Configuration | V8, 90-degree |
| Displacement | 3,999 cc |
| Compression Ratio | 12.0:1 |
| Horsepower | 414 hp @ 8,300 rpm |
| Torque | 295 lb-ft @ 3,900 rpm |
| Redline | 8,400 rpm |
Common Maintenance Challenges
While the Bmw S65 engine is a marvel of performance, it is not without its known vulnerabilities. Prospective owners and current enthusiasts must be aware of specific maintenance items to ensure the engine’s longevity. Because the engine operates at such high stresses, adhering to a strict maintenance schedule is non-negotiable.
- Rod Bearings: Perhaps the most infamous issue associated with the S65, these bearings are known to wear prematurely. It is widely recommended to replace them as a preventative measure every 60,000 to 80,000 miles.
- Throttle Actuators: The electronic gears inside the throttle actuators are prone to stripping over time, leading to "Limp Mode" errors and engine fault codes.
- Cooling System: Like many BMW engines of this era, the plastic components in the cooling system, such as the thermostat housing and expansion tank, become brittle with age and heat cycles.
- Oil Leaks: The valve cover gaskets and oil filter housing gaskets are common points of failure that require periodic replacement to maintain a clean engine bay.
🛠️ Note: Always use the manufacturer-recommended 10W-60 synthetic oil. The tight clearances and high-revving nature of the S65 require the specific viscosity and heat-resistant properties of this grade to prevent excessive wear.
Performance Modifications
Unlocking the full potential of the Bmw S65 engine is a popular pursuit for track-day enthusiasts. While the engine is highly tuned from the factory, there are several ways to improve its character and output:
- Exhaust Systems: Replacing the restrictive stock secondary catalytic converters and mufflers with a high-flow system significantly enhances the aggressive V8 soundtrack.
- Engine Software Tuning: A custom ECU tune can refine throttle mapping, increase the RPM limiter, and optimize fuel-to-air ratios, especially when paired with performance intake systems.
- Intake Upgrades: Carbon fiber intake plenums or high-flow air filters allow the engine to breathe more freely, further sharpening the induction noise that defines the S65 experience.
- Underdrive Pulleys: These can reduce the parasitic drag on the engine by slowing down the rotation of external accessories, leading to a subtle increase in throttle response.
⚠️ Note: When performing modifications, ensure that all changes are compatible with your regional emission regulations. Excessive tuning that alters the fuel mixture significantly can increase wear on internal engine components if not properly monitored.
The Legacy of the Naturally Aspirated V8
The impact of the Bmw S65 engine on the automotive world cannot be overstated. It represents an era where engineers prioritized character, mechanical symphony, and linear power delivery over the raw, torque-heavy performance of modern turbocharged powerplants. Even today, the S65 remains highly sought after on the used market. Enthusiasts appreciate the fact that the car requires driver engagement; you have to work to find the power, keeping the revs high and the engine in its "sweet spot."
As the industry moves toward electrification and forced induction, the Bmw S65 engine will likely continue to appreciate in value. It serves as a reminder of what happens when a racing pedigree is distilled into a production car. Whether you are daily driving your E92 M3 or taking it to the track on weekends, the experience provided by this high-revving V8 remains largely unmatched. By keeping up with the rod bearing preventative maintenance and general care, owners can ensure that these engines continue to provide a visceral, high-RPM experience for decades to come. The blend of performance, sound, and engineering excellence ensures the S65 will remain a legend for years to follow.
