When you press your foot against the brake pedal, you expect an immediate, reliable response from your vehicle. While we often focus on brake pads, rotors, and fluid, there is a small but vital component working behind the scenes that makes this all possible: the brake pedal switch. Often overlooked until it fails, this simple electrical device acts as the bridge between your physical action and the vehicle's electronic systems. Understanding how this switch functions, recognizing the early signs of its failure, and knowing how to address it can save you from stressful roadside situations and ensure the safety of everyone on the road.
Understanding the Role of the Brake Pedal Switch

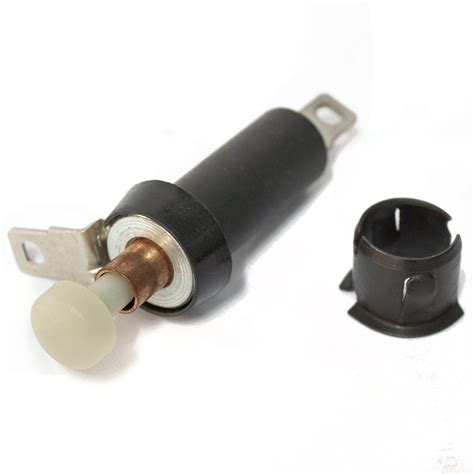

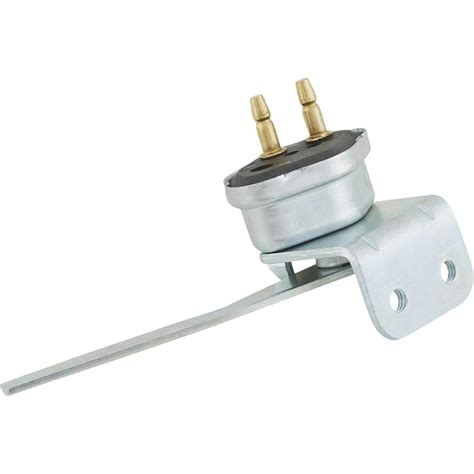

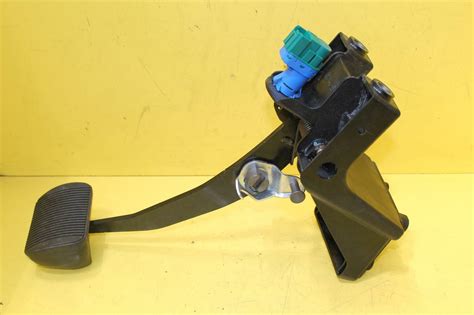

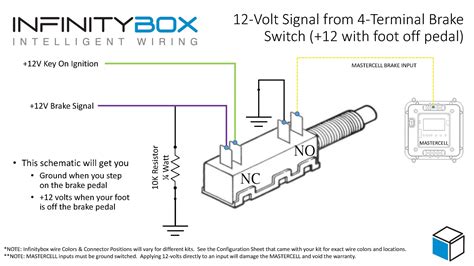

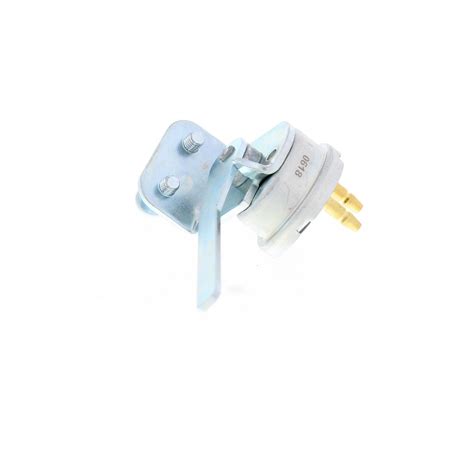

The brake pedal switch, also commonly referred to as the stop light switch, is a sensor typically located on a bracket above the brake pedal arm. Its primary function is quite straightforward: when the pedal is at rest, the switch is held in a specific position. The moment you apply pressure to the pedal, the switch is released, completing an electrical circuit. This signal performs several critical tasks:
- Illuminating Brake Lights: It notifies drivers behind you that you are slowing down or coming to a stop.
- Disengaging Cruise Control: It signals the engine computer to cut throttle immediately when the brakes are applied.
- Allowing Gear Shifter Movement: In most automatic vehicles, you cannot shift out of “Park” without a signal from this switch.
- Interacting with Safety Systems: It communicates with Anti-lock Braking Systems (ABS) and Electronic Stability Control (ESC) to manage traction.
Common Symptoms of a Failing Switch
Because the brake pedal switch is responsible for so many different vehicle functions, a failure usually manifests in ways that are hard to ignore. If you notice any of the following symptoms, it is imperative to investigate the switch immediately, as a failed unit can compromise your vehicle’s safety features.
- Brake lights staying on or not coming on at all: This is the most common indicator. If they stay on, you risk draining your battery; if they don’t come on, you pose a hazard to others.
- Inability to shift out of Park: Since the interlock system requires confirmation that the brake pedal is depressed, a dead switch will lock the gear shifter in place.
- Cruise control failure: If the system cannot detect when you are braking, it will often disable itself entirely as a fail-safe measure.
- Dashboard warning lights: Modern vehicles often trigger the ABS or ESC warning light when the computer receives conflicting data from the brake sensor.
Troubleshooting and Diagnostic Comparison
To help you distinguish between a faulty switch and other potential braking issues, refer to the following diagnostic table. This helps in narrowing down whether the issue lies with the brake pedal switch or another part of the braking system.
| Symptom | Likely Cause | Action Required |
|---|---|---|
| Brake lights never illuminate | Brake pedal switch or blown fuse | Check fuse; if good, replace switch |
| Brake lights always ON | Stuck/defective switch or adjustment | Adjust switch bracket or replace unit |
| Cannot move gear shifter | Brake switch or shift interlock solenoid | Check for switch signal; test solenoid |
| ABS light persists | Sensor failure or wiring issue | Perform OBD-II diagnostic scan |
⚠️ Note: If you cannot shift out of Park, most vehicles have a "Shift Lock Release" slot, usually hidden under a small plastic cap near the shifter, which allows you to manually move the gear selector to Neutral for towing or emergency purposes.
Steps to Replace a Brake Pedal Switch
Replacing the switch is often an affordable DIY task, though it requires some flexibility to work under the dashboard. Always ensure the vehicle is on a flat surface and the parking brake is engaged before starting.

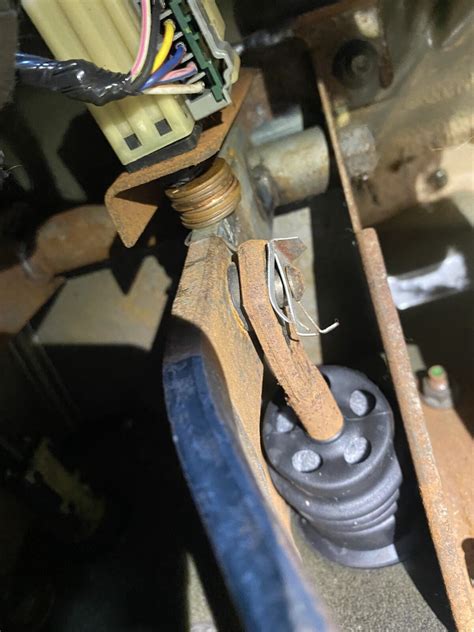

- Locate the Switch: Look under the dashboard directly above where the brake pedal arm meets the floor pivot. You will see a plastic or metal housing with an electrical connector attached.
- Disconnect the Wiring: Carefully unplug the electrical harness. You may need to press a small tab to release the locking mechanism.
- Remove the Old Switch: Depending on the design, the switch may be held in place by a locking nut or simply rotated to unlock it from the mounting bracket.
- Install the New Switch: Slide the new brake pedal switch into place. Ensure it is properly seated against the pedal arm. If your specific model requires adjustment, follow the manufacturer’s torque or gap specifications.
- Reconnect and Test: Plug the harness back in. Test the brake lights, cruise control, and gear shifter functionality before driving the vehicle.
💡 Note: Always use OEM or high-quality aftermarket parts for this specific repair. A low-quality switch may lead to intermittent signals, which can cause erratic behavior in your vehicle's stability control system.
Preventative Maintenance and Longevity
While you cannot necessarily “service” a sealed electronic switch, you can extend the life of your vehicle’s electrical components by keeping the cabin area clean and dry. Moisture or debris entering the pedal assembly can accelerate oxidation on the electrical contacts. If you ever notice the brake pedal switch connector looking corroded, a quick cleaning with a dedicated electronic contact cleaner can sometimes resolve intermittent connection issues. However, if the internal mechanical spring has worn out or the internal contacts are pitted, replacement remains the only permanent fix.
Regularly performing a “walk-around” safety check is a habit every driver should adopt. Spend a few seconds checking that your brake lights are functioning after a wash or during fuel stops. Since the brake pedal switch is a critical safety component, staying proactive ensures that you are never left stranded by a simple gear-shifter lock or caught in a dangerous situation without functioning brake indicators. By understanding the signs of wear and following proper replacement procedures, you maintain control over your vehicle’s safety and reliability, giving you peace of mind during every drive. Regular maintenance not only protects your car’s value but, more importantly, ensures that your braking system communicates effectively with the rest of your vehicle’s safety suite.
