The modern automotive braking system is a complex assembly of hydraulics, friction materials, and pneumatic assistance designed to bring your vehicle to a safe stop. At the heart of this power-assisted system is the brake vacuum pump. For many drivers, this component remains hidden in the engine bay, operating silently until something goes wrong. Understanding how this pump functions, why it is essential, and how to identify potential failures can save you significant repair costs and, more importantly, keep you safe on the road. Whether you drive a diesel engine, a turbocharged gasoline vehicle, or a hybrid, the reliance on a vacuum-assisted braking system is universal.
Understanding the Role of the Brake Vacuum Pump
In traditional gasoline engines, vacuum is naturally generated in the intake manifold as the pistons move downward, creating a pressure differential that is harnessed by the brake booster. However, modern engineering has introduced configurations where this natural vacuum is either insufficient or non-existent. This is where the brake vacuum pump becomes indispensable. By mechanically creating a vacuum, the pump ensures that the brake booster has the necessary force to amplify the driver’s pedal pressure.

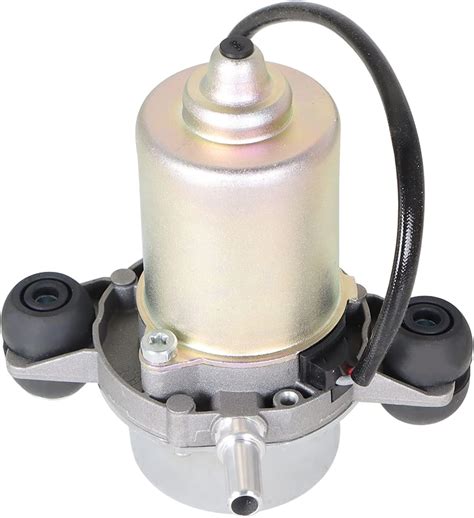

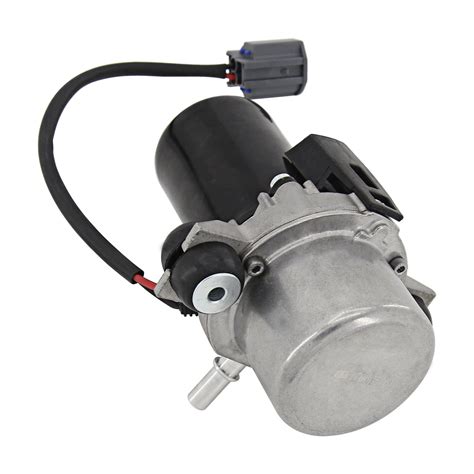

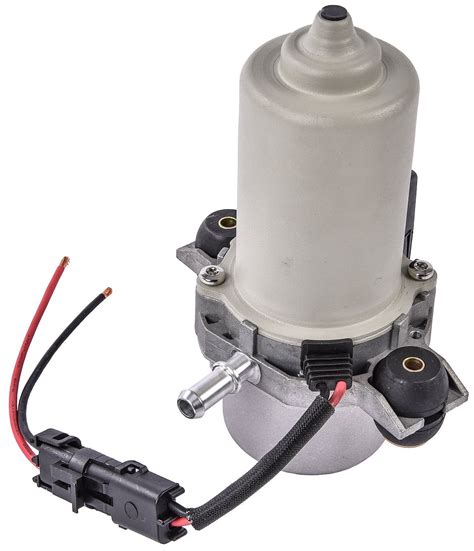

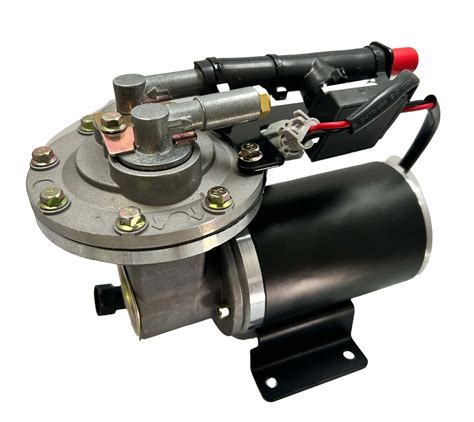

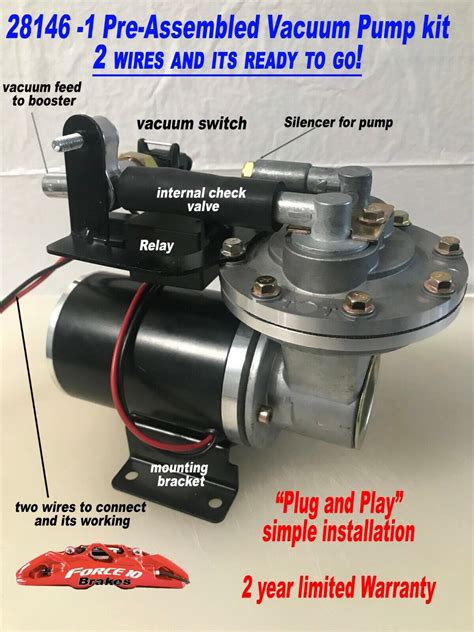

Without this component, your brake pedal would become incredibly stiff, requiring immense physical strength to stop the car. This condition, often referred to as a "hard pedal," is the primary symptom of a vacuum system failure. The pump is typically driven by the camshaft, crankshaft, or an electric motor, depending on the specific design of your vehicle’s engine architecture.
Why Your Vehicle Needs a Dedicated Vacuum Source
Several factors have led manufacturers to move away from relying on intake manifold vacuum for braking assistance:
- Diesel Engines: These engines do not have a throttle plate, meaning they do not produce significant vacuum in the intake manifold.
- Turbocharged and Supercharged Engines: When under boost, these engines create positive pressure in the manifold, which is the opposite of the vacuum required for the booster.
- Hybrid Vehicles: These engines frequently shut down to save fuel, meaning there is no engine rotation to create vacuum while the car is moving.
- Emission Standards: Modern engine management systems strictly control airflow, often leaving no “spare” vacuum for accessory systems like power brakes.
Common Signs of a Faulty Brake Vacuum Pump
Recognizing the early symptoms of a failing brake vacuum pump is crucial for preventative maintenance. If you notice any of the following, it is time to have your braking system inspected by a professional mechanic:
- Hard Brake Pedal: As mentioned, the most common sign. If you feel you have to press the pedal with all your might to slow down, the booster is not receiving vacuum.
- Extended Stopping Distances: Even if the brakes still work, a weak pump can result in less-than-optimal assistance, leading to sluggish braking response.

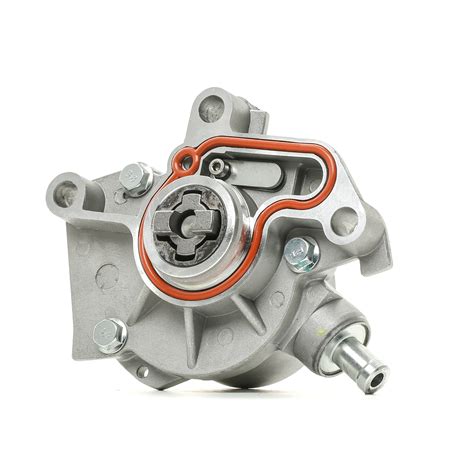

- Oil Leaks: Many mechanical pumps are mounted to the engine cylinder head. If the seal or internal gasket fails, you may notice oil dripping from the pump onto the engine block.
- Engine Performance Issues: In some designs, a vacuum leak caused by a failed pump can affect the air-fuel mixture, leading to rough idling or warning lights on the dashboard.
Comparative Overview of Vacuum Systems
The following table outlines the differences between traditional vacuum generation and the use of a dedicated pump:
| Feature | Intake Manifold Vacuum | Brake Vacuum Pump |
|---|---|---|
| Source | Engine Airflow | Mechanical or Electric |
| Consistency | Variable (RPM dependent) | Constant/Controlled |
| Reliability | High (unless leaks occur) | High (but prone to wear) |
| Best For | Naturally Aspirated Engines | Diesel/Turbo/Hybrid |
Troubleshooting and Maintenance Steps
If you suspect your brake vacuum pump is the culprit, a technician will typically follow these diagnostic steps:
- Visual Inspection: Checking for oil leaks around the pump housing and ensuring all vacuum lines are connected and free of cracks.
- Vacuum Gauge Test: Attaching a gauge to the pump’s outlet port to verify if it is pulling the manufacturer’s specified amount of vacuum (usually measured in inches of mercury).
- Check Valve Inspection: Testing the check valve, which ensures vacuum stays trapped in the booster even after the engine is turned off.
- Listen for Noise: Mechanical pumps can sometimes make a “clicking” or “ticking” sound if the internal vanes or lobes are worn out.
💡 Note: Never attempt to disconnect vacuum lines while the engine is running unless you are experienced with automotive diagnostics, as the system may be under high pressure or heat.
Choosing the Right Replacement Part

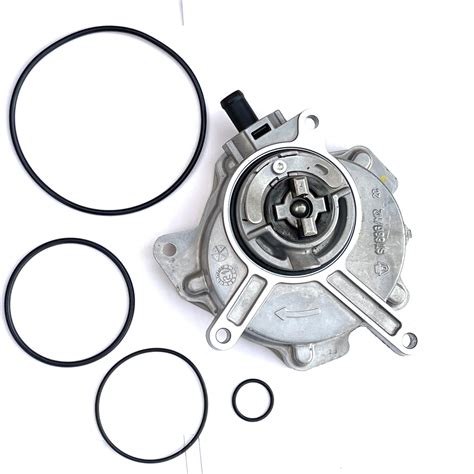

When it comes time to replace the pump, always opt for original equipment manufacturer (OEM) parts or high-quality aftermarket equivalents. Because the brake vacuum pump is a safety-critical component, cheap, unbranded components should be avoided. Ensure that the new unit comes with the necessary O-rings and gaskets, as these are often the primary cause of oil-related failures.
Installation typically involves removing the old pump, cleaning the mounting surface, installing new gaskets, and ensuring the drive mechanism (like the camshaft lobe) is properly aligned. Improper installation can lead to immediate failure or engine oil leaks that could cause further damage to belts and hoses.
Final Thoughts on Brake System Reliability
Ensuring your vehicle’s braking system is in top condition is a responsibility that every driver should take seriously. The brake vacuum pump acts as a quiet guardian of your safety, providing the power assist necessary for predictable and controlled stopping. By staying attentive to how your brake pedal feels and keeping an eye on your engine bay for signs of oil leaks or unusual noises, you can catch potential issues before they compromise your safety. Regular maintenance, including brake fluid flushes and system inspections, will ensure that your pump remains functional for the life of your vehicle. Should you ever feel a change in your pedal’s firmness, do not delay in seeking professional assistance, as your ability to react to sudden traffic changes depends entirely on a healthy vacuum-assisted brake system.
