The Bunson Burner, frequently spelled as the Bunsen burner, remains one of the most iconic pieces of equipment found in a scientific laboratory. Since its inception in the 19th century, this humble apparatus has played a pivotal role in chemical discovery, sterilization, and material testing. While modern heating alternatives like hot plates and mantles have become common, the gas-fueled flame provided by this device offers a level of precision, speed, and versatility that remains unmatched for many bench-top applications. Understanding how to operate, maintain, and respect this instrument is a foundational skill for every chemistry student and professional researcher.
The History and Functionality of the Bunson Burner
Developed to produce a clean, hot, and soot-free flame, the Bunson Burner works by mixing a flammable gas—typically methane, propane, or butane—with air in a controlled manner. Before the invention of this device, scientists struggled with smoky, uneven flames that made it difficult to observe color changes in flame tests or heat glass evenly. By introducing air holes at the base of the metal tube, the device allows for the pre-mixing of oxygen with the fuel, leading to a much more efficient combustion process.

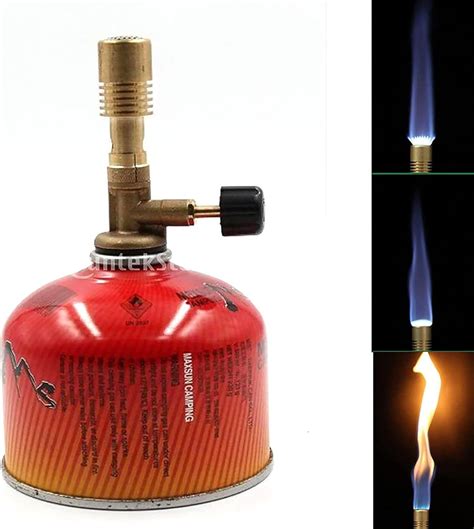

When the air holes are fully open, the burner produces a bright blue, roaring flame, which is the hottest configuration. If the air supply is restricted, the flame becomes yellow and luminous, often depositing soot on glassware. Mastering the adjustment of this air-to-fuel ratio is the first step toward becoming proficient in laboratory heating techniques.
Key Components and Design
To operate a Bunson Burner safely, you must be familiar with its structural anatomy. Each part serves a specific purpose in regulating the heat output and stability of the flame:
- Base: A heavy, stable foundation that prevents the burner from tipping over during use.
- Gas Inlet: A serrated nozzle that connects to the laboratory gas source via rubber tubing.
- Gas Valve/Needle Valve: Used to control the volume of gas flowing into the burner.
- Barrel/Chimney: The vertical metal tube where the gas and air mix before ignition.
- Air Intake Holes: Adjustable openings located at the base of the barrel to control oxygen levels.
- Collar: The rotatable sleeve that adjusts the size of the air intake holes.
Safety Protocols for Laboratory Heating
Safety is the top priority whenever an open flame is involved in a laboratory setting. Before lighting your Bunson Burner, ensure your workspace is clear of flammable materials, including papers, chemicals, and loose clothing. Always wear your safety goggles and ensure your hair is tied back if necessary.
| Action | Purpose |
|---|---|
| Clear Workspace | Prevents accidental ignition of stray materials. |
| Check Tubing | Ensures there are no leaks or cracks that could cause a flare-up. |
| Ignition Sequence | Always turn the gas on only after the striker is ready. |
| Monitoring | Never leave a burning flame unattended under any circumstances. |
⚠️ Note: If you smell a gas leak, immediately shut off the main gas supply valve, extinguish all nearby flames, and alert the laboratory supervisor. Never attempt to light a burner if there is an odor of gas in the room.
Advanced Techniques and Flame Adjustments
Once you are comfortable lighting the device, you can begin to experiment with different flame characteristics. The hottest part of the flame is usually located just above the inner blue cone. This is the ideal area to place your crucible or test tube for rapid heating. Conversely, the cooler, yellow flame is rarely used for heating but is helpful for visibility or specific slow-heating processes.
If you find that your flame is "lifting" off the barrel (producing a whistling sound), it means you have too much air entering the mix. Simply close the collar slightly until the flame stabilizes and sits firmly at the top of the barrel. Conversely, if the flame is orange and lazy, you need to open the air collar to introduce more oxygen, which will transition the flame into a cleaner, hotter blue state.
💡 Note: Always use a tripod or a wire gauze when heating glassware to ensure even heat distribution and to prevent the glass from shattering due to thermal shock.
Maintenance and Cleaning
Over time, the air holes of your Bunson Burner may become clogged with debris, dust, or spilled chemicals. A clogged burner will not perform efficiently, often resulting in an unstable, flickering flame. Periodically unscrew the barrel from the base and clear any obstructions. Use a wire or a small brush to clean the air intake holes and ensure the gas jet nozzle is free from blockages. A well-maintained instrument will provide years of reliable service and a consistent heat output, which is essential for accurate scientific data collection.
Troubleshooting Common Issues
Even experienced researchers occasionally encounter issues with their equipment. Here are common problems and their quick fixes:
- Flame will not light: Check the main gas supply valve and ensure the tubing is properly connected without any kinks.
- Flame flashes back: This happens when the gas pressure is too low or the air intake is too high. Shut off the burner, allow it to cool, and adjust the collar.
- Sooting glassware: This indicates an incomplete combustion. Open the air collar to increase the oxygen intake until the flame turns blue.
The versatility and reliability of the Bunson Burner make it an indispensable tool in modern scientific exploration. By following strict safety guidelines, understanding the mechanics of the gas-to-air mixture, and keeping your equipment well-maintained, you can maximize the effectiveness of your laboratory experiments. Whether you are performing analytical flame tests, sterilizing inoculating loops, or heating reaction vessels, this classic apparatus remains the gold standard for controlled, open-flame heating in the world of chemistry. Mastery of this tool reflects a commitment to the fundamental principles of safety and precision that are the hallmarks of a successful scientist.
