In the rapidly evolving landscape of modern medical diagnostics and surgical procedures, the C Arm has emerged as a cornerstone technology. This sophisticated imaging device, named for its distinctive semi-circular shape, provides high-resolution, real-time X-ray images, allowing surgeons to visualize complex anatomical structures during minimally invasive interventions. From orthopedics to cardiology and pain management, the integration of a C Arm into the operating room has drastically improved patient outcomes, reduced recovery times, and increased procedural precision. As healthcare facilities strive for greater efficiency and safer surgical environments, understanding the role, maintenance, and technical capabilities of these systems is essential for clinical staff and medical administrators alike.

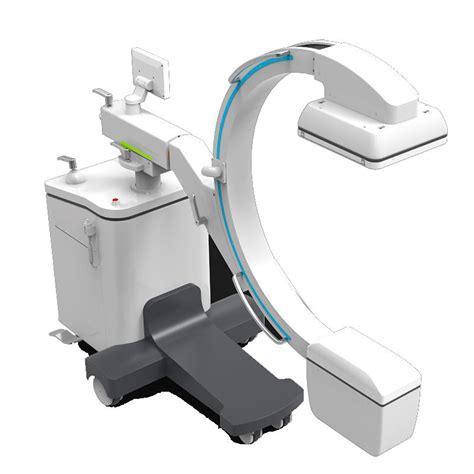

Understanding the Mechanics of a C Arm

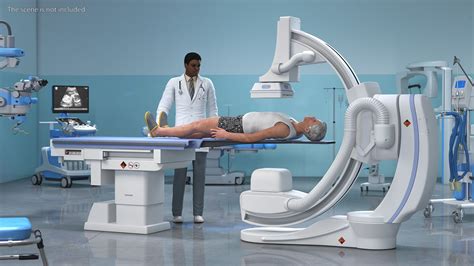

At its core, a C Arm is a fluoroscopic imaging system that operates by connecting an X-ray source and an X-ray detector to a movable C-shaped arm. The design allows the arm to be rotated and adjusted around the patient, enabling imaging from almost any angle without requiring the patient to move. This mobility is crucial in a sterile operating environment where speed and accuracy are paramount.
The device captures a continuous feed of X-ray images, which are transmitted to a monitor. This real-time capability, known as fluoroscopy, is what sets the C Arm apart from conventional stationary X-ray units. Surgeons can watch the movement of instruments, needles, or implants inside the body while they are actively performing the procedure, ensuring optimal placement and safety.

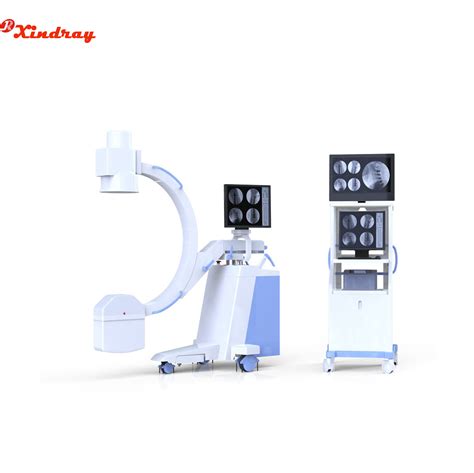

Key Components of the System

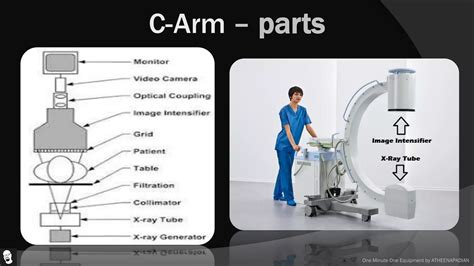

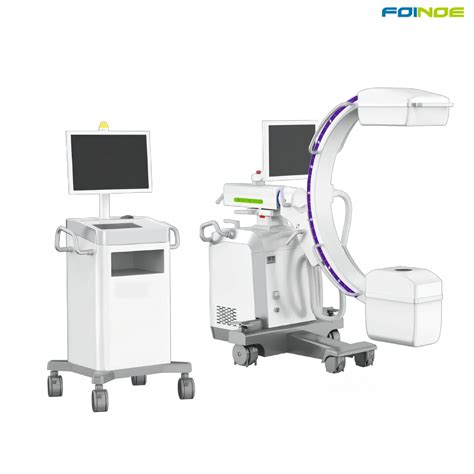

- X-ray Generator: The component that produces the X-ray beam. Modern systems feature advanced generators that minimize radiation exposure while maintaining high image quality.
- Image Intensifier or Flat Panel Detector (FPD): This device captures the X-ray photons and converts them into a digital image. Digital FPDs have largely replaced traditional image intensifiers due to their superior image quality and compact design.

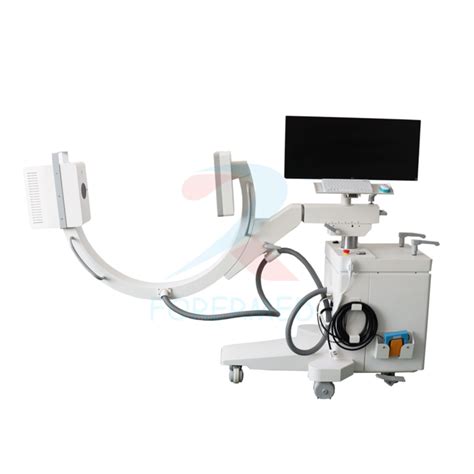

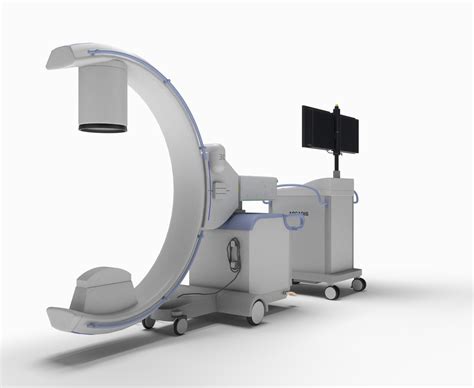

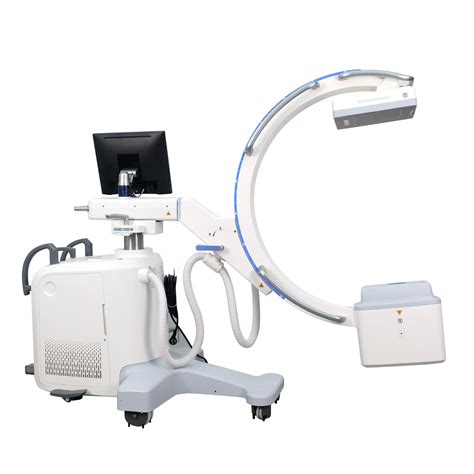

- C-Shaped Gantry: The structural component that allows for flexible positioning and orbital rotation of the imaging chain.

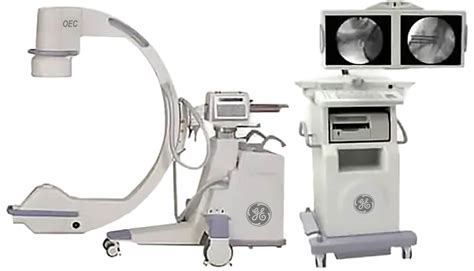

- Workstation and Monitors: The control center where images are processed, enhanced, and displayed for the surgical team.
Common Clinical Applications

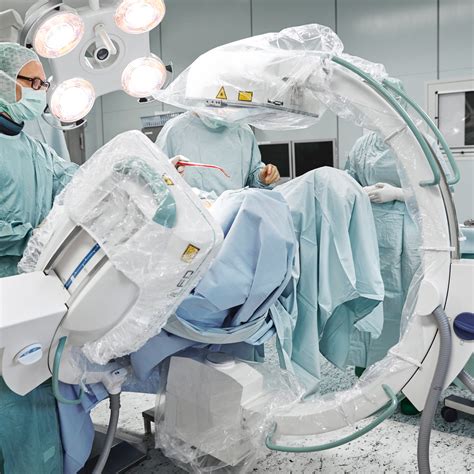

The versatility of the C Arm makes it indispensable across numerous surgical disciplines. Its ability to provide dynamic visualization allows for procedures that would be nearly impossible with static imaging techniques alone.
💡 Note: Always ensure the C Arm is properly calibrated and shielded according to hospital safety protocols before initiating any surgical procedure.
| Medical Specialty | Common C Arm Procedures |
|---|---|
| Orthopedics | Fracture reduction, orthopedic implant placement, spine surgery. |
| Cardiology | Pacemaker implantation, cardiac catheterization, stent placement. |
| Pain Management | Epidural steroid injections, nerve blocks, radiofrequency ablation. |
| Vascular Surgery | Angiography, vascular stent placement, thrombolysis. |
Technological Advancements in Modern C Arms
Recent years have seen significant leaps in C Arm technology. The shift from traditional analog systems to fully digital, flat-panel detector-based systems has revolutionized the industry. These advancements focus on three main areas: image quality, dose reduction, and workflow integration.
High-end models now feature sophisticated software packages that allow for 3D reconstruction, similar to CT scans, but performed directly in the operating theater. This capability, often referred to as intraoperative 3D imaging, provides surgeons with immediate feedback on the accuracy of their work, significantly reducing the likelihood of re-operation.
Advantages of Digital Imaging
- Lower Radiation Dose: Modern systems use pulse fluoroscopy and advanced image processing algorithms to reduce radiation exposure for both the patient and the surgical staff.
- Superior Image Quality: Improved contrast and resolution allow for better visualization of small structures, such as thin wires or delicate bone fractures.
- Digital Connectivity: Seamless integration with PACS (Picture Archiving and Communication Systems) allows for instant storage and retrieval of images for patient records.

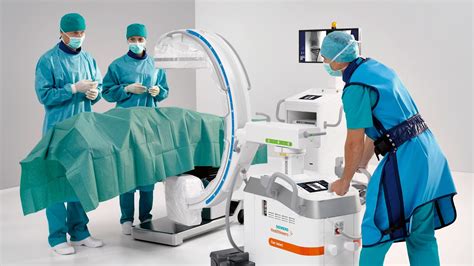

Optimizing Workflow and Maintenance
While the C Arm is an incredibly powerful tool, its effectiveness depends heavily on proper operation and regular maintenance. A malfunctioning unit can lead to expensive downtime and disruptions in the surgical schedule.
Staff training is critical. Every member of the surgical team, from nurses to surgeons, should be familiar with the basic functions and safety protocols of the unit. This includes understanding how to manipulate the arm safely and how to manage the radiation dose settings during the procedure.
Routine maintenance should be performed by qualified medical equipment technicians. This includes inspecting the X-ray tube for signs of wear, ensuring the wheels and brakes are functioning correctly, and verifying that the digital detector is calibrated for optimal image clarity. Regular preventive maintenance not only extends the life of the C Arm but also ensures that the equipment remains reliable during emergency procedures.
💡 Note: Maintain a strict log of all radiation exposure incidents and routine service history to comply with local healthcare regulatory standards.
Safety Considerations
Radiation safety is perhaps the most significant concern when operating a C Arm. Because these devices are frequently used for prolonged procedures, both the surgical staff and patients are at risk of cumulative exposure if proper precautions are not taken.
The "ALARA" principle—standing for "As Low As Reasonably Achievable"—should guide all fluoroscopic procedures. This means minimizing the duration of X-ray exposure, maintaining maximum distance from the source, and utilizing lead shielding at all times.
Best Practices for Radiation Safety
- Always wear lead aprons, thyroid collars, and lead glasses when in the operating room during fluoroscopy.
- Use collimation to restrict the X-ray beam to only the area of interest, which reduces scatter radiation.
- Position the image intensifier as close to the patient as possible to reduce the dose and improve image sharpness.
- Utilize “last image hold” functions to review images without needing to trigger a new exposure.
The implementation of these units has fundamentally transformed the standard of care in surgical medicine. By combining advanced real-time imaging with portable, user-friendly designs, these machines have allowed clinicians to tackle complex anatomical challenges with unprecedented accuracy. As we look toward the future, the ongoing integration of artificial intelligence and further reduction in radiation dosing will likely continue to elevate the capabilities of the C Arm, solidifying its place as an essential component of the modern operating room. Through careful maintenance, rigorous training, and a steadfast commitment to safety protocols, medical facilities can ensure that this technology continues to provide life-changing benefits to their patients for years to come.
