Understanding the fundamental behavior of electronic components is essential for anyone delving into circuit design, and one of the most common configurations encountered is capacitance in parallel. When we connect capacitors in a parallel arrangement, we fundamentally change how the circuit stores electrical energy compared to a series configuration. By placing capacitors side-by-side, with their positive terminals connected to a common node and their negative terminals connected to another common node, we are essentially increasing the effective surface area available for charge accumulation. This behavior is crucial in power supply filtering, signal processing, and energy storage systems, where specific capacitance values are required to stabilize voltage levels or filter out unwanted noise.
The Physics Behind Capacitance in Parallel

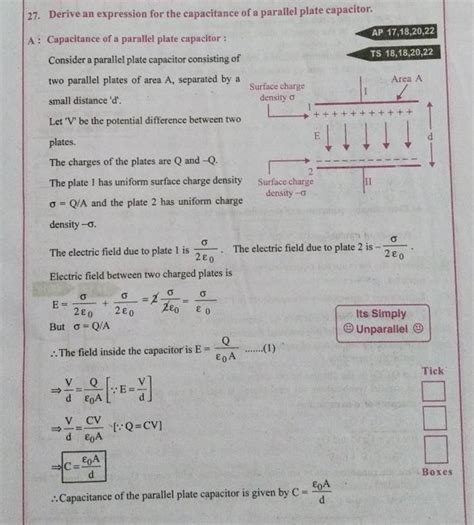

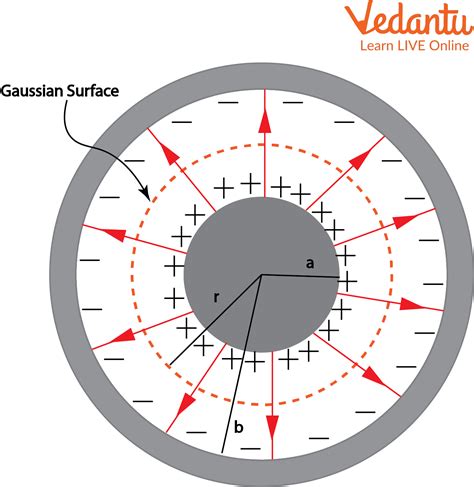

To grasp why capacitance in parallel results in a higher total value, it is helpful to visualize the physical structure of a capacitor. A capacitor consists of two conductive plates separated by an insulating material called a dielectric. The capacitance of a single component is directly proportional to the surface area of its plates. When you connect multiple capacitors in parallel, you are effectively creating one massive capacitor with an equivalent plate area equal to the sum of the areas of all individual capacitors involved.
Because the voltage across each capacitor in a parallel circuit is identical—due to them sharing the same two connection nodes—each capacitor can independently store its own charge based on its individual capacity. The total charge stored by the combination is the sum of the charges stored in each individual unit. Consequently, the equivalent capacitance (often denoted as Ctotal or Ceq) is simply the sum of all individual capacitances:
Ctotal = C1 + C2 + C3 + ... + Cn
Key Characteristics of Parallel Capacitor Circuits
When working with capacitance in parallel, there are several distinct characteristics that differentiate this setup from series connections. These properties dictate how the circuit will perform under various operational conditions:
- Common Voltage: Every capacitor connected in parallel is exposed to the exact same voltage drop. If you connect three capacitors to a 12V battery, each capacitor experiences 12V across its terminals.
- Increased Total Capacitance: Unlike resistors, where parallel connections decrease the total resistance, capacitors in parallel increase the total capacitance value.
- Charge Distribution: The total charge stored in the circuit is distributed among the capacitors according to their individual values. A larger capacitor will store more charge than a smaller one at the same voltage.
- Energy Storage: Since energy storage is proportional to capacitance, a parallel arrangement allows for a higher capacity to buffer voltage fluctuations or support transient current demands.
Comparison Table: Parallel vs. Series Arrangements
| Feature | Capacitance in Parallel | Capacitance in Series |
|---|---|---|
| Equivalent Capacitance | Sum of values (C1 + C2...) | Reciprocal sum (1/Ctotal = 1/C1 + 1/C2...) |
| Voltage across each | Identical for all | Divided among capacitors |
| Charge on each | Proportional to value | Identical for all |
| Total Capacitance | Always increases | Always decreases |
Practical Applications in Electronic Design
Engineers frequently utilize capacitance in parallel to achieve specific design goals. One of the most common applications is the decoupling of integrated circuits. High-speed digital ICs often require sudden bursts of current. By placing capacitors of different values in parallel—typically a large electrolytic capacitor for bulk energy storage and a smaller ceramic capacitor for high-frequency noise suppression—the circuit can maintain a stable power supply despite rapid switching events.
Furthermore, in audio crossover networks, parallel capacitors are used to create specific filter responses. By carefully selecting the total capacitance, designers can dictate the cutoff frequency for tweeters or woofers, ensuring that only the desired frequency ranges reach the respective speaker drivers. Because of the additive nature of parallel capacitance, it is also a practical way to achieve "non-standard" capacitance values if a single specific value is not available in the inventory.
⚠️ Note: Always ensure that the voltage rating of each capacitor is equal to or greater than the maximum voltage of the circuit, as the voltage applied to all parallel capacitors will be equal to the source voltage.
Calculating Equivalent Capacitance: A Step-by-Step Approach
Calculating the capacitance in parallel is mathematically straightforward. To determine the equivalent value, follow these logical steps:
- Identify the Capacitors: List all individual capacitance values present in your parallel block. Ensure they are converted to the same unit (e.g., all in microfarads, µF).
- Apply the Formula: Sum the values together. For example, if you have a 10µF, a 22µF, and a 47µF capacitor, the calculation is simply 10 + 22 + 47.
- Verify Ratings: Check the voltage rating for each unit. If you are operating at 25V, every capacitor in your parallel bank must be rated for at least 25V to prevent dielectric breakdown.
- Implement the Physical Layout: Ensure that the leads are kept as short as possible to minimize stray inductance, which can interfere with the high-frequency performance of your parallel capacitor bank.
💡 Note: When replacing a single capacitor with a parallel bank, verify that the total footprint fits within the available space on the printed circuit board (PCB), as multiple components naturally require more surface area than a single unit.
Important Considerations for Circuit Reliability
While the math behind capacitance in parallel is simple, hardware reliability depends on more than just the formula. When you bundle capacitors together, you must account for Equivalent Series Resistance (ESR). Every physical capacitor has a small amount of internal resistance. When capacitors are placed in parallel, their individual ESRs also appear in a parallel configuration. This reduces the total ESR of the bank, which is generally beneficial for power delivery but can potentially lead to issues in circuits that are sensitive to damping or stability.
Additionally, leakage current can become a factor in high-precision circuits. Since each capacitor contributes its own leakage current to the total, a large bank of electrolytic capacitors might exhibit significantly higher total leakage than a single, high-quality film capacitor. Always choose components that meet the temperature and tolerance specifications of the intended environment to ensure long-term stability.
By effectively managing the properties of capacitors in parallel, you gain a powerful tool for optimizing circuit performance. Whether you are aiming to increase total energy storage capacity, fine-tune the filter frequency of an audio circuit, or ensure the stability of a power supply rail, the simplicity of the additive parallel rule provides a reliable path to success. By focusing on the total equivalent capacitance, observing the common voltage across the nodes, and remaining mindful of individual component ratings and parasitic characteristics, you can master the design of stable and efficient electronic systems that leverage this fundamental configuration.
