Understanding how energy builds up within an electronic component is a fundamental skill for any student or engineer working in circuit design. At the heart of this process lies the capacitor charge formula, a mathematical expression that describes how voltage increases across a capacitor over time when connected to a DC power source. By mastering this concept, you gain the ability to predict circuit behavior, design timing circuits, and manage power delivery effectively. Whether you are working with simple RC networks or complex filtering systems, the way a capacitor accumulates charge is defined by a predictable exponential curve.
The Fundamentals of Capacitor Charging

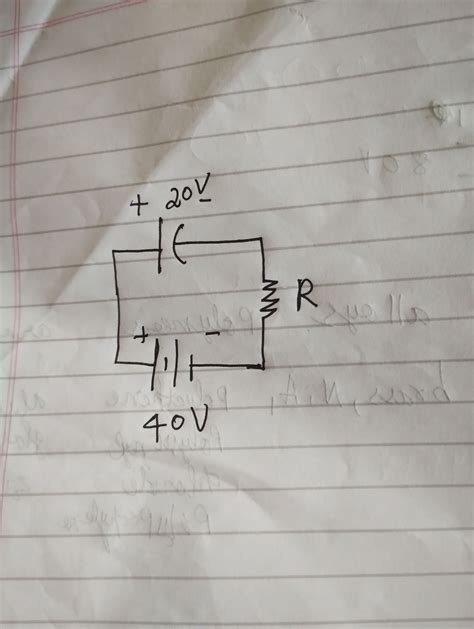

A capacitor acts like a temporary storage tank for electrical energy. When you connect a capacitor in series with a resistor to a DC voltage source—a setup known as an RC circuit—the flow of electrons does not happen instantaneously. Instead, the capacitor fills up gradually. Initially, the current is at its maximum because the capacitor offers no resistance to the voltage. As the potential difference across the capacitor plates approaches the source voltage, the current drops until the capacitor is fully charged.
The capacitor charge formula is derived from Kirchhoff’s Voltage Law. To calculate the instantaneous voltage v(t) across the capacitor at any given time t, we use the following exponential equation:
v(t) = Vs(1 - e-t/RC)
- v(t): Instantaneous voltage across the capacitor (Volts)
- Vs: Source voltage (Volts)
- e: Euler’s number (approximately 2.718)
- t: Time elapsed (seconds)
- R: Resistance in the circuit (Ohms)
- C: Capacitance (Farads)
The product of R and C is referred to as the time constant (represented by the Greek letter tau, τ). This value determines how quickly the capacitor charges. A larger resistance or a larger capacitance results in a longer charging time, while smaller values lead to rapid charging.
Understanding the Time Constant (τ)

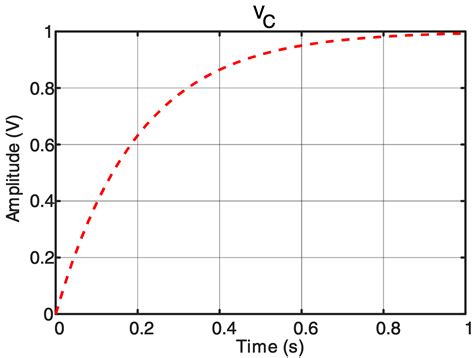

The time constant τ = RC is perhaps the most critical component of the capacitor charge formula. It tells us the time required for the capacitor to charge to approximately 63.2% of its total capacity. In practical engineering, it is widely accepted that a capacitor is effectively "fully charged" after 5 time constants, at which point it has reached roughly 99.3% of the source voltage.
| Time Elapsed | Percentage of Charge |
|---|---|
| 1τ | 63.2% |
| 2τ | 86.5% |
| 3τ | 95.0% |
| 4τ | 98.2% |
| 5τ | 99.3% |
⚠️ Note: Always ensure that your units are consistent when calculating the time constant. Convert resistances to Ohms and capacitance to Farads before multiplying, or your time constant will be inaccurate.
Steps to Calculate Capacitor Voltage
To apply the capacitor charge formula in a real-world scenario, follow these systematic steps:
- Identify the variables: Determine the source voltage (Vs), the resistor value (R), and the capacitor value (C).
- Calculate the Time Constant: Multiply R by C to find τ. If you have a 10kΩ resistor and a 100μF capacitor, your τ is 1 second.
- Select your target time (t): Decide at what point in time you want to know the capacitor voltage.
- Apply the formula: Insert these values into the exponential equation. Most scientific calculators have an "ex" function that makes this process straightforward.
💡 Note: When working with very small capacitors, ensure you account for the internal resistance of the power supply, as it can affect the total circuit resistance and alter the charging curve.
Practical Applications in Electronics
The utility of the capacitor charge formula extends far beyond theoretical textbooks. It is the backbone of many essential electronic devices we use every day:
- Timing Circuits: Integrated circuits like the 555 timer use the RC charging curve to generate precise pulses for oscillators and delays.
- Smoothing Filters: In power supply units, capacitors charge during the peak of an AC cycle and discharge slowly, helping to provide a steady DC output.
- Signal Processing: Low-pass and high-pass filters rely on the charging and discharging characteristics of capacitors to remove unwanted noise from signals.
- Camera Flashes: A capacitor charges slowly from a battery and then discharges its energy rapidly through a xenon lamp, creating a bright burst of light.
Factors Influencing the Charging Process
While the mathematical model provides an ideal scenario, real-world components introduce variations. For instance, capacitors have Equivalent Series Resistance (ESR), which adds to the resistance in the formula and slightly increases the charging time. Additionally, leakage current—where charge slowly escapes through the dielectric material—can prevent a capacitor from reaching the exact theoretical maximum voltage in long-duration applications.
Temperature also plays a role. As the temperature of the dielectric material fluctuates, the effective capacitance can shift, which in turn changes the time constant. Designers often choose capacitors with specific temperature coefficients (such as C0G or X7R ceramics) to ensure that their timing circuits remain stable across varying environmental conditions.
By keeping these factors in mind, you can move from basic calculations to sophisticated circuit analysis. When you understand the underlying math, you can predict how a system will perform under load, troubleshoot intermittent failures, and optimize the efficiency of your electronic designs. Always remember that the capacitor charge formula is a tool for approximation; for mission-critical applications, always account for component tolerances and parasitic elements.
Mastering the behavior of capacitors is an essential step for anyone diving into analog electronics. By focusing on the relationship between time, resistance, and capacitance, you can demystify the transient behavior of circuits. The exponential nature of the charging process highlights why capacitors are so versatile—they allow us to store energy and manage timing with relative ease. As you continue to experiment with RC networks, keep this fundamental formula nearby, as it will serve as your primary guide in understanding how energy moves through your projects. With practice, you will develop an intuitive sense for these curves, allowing you to design more robust and reliable systems without needing to run simulations for every minor adjustment.
