In the high-stakes environment of clinical monitoring, capnography waveforms serve as one of the most critical diagnostic tools available to healthcare providers. By providing a real-time, visual representation of a patient’s exhaled carbon dioxide (EtCO2), clinicians can assess ventilation, perfusion, and metabolic status with immediate accuracy. Unlike pulse oximetry, which measures oxygenation—a lagging indicator—capnography provides a "breath-by-breath" analysis, allowing for instantaneous intervention when a patient’s respiratory status begins to deteriorate. Understanding the morphology and deviations of these waveforms is essential for anyone involved in anesthesia, emergency medicine, or critical care.
Understanding the Normal Capnogram

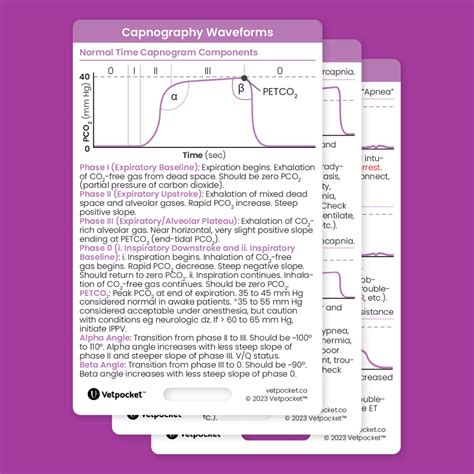

A standard, healthy capnography waveform is characterized by a distinct rectangular shape, often described as a plateau. This shape represents the cyclical nature of respiration: inspiration, the start of expiration, and the subsequent plateau of alveolar gas. A normal waveform consists of four distinct phases that allow clinicians to track the gas exchange process.
- Phase I (Inspiratory Baseline): The beginning of inspiration, where the CO2 level should be near zero, indicating no rebreathing of CO2.
- Phase II (Expiratory Upstroke): The rapid transition as dead-space gas is replaced by alveolar gas, causing a steep rise in CO2 levels.
- Phase III (Alveolar Plateau): The period where gas from the alveoli is exhaled, typically resulting in a flat or slightly upward-sloping line.
- Phase IV (Inspiratory Downstroke): The sudden drop back to the baseline as the patient begins to inhale fresh oxygen.
When monitoring these capnography waveforms, the focus should always be on the end-tidal CO2 (EtCO2) value, which is the point at the end of the alveolar plateau, as well as the contour of the wave itself.
Interpreting Abnormal Waveform Patterns

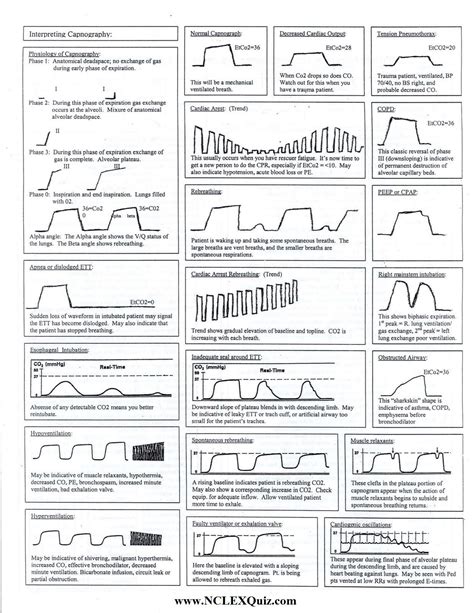

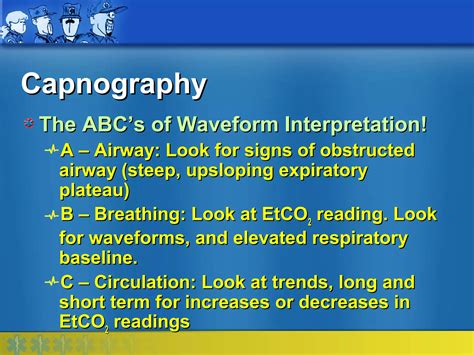

Deviations from the standard rectangular shape provide immediate clues regarding the patient’s condition. Recognizing these patterns is a vital skill for medical staff. Below is a summary of common abnormalities and what they signify in a clinical setting.
| Waveform Abnormality | Clinical Significance |
|---|---|

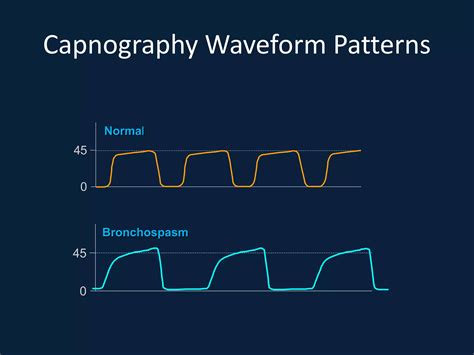

| Shark Fin Shape | Indicates obstructive airway issues like asthma or COPD. |
| Low Plateau | Suggests hypoventilation or decreased pulmonary perfusion. |
| Rising Baseline | Signals CO2 rebreathing, often due to faulty valves or exhausted absorbent. |
| Curare Cleft | Indicates asynchronous breathing, often when a neuromuscular blocking agent is wearing off. |
⚠️ Note: Always check the equipment connections and the patient's circuit integrity if a sudden, unexplained change in the waveform morphology occurs before assuming a physiological crisis.
The Role of Capnography in Ventilation Management
Beyond simple diagnostics, capnography waveforms are indispensable for managing mechanical ventilation. By analyzing the slope of Phase III, clinicians can determine if there is an issue with ventilation-perfusion (V/Q) matching. A steep, prolonged slope often points toward obstructive diseases, while a sudden drop in the plateau suggests an abrupt reduction in cardiac output, such as during a massive pulmonary embolism or cardiac arrest.

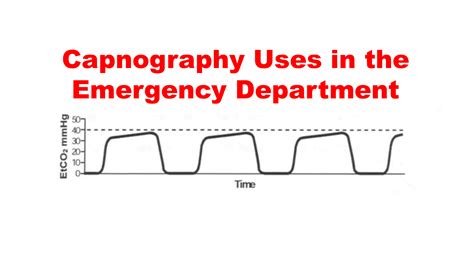

In the context of cardiopulmonary resuscitation (CPR), capnography has become the gold standard for monitoring the effectiveness of chest compressions. If the EtCO2 value remains low during CPR, it typically reflects poor coronary perfusion pressure. Conversely, a sudden, sustained rise in EtCO2 is often one of the earliest indicators of the Return of Spontaneous Circulation (ROSC).
Common Clinical Pitfalls and Troubleshooting
While technology has advanced significantly, user error remains a factor in misinterpreting data. It is important to remember that artifacts can mimic pathological changes. For instance, motion, water in the sampling line, or kinks in the tubing can distort the visual output, leading to false alarms.
- Check for condensation: Water vapor buildup can obstruct the airway adapter.
- Ensure seal integrity: A loose connection at the endotracheal tube can cause a drop in the recorded CO2 levels.
- Verify sensor placement: Ensure the sensor is securely fastened to the circuit to prevent dislodgement.
💡 Note: Calibration of capnography modules should be performed periodically according to institutional protocols to ensure the accuracy of the numerical values and the morphological presentation.
Why Waveform Morphology Matters More Than Numbers

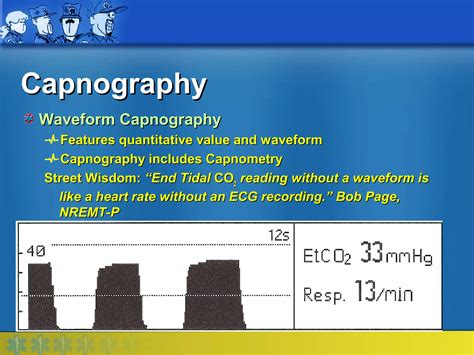

Many practitioners fall into the trap of focusing solely on the digital number displayed on the monitor. However, the number is merely a derivative of the waveform. If the capnography waveforms are distorted, the numerical value may be inaccurate or misleading. Relying on the shape allows the clinician to differentiate between a technical error, a mechanical ventilation failure, and a physiological change. For example, a "shark fin" appearance that appears suddenly in a ventilated patient is a classic sign of an obstructed expiratory limb, a scenario where checking the ventilator circuit is more important than adjusting the respiratory rate.
Integrating Capnography into Daily Practice
To master the interpretation of these waveforms, constant exposure and practice are required. Staff training should emphasize that the capnograph is an extension of the patient's physiology. When a clinician views the screen, they should be looking at the gas exchange process as a dynamic event rather than a static reading. By integrating waveform analysis into routine vital sign checks, the medical team creates a safer, more responsive environment for the patient, significantly reducing the risk of silent hypoxic or hypercapnic events.
The mastery of capnography waveforms represents a pillar of modern clinical monitoring. By moving beyond numerical data and developing an eye for the distinct shapes of respiratory health and disease, healthcare professionals can make faster, more informed decisions. Whether it is identifying the early signs of bronchospasm, managing a patient on a ventilator, or verifying the effectiveness of resuscitation, the visual interpretation of CO2 output remains the most reliable indicator of patient stability. Regular training and a disciplined approach to checking equipment ensure that this powerful diagnostic tool is used to its full potential, ultimately leading to improved patient safety and better clinical outcomes.
