Maintaining your vehicle’s climate control system is essential for a comfortable driving experience, especially during the sweltering summer months. One of the most critical steps in servicing your air conditioning unit is the evacuation process. To achieve this, you need a high-quality car AC vacuum pump. This tool is responsible for removing moisture, air, and non-condensable gases from the refrigerant lines. Without a proper vacuum, moisture can react with the refrigerant to form acidic compounds, which can catastrophically damage your compressor and cause the system to fail prematurely. Understanding how to use this tool effectively is a rite of passage for any DIY automotive enthusiast looking to save money on professional repair costs.
Understanding the Role of a Car AC Vacuum Pump
The primary function of a car AC vacuum pump is to create a negative pressure environment within the sealed AC system. When the system is open for repairs—such as replacing a condenser or an expansion valve—atmospheric air and humidity enter the lines. If you were to simply recharge the system with new refrigerant without first vacuuming it, the trapped air would increase system pressure and reduce cooling efficiency, while the moisture would likely cause freezing at the expansion valve or internal corrosion.
Modern vacuum pumps are designed to reach "deep" vacuums, usually measured in microns. Most automotive experts recommend pulling a vacuum of at least 500 microns to ensure that all moisture has effectively boiled off and been removed from the system. If you cannot reach or maintain this level of vacuum, it is usually a strong indicator that you have a leak somewhere in your hoses or the AC components themselves.
Choosing the Right Vacuum Pump for Your Needs
When shopping for a vacuum pump, you will encounter various specifications. It is important to match the pump capacity to the size of the vehicle system you are servicing. Below is a comparison table to help you decide which type of pump fits your specific requirements.
| Pump Type | Best For | Key Characteristic |
|---|---|---|

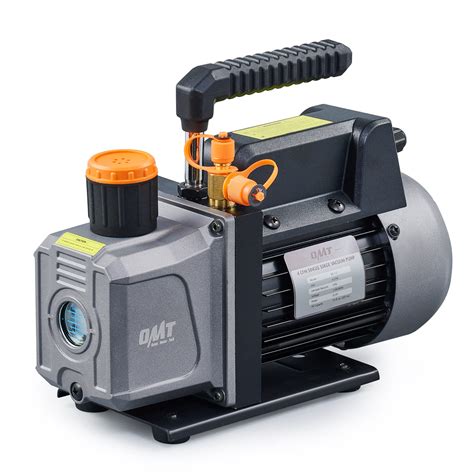

| Single-Stage Pump | Small passenger cars | Economical, reliable for standard maintenance. |

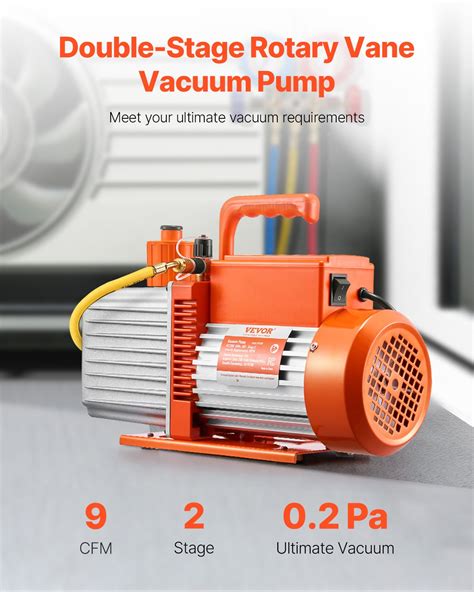

| Dual-Stage Pump | Large SUVs, Trucks, EVs | Reaches deeper vacuums faster; high efficiency. |

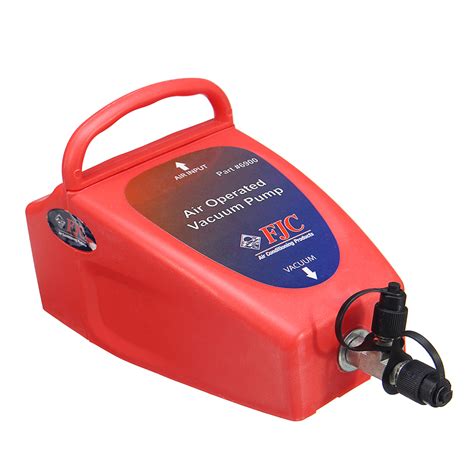

| Venturi (Air-Powered) | Emergency/Occasional use | Requires an air compressor; limited deep vacuum power. |
For most home garage projects, a dual-stage vacuum pump is the gold standard. While they are slightly more expensive than single-stage models, they provide the necessary power to pull the moisture out of the system more rapidly and effectively, saving you time and ensuring the longevity of your AC compressor.
Step-by-Step Guide to Evacuating Your AC System
Before you begin, ensure you have the necessary safety gear, including gloves and safety goggles. Handling refrigerants can be dangerous, and the vacuuming process involves pressurized lines. Follow these steps to correctly use your car AC vacuum pump:
- Connect the manifold gauge set: Attach the blue hose to the low-side service port and the red hose to the high-side service port on your vehicle.
- Attach the vacuum pump: Connect the yellow (center) service hose from the manifold gauge set to the intake port of your vacuum pump.
- Open the valves: Ensure both the high and low-side valves on your manifold gauge set are opened fully to allow the pump to draw air from the entire system.
- Activate the pump: Turn on the vacuum pump and let it run. You should see the needle on your gauge drop into the vacuum range (below zero).
- Monitor the vacuum: Allow the pump to run for at least 30 to 45 minutes. If the system has been open for a long time, consider running it for a full hour to ensure all moisture is evaporated.
- Check for leaks: Once the pump is off, close the manifold valves. Observe the gauges for 10–15 minutes. If the needle begins to rise toward zero, you have a leak in the system that must be repaired before adding refrigerant.
⚠️ Note: Always ensure your vacuum pump is filled with clean oil. Contaminated oil is the most common reason a pump fails to pull a deep enough vacuum, which can lead to incomplete system evacuation.
Common Maintenance Tips for Your Vacuum Pump
Your car AC vacuum pump is a mechanical tool that requires regular upkeep to stay functional. Neglecting the pump will result in poor performance and potentially expensive repairs to your vehicle’s air conditioning system.
- Change the oil frequently: Vacuum pump oil becomes saturated with moisture and contaminants after every use. Never store the pump with used oil inside.
- Check seals and O-rings: Regularly inspect the intake ports and rubber gaskets on your hoses. A cracked seal can prevent the pump from creating a proper vacuum.
- Store in a clean environment: Moisture and dust are the enemies of internal pump components. Keep your pump in a dry area, preferably in a protective carry case.

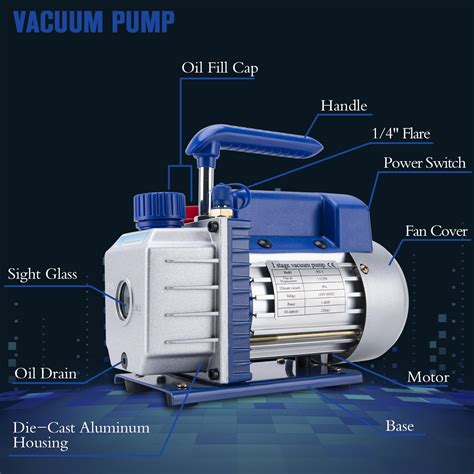

- Don't overfill the reservoir: Always fill the oil to the indicated sight glass line. Overfilling can cause oil misting or damage to the exhaust system.
Investing in a reliable car AC vacuum pump is one of the smartest decisions a vehicle owner can make. By taking the time to properly evacuate your system, you are not just ensuring that your AC blows ice-cold air; you are actively protecting your compressor from early failure. While the process may seem intimidating at first, following the proper steps and maintaining your equipment will turn this into a straightforward maintenance task that you can perform with confidence in your own garage.
Mastering the use of a vacuum pump empowers you to take control of your vehicle’s comfort. By removing the guesswork and ensuring that your system is moisture-free and airtight, you effectively extend the life of your entire HVAC setup. Remember that quality tools, regular oil changes for your pump, and patience during the evacuation process are the keys to a successful DIY repair. Whether you are prepping for a summer road trip or simply looking to keep your daily commute comfortable, this fundamental process remains a cornerstone of effective automotive air conditioning care.
