When it comes to vehicle handling, precision is everything. Whether you are driving a heavy-duty truck, a performance sedan, or a daily commuter, the way your tires interact with the road surface determines your overall driving experience. One of the most misunderstood yet critical aspects of vehicle geometry is Caster Alignment. Many drivers focus exclusively on tire pressure or wheel balancing, but without proper caster settings, your vehicle will struggle to maintain stability, return to center after a turn, or handle uneven road surfaces effectively. Understanding how these angles work can transform a jittery, difficult-to-steer vehicle into one that feels grounded and responsive.
Understanding the Basics of Caster
In the world of automotive suspension, Caster Alignment refers to the angle of the steering axis when viewed from the side of the vehicle. If you imagine a line drawn through the upper and lower ball joints (or the strut mount and the lower control arm), that line is rarely perfectly vertical. Instead, it is tilted either toward the driver or toward the front bumper. This tilt is what we define as caster.
The primary purpose of caster is to provide directional stability. Think of the caster wheels on a shopping cart; they are designed to trail behind the pivot point, which naturally keeps them moving in a straight line. Your car’s steering works on a similar principle. By adjusting the caster angle, you are essentially determining how much the vehicle wants to keep driving forward versus how easily it turns. Proper calibration is essential for maintaining safety and preventing premature wear on suspension components.
The Three Types of Caster Angles

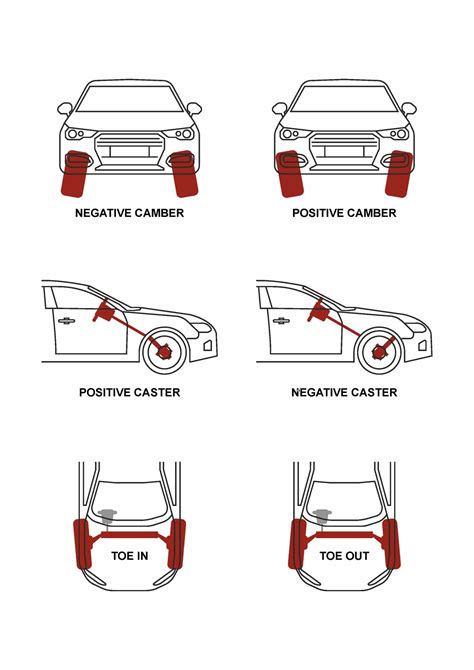

To master the concept of Caster Alignment, you must distinguish between the three primary states that an axle can inhabit. Each state has a distinct impact on how the steering wheel feels in your hands and how the vehicle behaves at high speeds.
- Positive Caster: The steering axis is tilted toward the rear of the vehicle at the top. This is the most common setting for modern vehicles because it promotes high-speed stability and improves the "self-centering" ability of the steering wheel after completing a turn.
- Negative Caster: The steering axis is tilted toward the front of the vehicle. This was more common in older vehicles with manual steering because it makes the wheel very easy to turn at low speeds. However, it leads to significant instability at highway speeds and causes the car to wander.
- Zero Caster: The steering axis is perfectly vertical. This setting offers little to no self-centering force and is rarely used in modern automotive design as it provides a dull and disconnected steering feel.
Why Caster Alignment Matters for Performance
Beyond simple steering feel, Caster Alignment plays a vital role in dynamic cornering. When a car has a positive caster setting, the outside wheel during a turn leans into the corner, which effectively increases the contact patch and improves grip. This is why performance vehicles often run higher positive caster angles than economy cars.
Furthermore, an incorrect caster angle—especially when there is a mismatch between the left and right sides—can cause a vehicle to "pull" to one side. This is known as caster split. While slight caster split is sometimes intentionally programmed into vehicles to account for the crown (curve) of the road, excessive split will cause the driver to constantly fight the steering wheel just to stay in the lane.
| Caster Setting | Primary Benefit | Potential Drawback |
|---|---|---|
| High Positive | Superior stability at speed | Increased steering effort |
| Negative | Very light steering feel | "Wandering" at high speeds |
| Balanced/Even | Predictable tracking | Depends on alignment specs |
⚠️ Note: Always consult your vehicle manufacturer's service manual for specific alignment ranges. Adjusting caster without proper equipment or knowledge can negatively impact your Electronic Stability Control (ESC) systems.
Symptoms of Poor Caster Alignment
Identifying when your vehicle is out of alignment is key to preventing long-term damage. While toe and camber issues often lead to uneven tire wear, issues with Caster Alignment are usually felt through the steering wheel rather than seen on the tire tread. If you notice any of the following, it is time to have your geometry checked:
- Lack of Steering Return: If your steering wheel does not naturally return to the center position after a turn, your caster may be too low or negative.
- Vehicle Pulling: If the car consistently drifts to the left or right on flat, level pavement, your caster settings might be uneven.
- Heavy or Twitchy Steering: Depending on the severity of the angle, the car may feel like it is "darting" at high speeds or require significant physical strength to turn at low speeds.
- Road Wander: The vehicle feels unstable and requires constant micro-corrections to keep it traveling in a straight line.
The Relationship Between Alignment Components

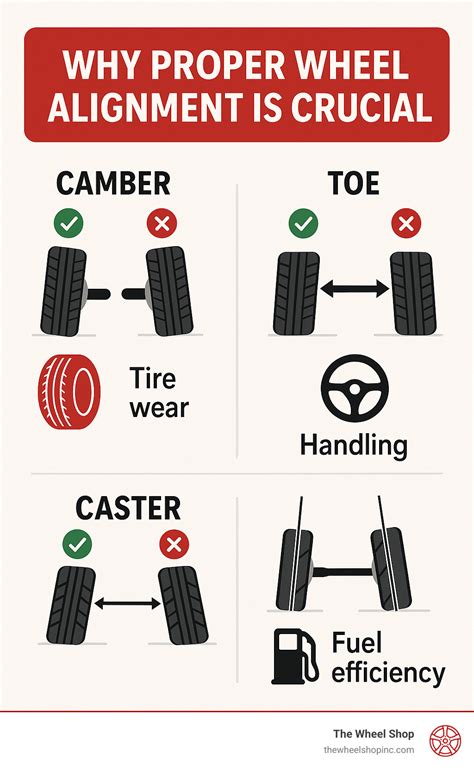

It is important to remember that Caster Alignment does not exist in a vacuum. It works in tandem with camber and toe. Camber is the inward or outward tilt of the tire when viewed from the front, while toe is the direction the tires point relative to each other. During a professional alignment, a technician will ensure all three of these angles are balanced according to the manufacturer's specific requirements.
Often, if a vehicle has been in a minor accident or hit a significant pothole, the caster can be shifted. Because caster is often controlled by the mounting points of the control arms or strut towers, shifting these can be more involved than a simple toe adjustment. However, addressing the caster is the most effective way to restore the "factory feel" of the steering system.

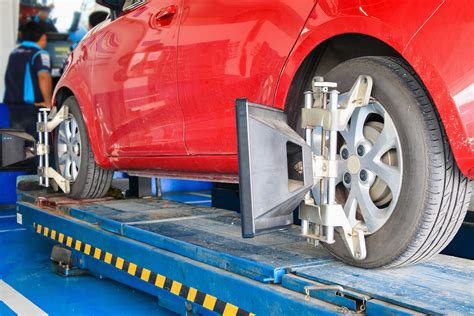

💡 Note: Modern alignment machines use laser sensors to measure caster, camber, and toe simultaneously. It is highly recommended to perform a full four-wheel alignment rather than adjusting only one parameter to ensure the vehicle tracks perfectly.
Long-term Benefits of Regular Maintenance
Regularly checking your Caster Alignment is a cost-effective way to preserve your vehicle's longevity. By ensuring your steering geometry is within spec, you reduce the stress on your power steering pump, rack and pinion unit, and suspension bushings. A vehicle that tracks straight and responds predictably to input is not only more enjoyable to drive but is inherently safer in emergency maneuvers where reaction time is critical.

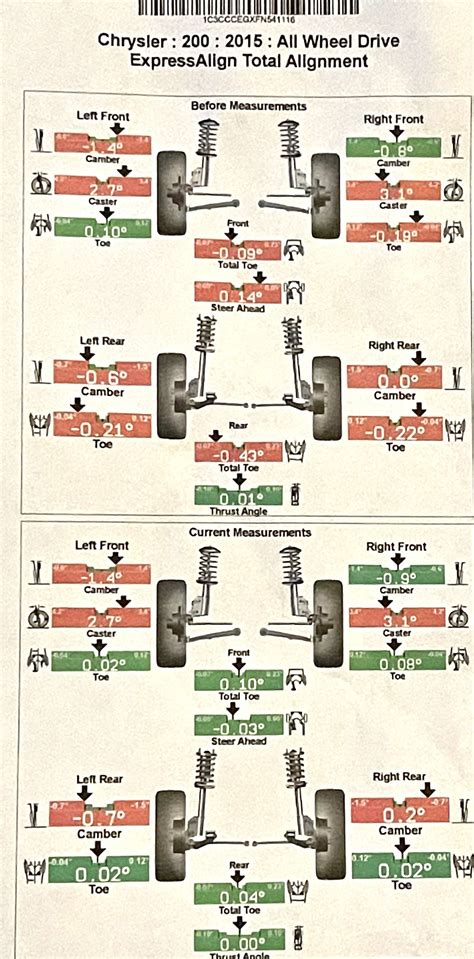

When taking your car for service, do not hesitate to ask your technician for a "before and after" printout of your alignment readings. This transparency allows you to see exactly where your caster was set and provides peace of mind that the work was performed to the necessary precision. By prioritizing these subtle angles, you ensure that your vehicle remains a reliable partner on the road for years to come.
Achieving the perfect balance in your vehicle’s geometry is a testament to the importance of minor adjustments. While Caster Alignment may not be as commonly discussed as tire tread or oil changes, it remains a fundamental pillar of automotive safety and performance. By keeping your steering axis properly calibrated, you ensure a driving experience that is stable, responsive, and secure. Whether you are navigating winding mountain roads or cruising on the interstate, a well-aligned vehicle minimizes driver fatigue and maximizes control. Regularly monitoring these specifications and addressing any signs of instability will save you from costly repairs and keep your vehicle performing at its best throughout its entire lifespan.
