Cat 5 Tester

In the world of networking and structured cabling, maintaining the integrity of your data transmission is paramount. Whether you are a professional IT technician or a dedicated home enthusiast setting up a complex local area network, you have likely encountered intermittent connectivity issues that stem from a simple, poorly crimped cable. This is where a Cat 5 tester becomes an indispensable tool in your kit. By providing immediate feedback on the state of your Ethernet cables, this device saves hours of troubleshooting time, ensuring that every wire in the twisted pair is perfectly aligned, conductive, and free from interference.

Why Every Network Setup Needs a Cat 5 Tester

Networking hardware is only as reliable as the medium through which data travels. Even if you invest in top-tier switches and routers, a compromised Cat 5 or Cat 5e cable can bottleneck your performance to a fraction of its intended speed. A Cat 5 tester is designed to verify the electrical continuity of the copper conductors inside the jacket. Without this verification, you are essentially flying blind when diagnosing network failures.

The benefits of using a dedicated testing device include:

• Identifying wiring faults: It quickly catches common errors like split pairs, crossed wires, or open circuits.
• Saving time and labor: Instead of re-terminating every single connector when a connection fails, you can isolate exactly which wire is broken.
• Verifying speed compatibility: High-end testers can confirm if your cabling is capable of supporting Gigabit speeds, preventing data collisions.
• Professional reliability: Delivering a project with fully verified cabling builds trust with clients, demonstrating that the installation meets industry standards.

Understanding the Basics of Ethernet Cable Anatomy

To use a Cat 5 tester effectively, it helps to understand what the device is actually looking for. Standard Ethernet cables consist of four pairs of twisted copper wires, color-coded according to specific TIA/EIA standards (typically T568B). These wires must be punched down or crimped into an RJ45 connector in a precise sequence.

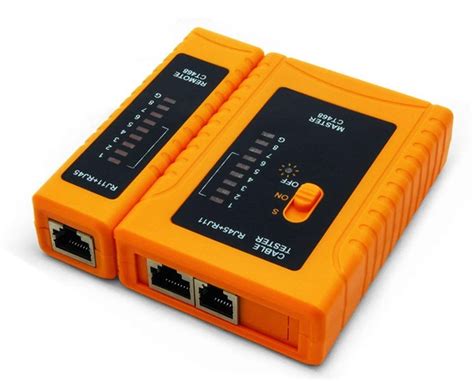

When you plug both ends of a cable into your tester, the device sends a low-voltage electrical pulse down each individual wire. The remote unit—usually the detachable part of the tester—receives these signals and relays them back, allowing the main unit to compare the input and output. If the sequence matches the internal logic of the device, you get a "Pass" result. If any signal is missing or arrives out of order, the tester illuminates specific LEDs to tell you exactly where the break or swap occurred.

Comparison of Common Cable Faults

Below is a quick reference table describing the most common issues detected by testers:

Step-by-Step Guide to Testing Your Cables

Using a Cat 5 tester is straightforward once you follow a consistent workflow. Always begin by inspecting the RJ45 connectors for any visible damage or bent pins before plugging them into the device.

1. Insert one end of the Ethernet cable into the main master unit of the tester.
2. Insert the opposite end of the cable into the remote unit. If the cable is already installed in a wall, use a patch cable to connect the wall jack to the tester.
3. Switch the device to the "Test" or "On" position.
4. Observe the sequential LED lights. They should flash in numerical order from 1 through 8.

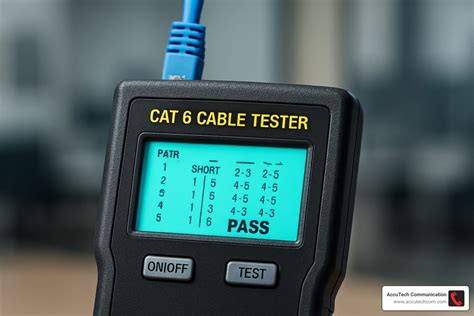

5. If you are using a basic model, look for a constant light sequence. For advanced models with digital displays, check the screen for a "PASS" or "FAIL" message.

💡 Note: Always ensure your device has a fresh battery. Low voltage in the tester itself can cause erratic readings, leading you to believe a good cable is faulty.

Advanced Features to Look For

While basic continuity testers are sufficient for home tasks, those managing larger environments may want to upgrade to models with additional capabilities. Many modern testers include a Tone Generator, which sends an audible signal down the wire. This is incredibly helpful when you have a bundle of cables and need to trace a specific line back to a patch panel or wall port without having to label every single end manually.

Another feature is the Length Measurement function. By using TDR (Time Domain Reflectometry), these devices can tell you exactly how many meters or feet of cable exist before a break occurs. This is invaluable if a cable is damaged inside a wall, as it tells you exactly how far from the outlet you need to cut into the drywall to perform a repair.

Maintenance and Calibration

Treat your Cat 5 tester with care to maintain its accuracy. Keep the RJ45 ports clean and free of dust, as debris can interfere with the physical connection and provide a false "Fail" reading. Additionally, avoid dropping the device, as the internal circuitry is sensitive to mechanical shock. Some professional-grade testers require annual calibration to meet specific building certifications, so check your device manual to see if this is applicable to your model.

In summary, the transition from guesswork to precise verification is the hallmark of a skilled network technician. By incorporating a reliable Cat 5 tester into your routine, you drastically reduce downtime and frustration. Whether you are dealing with a simple home office patch cable or troubleshooting a complex infrastructure, understanding the principles of wire continuity and investing in the right diagnostic equipment ensures that your network remains robust and high-performing. Relying on these tools not only saves you precious time but also grants you the peace of mind that comes with knowing every connection in your system is stable, secure, and ready to handle high-speed data traffic without interruption.
