The Tire Pressure Monitoring System (TPMS) is a critical safety feature in modern vehicles designed to alert drivers when tire pressure drops significantly. While these sensors are built for durability, they eventually reach the end of their battery life or fail due to physical damage or corrosion. When your dashboard light flickers on and remains persistent despite proper inflation, you may need to change TPMS sensor units to restore the system's functionality. Understanding this process can save you significant time and money compared to visiting a dealership for every minor sensor malfunction.
Understanding Why You Need to Change TPMS Sensor

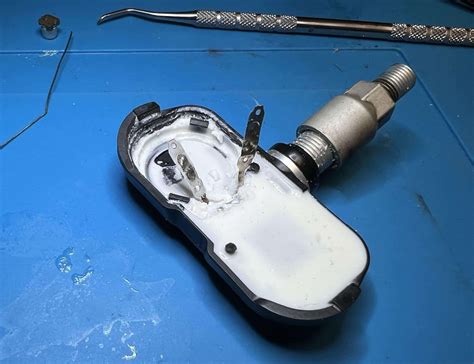

Before diving into the technical procedure, it is important to recognize the indicators that a sensor is failing. Most TPMS sensors rely on internal lithium-ion batteries that last between five and ten years. Once these batteries deplete, the sensor can no longer transmit data to the vehicle’s ECU. Additionally, the valve stems are susceptible to galvanic corrosion, especially in regions that use road salt during winter. If you notice leaks around the valve base, it is time to address the issue.
Replacing these sensors is not merely about clearing a warning light; it is about maintaining optimal vehicle performance. Improper tire pressure leads to uneven tread wear, reduced fuel efficiency, and compromised handling. By choosing to change TPMS sensor components yourself or with professional guidance, you ensure that your vehicle remains safe under various driving conditions.
Tools Required for the Replacement Process
To successfully replace a sensor, you must be prepared with the right equipment. Attempting this without the proper tools can result in damage to your wheels or the sensors themselves. Here is a checklist of items you will likely need:
- A reliable automotive jack and jack stands.
- A lug wrench or impact gun to remove the wheel.
- A tire bead breaker or access to a tire changing machine.
- A valve core removal tool.
- A torque wrench capable of measuring inch-pounds.
- A TPMS scan tool for programming (essential for most modern vehicles).
- Replacement TPMS sensors compatible with your vehicle's make and model.
| Component | Purpose |
|---|---|
| TPMS Sensor | Monitors internal tire pressure and temperature. |
| Valve Stem Kit | Provides the air seal and connects the sensor to the rim. |
| Scan Tool | Communicates with the ECU to register the new sensor ID. |
Step-by-Step Guide to Change TPMS Sensor
The process of replacing a sensor is a multi-step operation that requires patience. First, ensure the vehicle is parked on a flat surface and the parking brake is fully engaged. Once the vehicle is lifted and the wheel is removed, you must deflate the tire completely. Use a valve core tool to remove the internal stem core for faster deflation.
Next, you must break the tire bead away from the rim edge. If you do not have a professional tire machine, a manual bead breaker tool will be necessary. Carefully push the sidewall down just enough to access the retaining nut of the TPMS sensor inside the wheel. Use a wrench to loosen the nut and push the sensor into the tire casing, allowing you to remove it from the outside of the rim.
Install the new sensor by reversing the process. Ensure the rubber gasket is seated properly against the rim to prevent air leaks. Tighten the retaining nut to the manufacturer's specific torque settings, as overtightening can damage the sensor housing. Once the tire is re-seated and inflated, you must perform the electronic handshake. Use your TPMS scan tool to wake up the sensor and input its unique identification number into your car’s computer system.
💡 Note: Always replace the rubber grommets and valve cores whenever you change TPMS sensor hardware to prevent slow leaks that could trigger false warnings later on.
Troubleshooting Common Post-Installation Issues
Even after a successful installation, you might occasionally face issues where the sensor isn't communicating. This often happens because the car's computer is still "looking" for the old sensor ID. Many vehicles feature an automatic relearn procedure, which usually involves driving the car at a consistent speed (typically over 20 mph) for several miles. During this time, the ECU will detect the new signal and update the dash readout.
If the light remains illuminated, double-check that your replacement sensors are the correct frequency (usually 315MHz or 433MHz). Using an incorrect frequency will result in a total lack of communication. If the scan tool shows the sensor is active but the dash light is still on, check the vehicle's manual for a manual reset button, which is often hidden in the glove box or under the steering column.
Best Practices for Maintaining TPMS Longevity
To extend the life of your sensors, avoid using liquid tire sealants (fix-a-flat sprays), as these chemicals can coat the sensor's pressure port and cause it to fail prematurely. Additionally, keep your tire valve caps tightened firmly; they serve as the first line of defense against moisture and road debris entering the valve stem. Regularly checking your tire pressure with a handheld gauge is also a good habit, as it acts as a manual verification that your sensor system is providing accurate data.
Staying proactive about tire maintenance ensures that your vehicle’s safety systems remain effective. By learning the nuances of how to change TPMS sensor units, you empower yourself to handle common maintenance tasks with confidence. Whether you choose to perform the heavy lifting yourself or seek professional assistance, the goal is always to keep the system calibrated and reliable. Through proper installation, correct frequency matching, and diligent maintenance, your tire pressure monitoring system will continue to provide accurate warnings, allowing you to drive with peace of mind knowing your tires are always at the correct pressure.
