We have all been there: you are in the middle of a project, the tools are out, and you are feeling productive, only for the dreaded "crunch" to echo through the shop. You try to tighten a bolt, but it stops abruptly or feels like it is fighting back. You have just experienced the nightmare of being cross threaded. This frustrating mechanical failure occurs when a fastener, such as a bolt or screw, is forced into a threaded hole at an incorrect angle, effectively carving new, incorrect paths through the existing metal. If left unaddressed or forced further, it can lead to permanent damage to both the fastener and the critical component it is meant to secure.
Understanding the Mechanics of a Cross Threaded Fastener
To prevent this issue, it is vital to understand why it happens. Threads are precision-engineered to spiral into each other perfectly. When you start a bolt, the threads must align with the corresponding grooves. If the bolt is held at a slight tilt, the leading edge of the bolt thread will bite into the peaks of the internal thread rather than sliding into the valleys. Because metal is malleable, if you apply torque at this moment, you are essentially reshaping the metal in a way that destroys its integrity. This is common in high-stress environments or when working in tight, dark spaces where visibility is poor.
Several factors contribute to the likelihood of this occurring:
- Lack of lubrication: Friction makes it harder to feel when a thread is catching properly.
- Rushing the process: Using power tools to start a bolt prevents you from feeling the tactile feedback needed for proper alignment.
- Debris in the threads: Dirt, rust, or paint buildup can force the fastener off-center.
- Poor visibility: Working in awkward positions often leads to misaligned tools.
How to Identify Damage Early

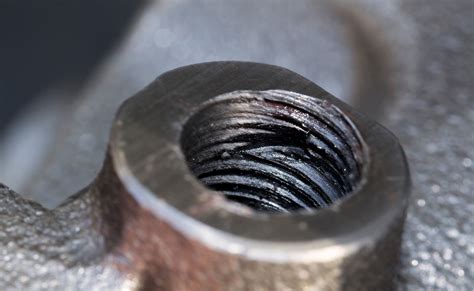

The key to saving your components is catching the problem before you apply excessive torque. If you feel resistance that does not correspond to the tension of a tightened fastener, stop immediately. You should be able to turn most bolts by hand for at least the first few rotations. If you cannot, or if you feel a metallic "grinding" sensation, you are likely cross threaded. Ignoring this resistance and reaching for a wrench or an impact driver will inevitably lead to stripped threads, which are significantly harder and more expensive to repair.
| Indicator | Action to Take |
|---|---|
| Initial resistance before seating | Stop and back out the fastener immediately. |
| Metallic shaving debris | Remove the fastener and clean the hole thoroughly. |
| Loose fitting after tightening | Do not ignore; check for stripped threads. |
| Squealing or loud friction noise | Apply lubricant and restart by hand. |
Steps to Rectify and Repair Threads
If you suspect a hole has been damaged, you have a few options to recover it. Do not attempt to force the original bolt through the damaged area, as this will only worsen the deformation. Instead, follow these professional techniques to restore functionality to your assembly.
1. Clean the Area: Remove all debris from the opening. Use compressed air or a fine brush to clear out any metal shavings caused by the misalignment.
2. Backtrack the Threading: Often, you can use a thread file to straighten the leading threads of the bolt itself. If the bolt is damaged, replace it immediately; it is cheaper to buy a new bolt than to replace an entire engine block or machine part.
3. Use a Thread Chaser: A thread chaser is a tool designed to clean and re-form existing threads without removing excess material. Carefully thread it into the hole, ensuring it stays square to the surface.
4. The Tap and Die Method: If the damage is severe, you may need a tap (for internal threads) or a die (for external threads) to recut the metal paths. This requires careful alignment and consistent pressure to ensure you are following the original thread pitch.
⚠️ Note: Always apply a light coat of thread lubricant or anti-seize when re-threading. This reduces friction and prevents the metal from galling, which is the process of metal-to-metal bonding that makes screws seize permanently.
Preventive Measures for Future Projects
The best way to handle a cross threaded bolt is to prevent it from ever happening. Developing disciplined habits in the shop will save you hours of frustration down the road. Start every fastener by hand—never use a power tool to seat the first few turns. This allows you to feel the threads "click" into place. If you encounter resistance, stop, back the fastener out completely, and check for alignment issues.
Consider these pro tips for your next project:
- Back it up first: Turn the bolt counter-clockwise until you feel a slight "click" or drop; this is the start of the thread meeting the start of the hole. Then, begin turning clockwise.
- Keep components clean: Use a wire brush to clean old bolts before reinstalling them.
- Check thread pitch: Ensure you are using the correct bolt with the correct thread count and diameter for the specific hole.
When the thread damage is beyond the capability of a simple chaser or tap, you might look into installing a thread insert, such as a Helicoil. This involves drilling out the hole slightly larger, tapping it for a new, stronger thread, and installing a metal coil insert. This often results in a connection that is stronger than the original, particularly in soft materials like aluminum. While this requires more effort, it provides a permanent fix for high-stress applications.
Ultimately, dealing with hardware issues is an inevitable part of maintenance and assembly work, but it doesn’t have to be a project-ending disaster. By maintaining a slow, methodical approach—especially during the initial stages of installation—you can protect the delicate threads of your equipment. Always prioritize tactile feedback over speed. If you find yourself in a situation where a fastener has been forced, assess the damage calmly, utilize the correct cleaning and cutting tools, and do not hesitate to replace hardware that shows signs of excessive wear. Patience is truly the most effective tool in any workshop, ensuring that every bolt, nut, and screw is seated perfectly to hold your work securely for years to come.
