Cylinder Leak Down Test

When your engine begins to lose power, misfire, or consume excessive oil, it is often a sign that the internal sealing of the combustion chamber has been compromised. While a standard compression test can tell you *that* you have low pressure, it doesn't always reveal the *why*. This is where the Cylinder Leak Down Test becomes an indispensable tool for every serious mechanic and DIY enthusiast. By pumping compressed air into the cylinder at top dead center, you can pinpoint exactly where the pressure is escaping, allowing for a precise diagnosis of worn rings, burnt valves, or failed head gaskets.

Understanding the Mechanics of a Leak Down Test

Unlike a traditional compression test which relies on the engine's starter motor to turn the crankshaft, the Cylinder Leak Down Test is a static procedure. It measures the rate at which a pressurized cylinder loses air over a set period. Think of it as a pressure gauge for your engine’s internal integrity. If your engine is healthy, the air will be trapped securely, resulting in minimal leakage. If there is a fault, the escaping air will create audible cues—hissing sounds—that point directly to the culprit.

This diagnostic process is highly effective because it bypasses the variables of starter speed, battery voltage, and throttle opening. By isolating a single cylinder, you can determine the overall health of the engine block, pistons, and valve train with surgical precision.

Tools Required for the Procedure

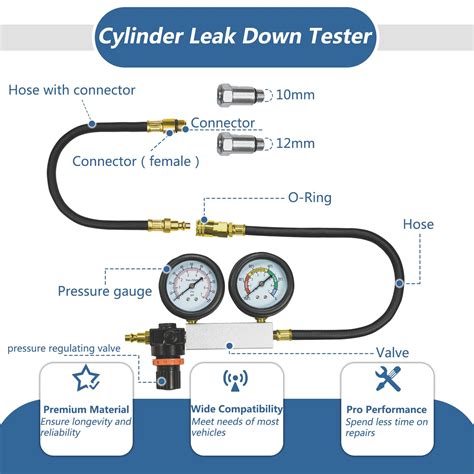

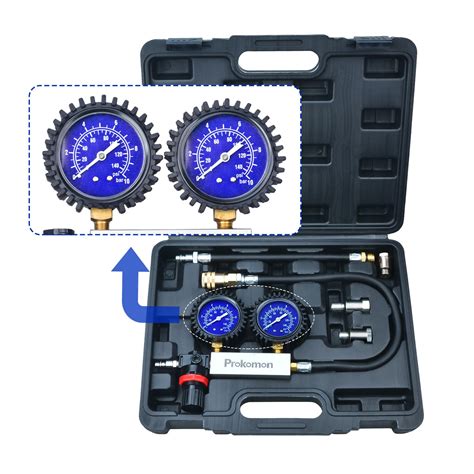

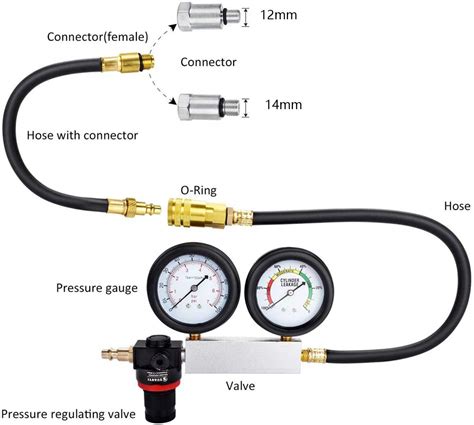

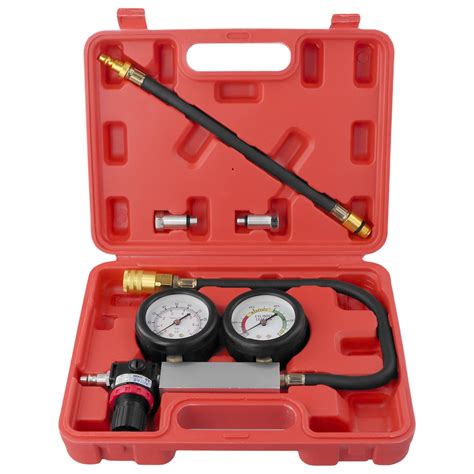

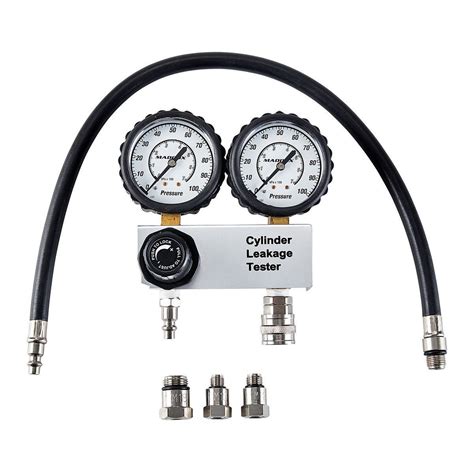

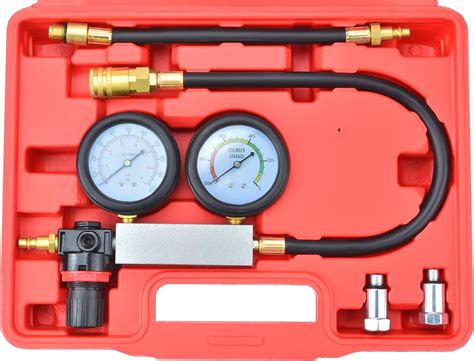

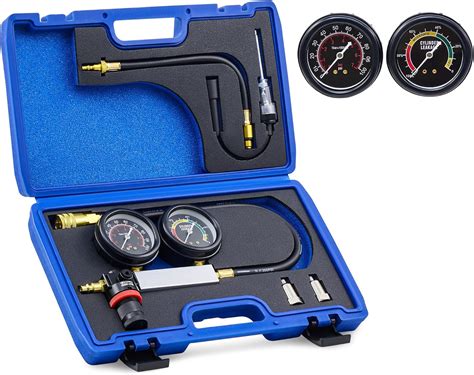

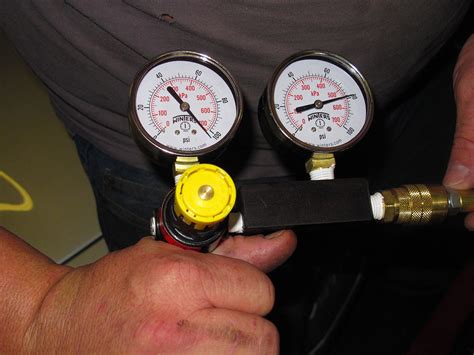

To perform this test correctly, you will need a specialized leak down tester kit. A basic kit typically includes a dual-gauge manifold, a high-pressure hose, and adapters to fit various spark plug hole sizes. You will also need a reliable air compressor capable of maintaining at least 100 PSI.

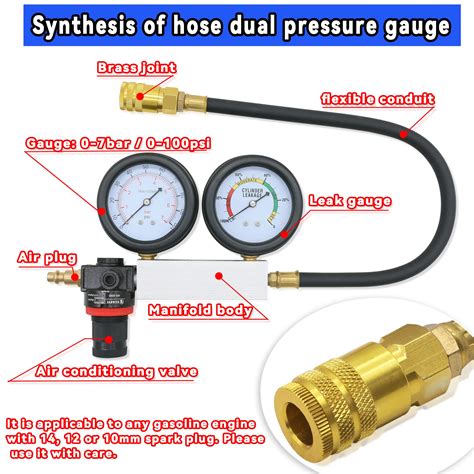

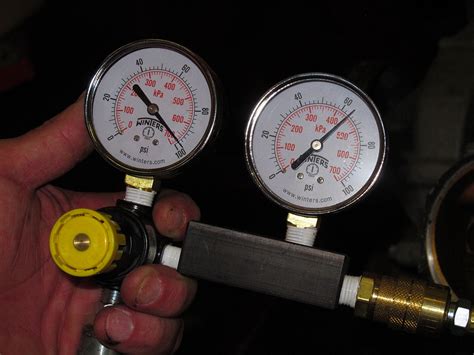

• Dual-Gauge Leak Down Tester: One gauge measures the input pressure, and the other measures the percentage of leakage.
• Air Compressor: Must have an adjustable regulator to control output pressure.
• Socket and Ratchet: Needed to rotate the crankshaft manually.
• Remote Starter Switch (Optional): Useful if you need to bump the engine to reach top dead center (TDC).
• Safety Glasses: Always protect your eyes when working with pressurized systems.

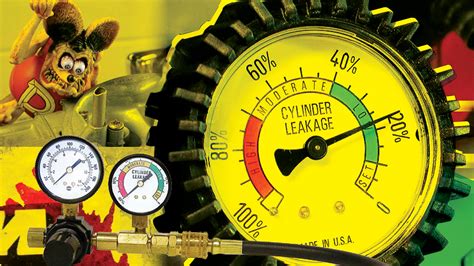

Interpreting Leak Down Results

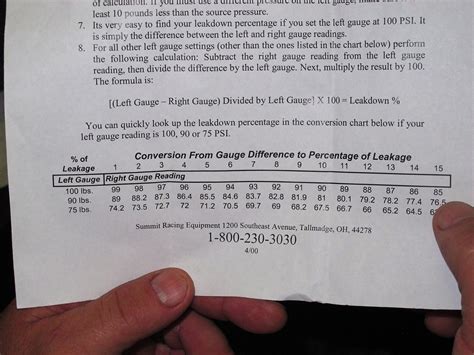

The percentage shown on your gauge is the primary indicator of engine health. While every engine has a slight amount of "blow-by," excessive leakage is a clear warning sign of mechanical wear. Use the following table as a general guideline for interpreting your results:

⚠️ Note: Always ensure the engine is at operating temperature if possible, as this allows the piston rings and valve seals to expand to their working size, providing a more accurate reading.

Step-by-Step Execution

Performing a Cylinder Leak Down Test requires patience and attention to detail. Follow these steps to ensure safety and accuracy:

1. Warm the Engine: A warm engine provides the most accurate results by ensuring components are at their operating dimensions.
2. Remove Spark Plugs: Remove all spark plugs to make the engine easier to rotate by hand.
3. Set Cylinder to TDC: Rotate the crankshaft so the piston you are testing is at Top Dead Center (TDC) on the compression stroke. This ensures both intake and exhaust valves are closed.
4. Calibrate the Tester: Connect your leak down tester to your air compressor, but keep the hose disconnected from the engine. Adjust the regulator until the gauge reads 0% leak (or 100% pressure).

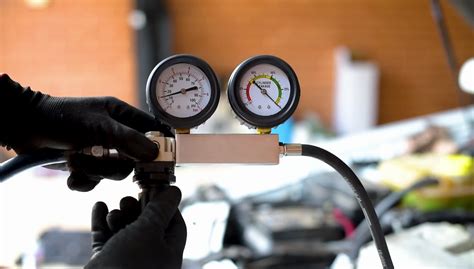

5. Connect to Cylinder: Thread the hose into the spark plug hole and connect it to the tester manifold.
6. Read the Gauge: Observe the second gauge. The drop in pressure indicates the leakage percentage.
7. Listen for Leaks: Listen to the exhaust pipe, the intake manifold, and the oil fill cap to identify where the air is escaping.

Identifying Common Failure Points

Once you have identified that a cylinder is leaking, your ears are your best diagnostic tool. The location of the hissing sound tells the story:

• Hissing from the Exhaust Tailpipe: This indicates a burnt or improperly seating exhaust valve.
• Hissing from the Intake/Throttle Body: This points to a compromised intake valve.
• Hissing from the Oil Fill Cap or Dipstick Tube: This is a classic sign of worn piston rings or a scored cylinder wall, allowing air to escape into the crankcase.
• Bubbles in the Radiator: If you see bubbles, you likely have a blown head gasket that is allowing air to push into the cooling system.

💡 Note: Always be mindful of the cooling fan and belt systems. Disconnect the battery or disable the ignition system during the test to prevent the engine from accidentally turning over.

Maintaining Engine Longevity Through Testing

Regular diagnostic checks, such as the Cylinder Leak Down Test, are essential for extending the life of your vehicle. By catching small issues—like a slightly burnt valve—early, you can often perform minor repairs before they escalate into a catastrophic failure requiring a full engine rebuild. Maintaining consistent oil changes and using high-quality fuel helps minimize carbon buildup on the valves and prevents ring sticking, both of which are common causes of high leak-down percentages.

Ultimately, the ability to interpret your engine’s internal condition through this test empowers you to make informed decisions about your vehicle’s maintenance. Whether you are troubleshooting a sudden loss of power or performing a routine inspection on a high-mileage engine, the data provided by a leak down test is invaluable. By understanding the health of your combustion chambers, you ensure that your engine continues to run efficiently, reliably, and powerfully for many miles to come. Remember that a proactive approach to automotive health is always more cost-effective than waiting for a roadside breakdown, so keep your diagnostic tools ready and your engine health a top priority.
