In the vast landscape of microscopy, the Dark Field Microscope stands out as a unique and essential tool for observing specimens that are otherwise difficult to visualize under standard brightfield illumination. By manipulating the path of light, this technique allows researchers, biologists, and hobbyists to observe living organisms in their natural state without the need for chemical stains or dyes that could potentially kill or distort the sample. The principle behind this technology is elegantly simple yet remarkably effective: it eliminates the direct light that would normally flood the field of view, allowing only light scattered by the specimen to reach the objective lens.
The Fundamental Principles of Dark Field Microscopy

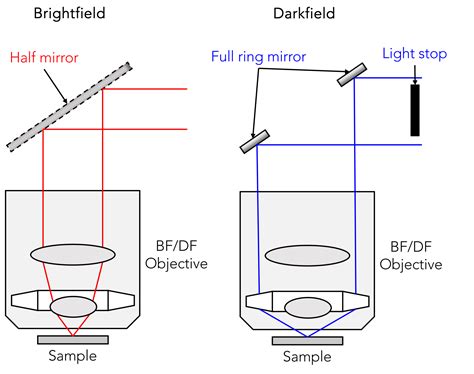

At its core, a Dark Field Microscope operates by using a specialized condenser that directs light at an oblique angle toward the specimen. Unlike conventional microscopy, where light passes directly through the sample, here the light rays hit the specimen from the side. If no specimen is present, the light misses the objective lens entirely, resulting in a dark background. However, when a specimen is placed on the slide, the structures within it scatter the light into the objective lens, causing the object to appear brightly illuminated against a pitch-black backdrop.
This contrast-enhancing technique is particularly useful for observing:
- Unstained biological samples: Perfect for viewing bacteria, protozoa, and yeast.
- Thin, transparent specimens: Ideal for visualizing spirochetes, such as those responsible for Lyme disease or syphilis.
- Living cell structures: Allows for the observation of internal movement, flagella, and cilia in real-time.
- Crystalline materials: Helpful in mineralogy and forensic science to identify inclusions and fractures.
Components and Hardware Configuration
To convert a standard microscope into a Dark Field Microscope, specific modifications or dedicated equipment are required. The most critical component is the dark field condenser. This piece of equipment contains an opaque stop that blocks the central light rays, ensuring that only the peripheral light reaches the specimen. Without this crucial hardware, the contrast necessary for this technique simply cannot be achieved.
| Component | Function in Dark Field |
|---|---|
| Light Source | Provides the illumination required for the pathway. |
| Dark Field Condenser | Blocks central light to create an oblique angle. |
| Objective Lens | Collects only the scattered light from the specimen. |
| Opaque Stop | Ensures no direct light hits the field of view. |
⚠️ Note: High numerical aperture (NA) objectives can interfere with dark field imaging; it is often recommended to use an iris diaphragm or a lower NA objective for the best results.
Advantages Over Brightfield Microscopy
The primary benefit of using a Dark Field Microscope is the ability to view specimens in their living state. Chemical staining, which is mandatory in brightfield microscopy to create contrast, often kills the specimen or alters its physical properties. By bypassing the need for stains, dark field imaging provides a more accurate representation of how an organism behaves in its natural environment.
Furthermore, this technique reveals details that are often invisible under standard magnification. The high contrast achieved makes the edges and internal boundaries of cells pop, allowing observers to track minute movements or structural shifts that would otherwise remain hidden in the glare of a brightfield image.
Step-by-Step Guide to Achieving a Dark Field Image
Achieving the perfect dark field image requires a balance of proper alignment and light intensity. If you are setting up your equipment for the first time, follow these steps:
- Start with Brightfield: Ensure your specimen is focused correctly using standard brightfield illumination first.
- Install the Condenser: Replace your standard condenser with the dark field unit or insert the dark field stop into your current condenser.
- Adjust Light Intensity: Because the light path is restricted, you will need to significantly increase the intensity of your light source to compensate for the lost photons.
- Center the Condenser: Use the adjustment screws on the condenser to center the light ring; this is crucial for an even, dark background.
- Final Focus: Observe through the eyepieces and fine-tune the focus until the specimen appears as a glowing object against a dark void.
💡 Note: Always ensure that your slides and coverslips are clean and free of fingerprints, as dust and oils will scatter light and create "noise" in your dark field image.
Common Applications in Modern Science
The utility of the Dark Field Microscope extends far beyond academic biology labs. In the clinical setting, it remains a gold standard for the rapid identification of specific pathogens. The distinct, corkscrew-like motion of spirochetes is easily identified using this method, providing a faster diagnosis than waiting for culture results. In the world of hematology, some practitioners use dark field techniques to observe the morphology of blood cells, noting that it provides a different perspective on cell integrity compared to traditional slide staining.
In industrial and environmental science, this type of microscopy is utilized to detect nanoparticles or micro-contaminants in water supplies. Because the scattered light makes even tiny, transparent particles stand out, it is an efficient way to monitor quality and detect impurities that might pass unnoticed under standard lighting conditions.
Maintenance and Troubleshooting
Because the Dark Field Microscope relies heavily on the quality of light transmission, maintaining your optical components is essential. Regularly inspect your lenses for dust. Even a small piece of lint can appear as a massive, distracting obstruction in the dark field. If your background is not perfectly black, it usually indicates that the condenser is slightly off-center or that the numerical aperture of the objective lens is too high, allowing some direct light to bypass the central stop.
If you find that the image is too dim, consider checking your bulb intensity or ensuring that the objective lens is fully compatible with the dark field condenser. Some specialized condensers are designed specifically for certain objective ranges; using the wrong combination will inevitably lead to suboptimal contrast.
Final thoughts on this imaging technique reveal its enduring importance in modern observation. By shifting our perspective from transmitted light to scattered light, we gain an unparalleled view of the microscopic world’s hidden details. Whether used for diagnosing infectious diseases, studying the vitality of living cells, or performing high-resolution material inspections, the dark field approach remains a vital bridge between the visible and the invisible. Its ability to provide crisp, high-contrast imagery without chemical intervention ensures that it will continue to be a staple in research and diagnostic fields for years to come. By mastering the setup and understanding the underlying physics, any researcher can unlock a more vibrant and detailed look at the organisms and structures that constitute the microscopic universe.
