In the vast world of biological imaging, Dark Field Microscopy stands out as a unique technique that allows scientists to observe living organisms and delicate structures without the need for harsh staining or dyes. Unlike standard bright-field microscopy, which transmits light directly through the specimen, this method relies on scattered light to illuminate the subject against a pitch-black background. This approach creates a high-contrast image where the specimen appears luminous and detailed, almost like stars shimmering in the night sky. By blocking the direct light path and focusing only on the oblique rays that hit the edges of the specimen, researchers can uncover hidden details in transparent organisms that would otherwise remain invisible.
The Physics Behind Dark Field Microscopy

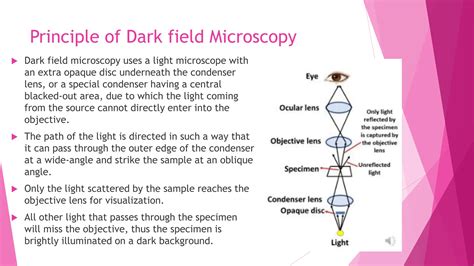

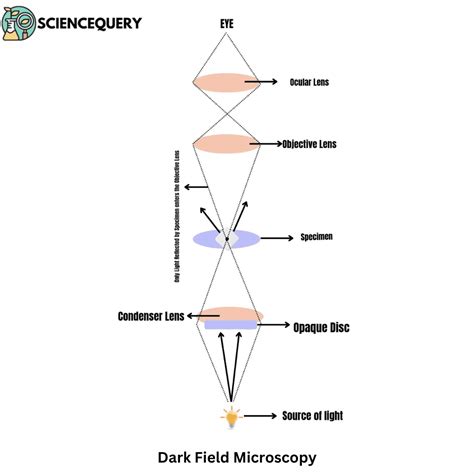

At its core, Dark Field Microscopy utilizes a specialized condenser that prevents direct light from entering the objective lens. Instead, the light hits the specimen at an angle. If the light does not strike an object, it continues into the "dark" space outside the aperture of the lens. However, when light hits a structure within the sample—such as the membrane of a cell or a tiny bacterium—it scatters. This scattered light then enters the objective lens, rendering the object visible as a bright silhouette against a dark background.
This technique is particularly useful for observing samples that have low inherent contrast, such as:
- Living bacteria and protozoa that are transparent.
- Unstained cell cultures in developmental biology.
- Fine fibers, hair, or small crystals.
- Colloidal particles that are otherwise too small to detect.
Advantages of Using Dark Field Imaging
The primary benefit of utilizing this method is the ability to maintain the integrity of living samples. Many traditional techniques require fixation and chemical staining, which often kill the organisms or distort their natural morphology. Dark Field Microscopy provides a non-invasive way to observe biological life cycles, movement, and interactions in real-time.
| Feature | Bright-field Microscopy | Dark Field Microscopy |
|---|---|---|
| Background | Bright/White | Black/Dark |
| Contrast Source | Absorption of light | Light scattering |
| Staining Needed | Often required | Rarely required |
| Ideal For | Fixed, stained tissue | Living, unstained samples |
How to Set Up Your Microscope for Dark Field

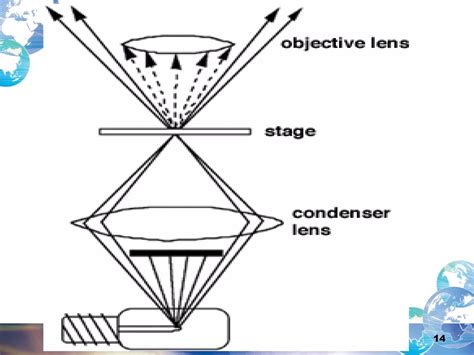

Converting a standard light microscope to perform Dark Field Microscopy is often achievable by simply adding a dark-field stop or an opaque disc to the condenser. This physical barrier blocks the central rays of light while allowing peripheral rays to pass through the condenser lens at an oblique angle.
- Remove the standard aperture diaphragm filter if possible.
- Place a circular opaque disc (the dark-field stop) in the filter carrier beneath the condenser.
- Ensure the light source is bright enough to compensate for the light loss caused by the stop.
- Adjust the condenser height until the sharpest contrast is achieved on your specimen.
- Use an objective lens with a lower numerical aperture (NA) than the condenser to ensure that the direct, non-scattered light is completely blocked.
💡 Note: If the numerical aperture of your objective lens is too high, the direct light may bleed into the field of view, causing a haze. Always use an iris diaphragm on the objective lens if available to reduce the NA for better results.
Applications in Modern Science and Diagnostics
Beyond classroom observation, this imaging method plays a crucial role in medical diagnostics and material science. For example, in microbiology, it is the gold standard for identifying the spirochete Treponema pallidum, the causative agent of syphilis. Because these bacteria are exceptionally thin and do not react well to traditional Gram staining, Dark Field Microscopy is often the only reliable method to visualize them in fresh samples.
In the field of material science, this technique is used to inspect integrated circuits, silicon wafers, and thin films. Since these materials can be highly reflective, the scattered light from edge defects or surface scratches becomes brilliantly visible, making it easier for quality control inspectors to identify manufacturing flaws that would be missed under standard lighting.
Addressing Common Limitations
While powerful, there are limitations to Dark Field Microscopy. Because the image relies on scattered light, any dust or scratches on the microscope slide will also appear bright and may interfere with the observation of the specimen. It is vital to maintain pristine slide preparation.
- Slide Cleanliness: Any debris on the coverslip will scatter light, creating "noise" in your image.
- Light Intensity: Because much of the light is blocked, you will need a more powerful light source (like a high-intensity LED) compared to standard microscopy.
- Thickness Constraints: If the sample is too thick, the light will scatter excessively, leading to a blurry, overly bright image that masks internal details.
💡 Note: Always use a thin specimen and high-quality mounting media to avoid refraction issues that could distort the final image quality.
Refining Your Imaging Workflow
To master this technique, practitioners should focus on balancing the light intensity and the condenser adjustment. It is a subtle art that rewards patience. When you successfully align the system, the clarity of the specimen’s movement—the twitching of a flagellum or the internal streaming of cytoplasm—becomes clear. This visceral connection to the living world is what draws researchers and enthusiasts alike to refine their skills in Dark Field Microscopy. By constantly experimenting with different condenser settings and objective lenses, you can uncover a level of biological detail that remains hidden to the casual observer.
Ultimately, the versatility of this imaging approach remains unmatched for those seeking to visualize the invisible without causing harm to the subject. By shifting the perspective from transmitted light to light scattering, we open a window into a hidden world of biological activity and structural integrity. Whether used for detecting minute clinical pathogens or analyzing delicate environmental samples, this method proves that even with simple tools, the right light can reveal profound truths. As technology continues to integrate high-resolution cameras and digital imaging software with these traditional optical techniques, the potential for discovery continues to expand, cementing this practice as an essential pillar of laboratory science.
