Dew Point Graph

Understanding the relationship between temperature and humidity is essential for various industries, from HVAC engineering and agriculture to meteorology and industrial manufacturing. One of the most effective tools used to visualize this relationship is the dew point graph. By plotting these data points, professionals can predict condensation risks, manage air quality, and optimize climate control systems. If you have ever wondered how moisture behaves in the air or why your windows fog up on a cold morning, this guide will walk you through the science, the application, and the interpretation of these critical charts.

Table of Contents

What Exactly Is a Dew Point Graph?

A dew point graph, often represented as a Psychrometric Chart or a specific vapor pressure curve, illustrates the temperature at which air becomes saturated with water vapor. When air cools to this specific temperature—the dew point—it can no longer hold all of its water vapor, and the excess moisture condenses into liquid water (dew). The graph serves as a visual map, showing the threshold where moisture transitions from an invisible gas to visible droplets.

The X-axis typically represents the dry-bulb temperature, while the Y-axis represents the moisture content (humidity ratio). By mapping these two variables, the dew point graph reveals the state of the air. This is crucial because, at any given temperature, the amount of moisture the air can hold is finite. Once that limit is reached, the relative humidity hits 100%, and condensation is inevitable.

Why Is Tracking Dew Point Essential?

Monitoring the dew point is often more reliable than simply looking at relative humidity (RH). While RH is a percentage that changes as the temperature shifts, the dew point remains a constant measurement of the actual amount of water vapor in the air. This distinction makes the dew point graph a preferred tool for several sectors:

HVAC Systems: Engineers use these charts to design cooling coils that effectively remove humidity from indoor spaces.
Industrial Manufacturing: In environments like paint shops or electronics assembly, high dew points can lead to catastrophic defects caused by condensation.
Meteorology: Forecasters use these graphs to predict fog, frost, and the probability of precipitation.
Food Storage: Maintaining specific dew points prevents mold growth and ensures the shelf life of perishable goods.

Interpreting the Data Points

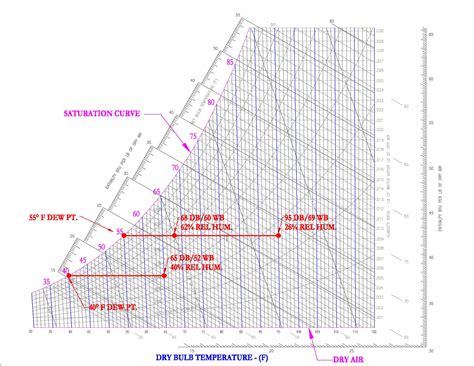

To read a dew point graph, you must understand how the different lines interact. The curved lines represent constant relative humidity, while the horizontal or sloped lines represent the dew point temperature. When you identify the current temperature and humidity levels, you can trace them to the point where they intersect on the chart.

The following table provides a quick reference for understanding the relationship between air temperature and the condensation threshold:

Dry Bulb Temperature (°C)	Relative Humidity (%)	Dew Point Temperature (°C)	Condensation Risk
20	50%	9.3	Low
20	80%	16.4	Moderate
25	90%	23.2	High
15	40%	1.5	Negligible

Common Challenges in Humidity Management

Managing moisture levels isn't just about reading a graph; it is about taking action based on that data. One of the biggest challenges is "latent load," which is the energy required to remove water vapor from the air. When an HVAC system is undersized, the dew point graph will show that the air remains saturated, leading to a "clammy" indoor feeling, even if the temperature is comfortable.

Conversely, in extremely dry environments, low dew points can lead to static electricity buildup and respiratory discomfort. By utilizing a dew point graph regularly, facility managers can adjust humidification systems to keep the air within the "comfort zone"—typically between 30% and 50% relative humidity, depending on the ambient temperature.

Best Practices for Accurate Readings

For those looking to optimize their environment, accuracy is paramount. Whether you are using digital sensors or traditional psychrometers, follow these steps to ensure your data points are reliable:

Placement: Place sensors away from direct sunlight, vents, or heat-generating equipment.
Consistency: Record data at the same time each day to establish a baseline for your specific environment.
Integration: If possible, feed your sensor data directly into software that generates a real-time dew point graph, allowing for automated alerts when levels approach a danger zone.

💡 Note: In industrial settings, consider the presence of chemicals or dust, as these particles can foul humidity sensors and skew the readings on your dew point graph over time.

Advanced Applications and Future Trends

As smart building technology advances, the use of the dew point graph is becoming more automated. Modern Building Management Systems (BMS) now use algorithms to calculate the dew point instantaneously. This allows for predictive maintenance, where the system adjusts airflow before condensation can even form on sensitive hardware. Furthermore, in agricultural greenhouses, precise control over the dew point prevents plant diseases, as many pathogens thrive specifically in high-humidity, high-condensation environments.

The science of psychrometrics has transitioned from academic charts on paper to dynamic, digital tools that monitor climate stability in real-time. By mastering the dew point graph, you gain the ability to master your environment, whether you are preserving historical artifacts in a museum, maintaining precision in a data center, or simply ensuring a comfortable home living space.
