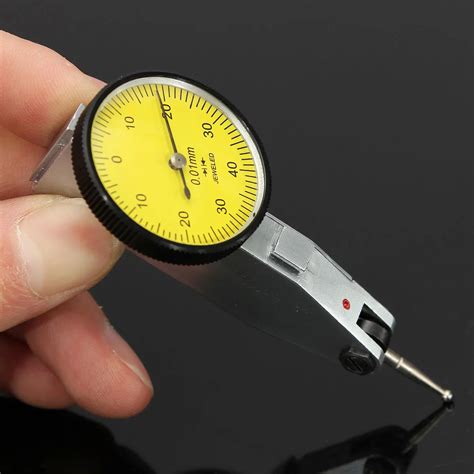

In the world of precision engineering and manufacturing, achieving exact measurements is the cornerstone of quality control. Whether you are calibrating machine tools, checking the flatness of a surface, or verifying the alignment of rotating parts, the Dial Gauge Indicator serves as an indispensable tool. Often referred to as a dial test indicator or clock gauge, this device transforms small linear movements of a spindle into readable rotational movements on a dial face. By understanding how to properly use and maintain this instrument, machinists and quality control technicians can ensure that every component meets rigorous design specifications.

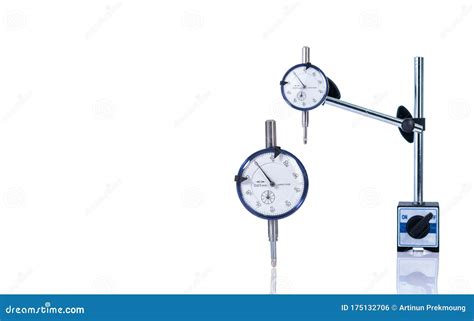

Understanding the Mechanics of a Dial Gauge Indicator
The Dial Gauge Indicator operates on a relatively simple yet highly effective mechanical principle. At its core, it features a plunger or spindle that moves linearly against a spring-loaded tension. This movement is transmitted through a series of internal gears and racks, which amplify the displacement. The final result is displayed on a circular scale, where a needle rotates to indicate the magnitude of the measurement. These tools are typically designed for comparative measurements, meaning they are used to check deviations from a set standard rather than measuring absolute dimensions from zero.

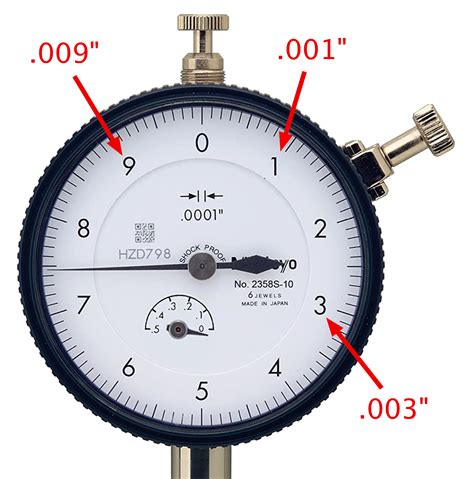

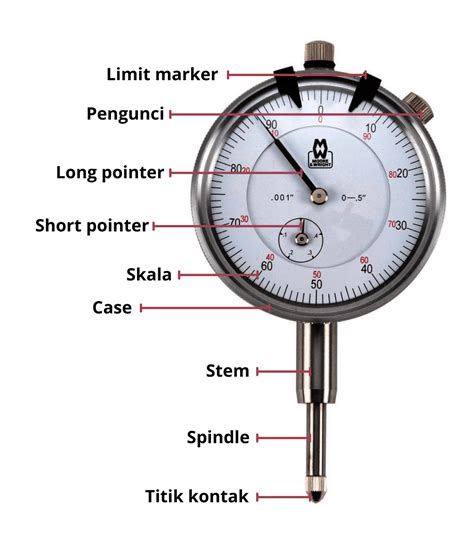

To truly grasp how these devices function, it helps to look at the anatomy of the instrument:
- Spindle: The contact point that physically touches the workpiece.
- Bezel: A rotatable ring around the dial face that allows the user to set the zero point.
- Main Dial: The primary scale that shows the increments of measurement (usually in thousandths of an inch or millimeters).
- Revolution Counter: A smaller secondary dial that tracks how many full rotations the main hand has made.
Key Applications in Precision Machining
Because of its versatility, the Dial Gauge Indicator is found in virtually every machine shop, laboratory, and quality assurance department. Its primary purpose is to detect minute variations that would be impossible to see with the naked eye. Common applications include checking the run-out of a lathe spindle, verifying the flatness of a surface plate, and ensuring the parallelism of a workpiece in a milling vise.

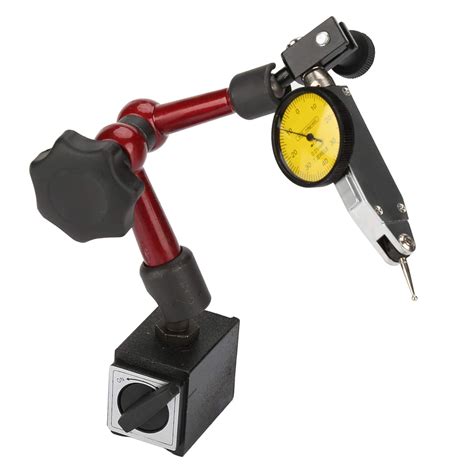

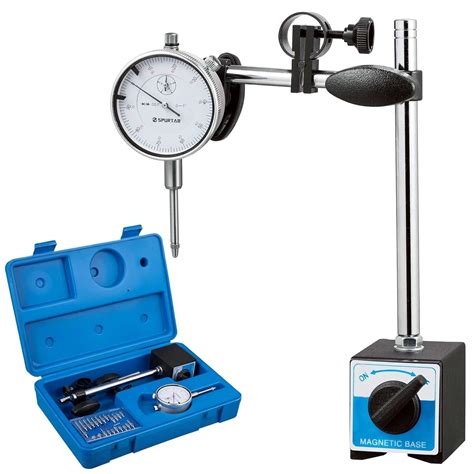

When using the indicator for alignment, accuracy is paramount. A common mistake is failing to secure the device firmly. A stable magnetic base or a heavy-duty clamping arm is essential to prevent vibrations or shifting during the measurement process, which could lead to false readings.
| Application | Purpose | Tolerance Range |
|---|---|---|
| Run-out Check | Measure axial or radial deviation | Low (0.001mm - 0.01mm) |
| Flatness Testing | Verify surface uniformity | Moderate (0.01mm - 0.05mm) |
| Alignment | Positioning parts or machines | Variable |
Best Practices for Accurate Measurement
Achieving consistent results with a Dial Gauge Indicator requires a disciplined approach. Even the most expensive instrument will provide unreliable data if the setup is incorrect. Before beginning any inspection, ensure that the contact point of the spindle is clean and free of debris. Any speck of dust or oil residue can interfere with the sensitivity of the probe, leading to inaccurate readings.
Follow these steps to ensure high-precision results:
- Mounting: Use a rigid stand. If the stand flexes under pressure, the indicator will not measure the part accurately.
- Zeroing: Place the spindle against your reference gauge block or master part and rotate the bezel until the needle aligns with zero.

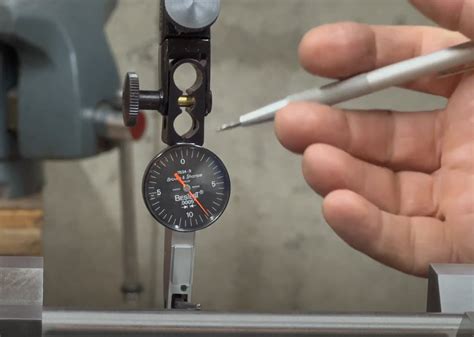

- Sweep: Move the indicator smoothly across the surface being tested. Avoid jerky motions that might cause the internal mechanism to stick.
- Reading: Note the maximum and minimum deviations during the sweep. The total difference between these two points is your total indicator reading (TIR).
⚠️ Note: Always apply a slight pre-load to the spindle. This ensures that the instrument maintains constant contact with the surface throughout the entire measurement range, preventing the needle from losing its reference point.
Common Maintenance and Calibration Tips
To prolong the lifespan of your Dial Gauge Indicator, treat it as a precision instrument rather than a general-purpose tool. Never force the spindle manually if it feels stuck; instead, gently clean the shaft with a lint-free cloth and a light application of instrument oil. If the gauge suffers a hard drop, it must be sent for recalibration, as the delicate internal gear teeth can easily become misaligned or chipped.
Routine maintenance should include:
- Checking the movement of the spindle for smooth, friction-free travel.
- Inspecting the contact point for wear or pitting; replace if necessary to prevent surface marring.

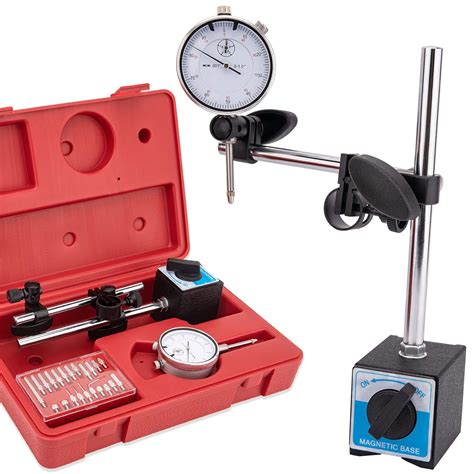

- Keeping the device in a protective case when not in use to shield it from dust, humidity, and accidental impacts.

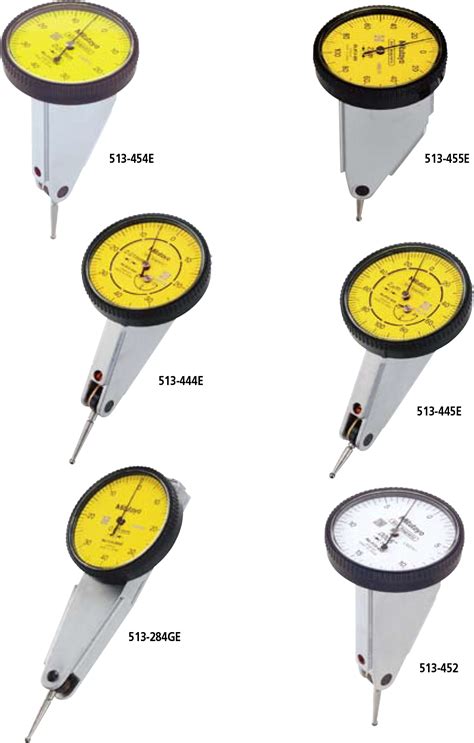

Selecting the Right Indicator for Your Needs

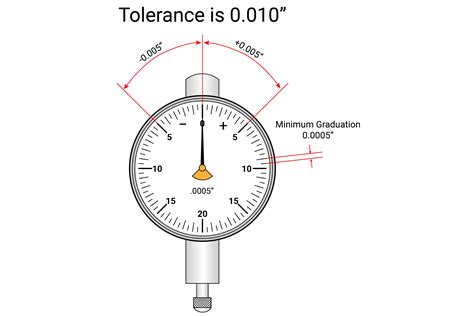

When selecting a Dial Gauge Indicator, consider the graduation size and the travel distance. A tool with 0.01mm graduations is sufficient for general workshop tasks, whereas high-precision tasks may require a tool capable of reading 0.001mm. Additionally, consider the environment in which you will be working. Some models are specifically designed to be "proof" against coolants and oils, which is a vital feature if the device is frequently used near a CNC machine where liquids are constantly sprayed.

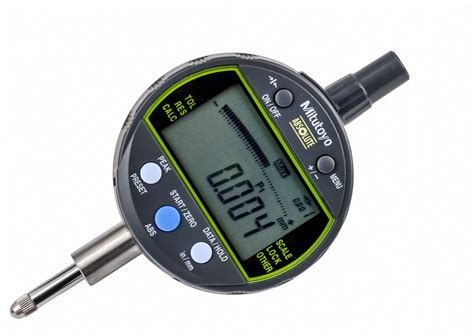

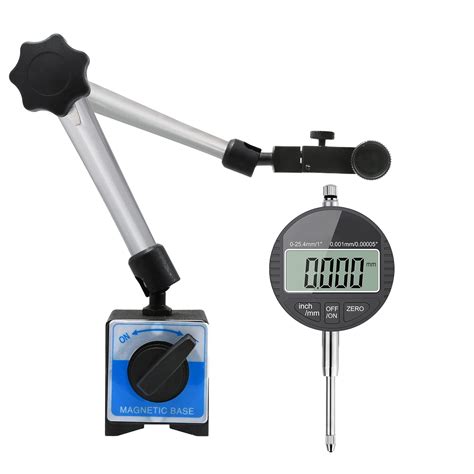

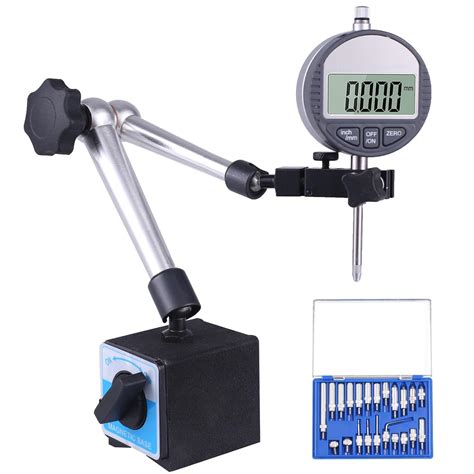

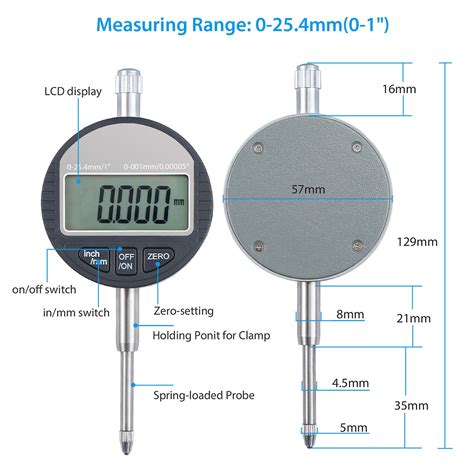

Digital indicators are also an option for those who prefer instant electronic readouts. These provide the same level of accuracy as their mechanical counterparts but often include data output ports that allow you to feed measurement results directly into a computer for statistical process control. However, many master machinists still prefer the analog dial for its intuitive visual representation of fluctuations, which can often be "felt" through the needle's movement better than a rapidly changing digital number.
By mastering the use of the dial gauge, professionals can bridge the gap between rough manufacturing and high-end engineering. Whether you are inspecting the critical tolerances of an engine block or ensuring the perfect alignment of a woodworking jig, the consistency offered by these tools is unparalleled. Always prioritize setup stability, maintain a clean workspace, and ensure regular calibration checks to keep your measurements reliable. Investing time in understanding these nuances will ultimately lead to higher quality outputs, reduced scrap rates, and a deeper technical proficiency in your craft.
