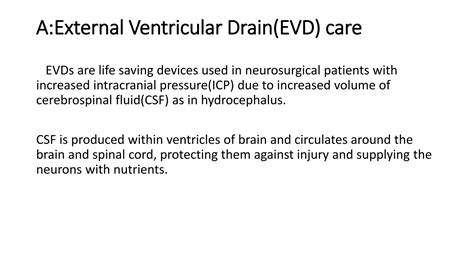

In the field of neurocritical care, the management of intracranial pressure (ICP) is a cornerstone of patient survival and neurological recovery. Among the various therapeutic interventions available to clinicians, the E V D, or External Ventricular Drain, stands out as both a vital diagnostic tool and a life-saving therapeutic device. When a patient experiences acute hydrocephalus, traumatic brain injury, or subarachnoid hemorrhage, the ability to monitor ICP in real-time while simultaneously draining cerebrospinal fluid (CSF) is paramount. Understanding how this system functions, its clinical indications, and the rigorous care required for patients with these devices is essential for healthcare professionals and students alike.

Table of Contents

Understanding the Mechanics of an E V D

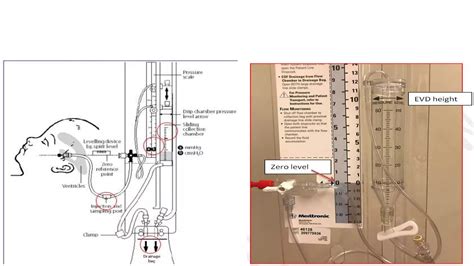

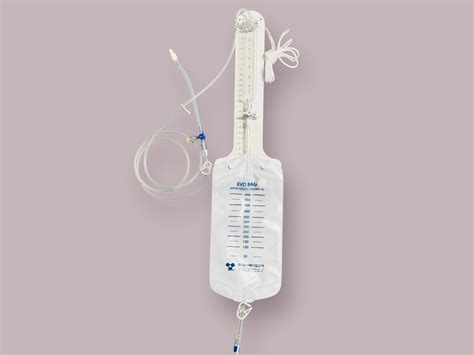

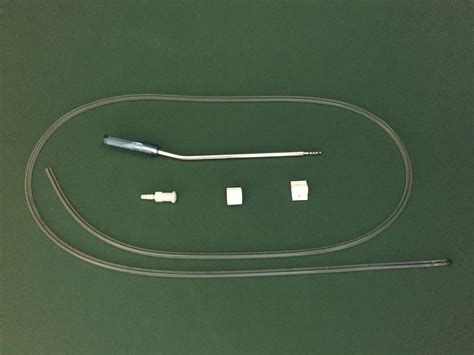

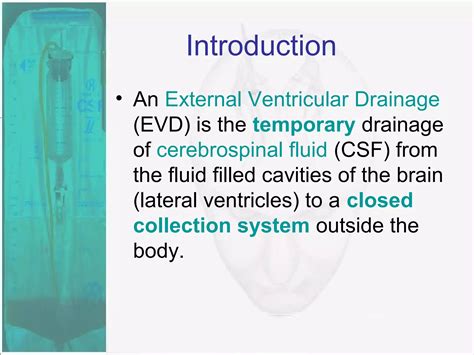

At its core, an E V D is a specialized catheter inserted surgically into the lateral ventricles of the brain. The primary objective is to allow for the continuous drainage of CSF, which helps to alleviate high intracranial pressure that can otherwise lead to brain herniation or permanent damage. The system functions through a gravity-based mechanism, where the height of the drainage chamber is meticulously adjusted relative to a specific anatomical landmark—typically the tragus of the ear—to ensure the precise amount of fluid is removed without over-draining.

The system is closed, which significantly reduces the risk of infection compared to open systems, though strict aseptic technique remains mandatory throughout the device's lifecycle. By monitoring the ICP waveforms, clinicians can gain invaluable insights into the patient's intracranial dynamics, allowing for immediate adjustments in care based on real-time data.

Indications for Usage

The decision to insert an E V D is never taken lightly and is reserved for situations where the brain's regulatory mechanisms are overwhelmed. Common clinical scenarios necessitating this intervention include:

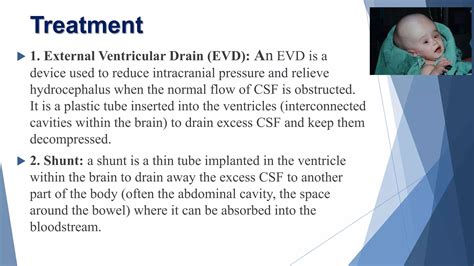

Acute Hydrocephalus: A blockage in the normal flow of CSF, causing a rapid increase in pressure.
Traumatic Brain Injury (TBI): Monitoring and managing pressure spikes following severe head trauma.
Subarachnoid Hemorrhage (SAH): Drainage of blood-tinged CSF to reduce pressure and facilitate clearance.
Intraventricular Hemorrhage (IVH): Direct drainage of blood within the ventricles to prevent obstruction.
Post-Neurosurgical Procedures: Managing swelling following complex brain surgeries.

Comparing Monitoring Modalities

While an E V D is the gold standard for management, it is useful to understand how it compares to other forms of intracranial monitoring. The following table provides a breakdown of common monitoring methods found in the Intensive Care Unit (ICU).

Also read: When Does Braxton Hicks Happen

Method	Primary Function	Invasive Nature	Therapeutic Capacity
E V D	ICP Monitoring & CSF Drainage	High	Yes
Intraparenchymal Monitor	ICP Monitoring Only	Moderate	No
Epidural Sensor	ICP Monitoring Only	Low	No
Lumbar Drain	CSF Drainage	Moderate	Yes

Clinical Management and Nursing Care

The presence of an E V D requires a highly disciplined approach to nursing care. Because the device provides a direct pathway from the outside environment into the ventricles, the risk of ventriculitis or meningitis is a persistent concern. Nurses play a crucial role in maintaining the integrity of the system.

Daily care routines typically involve:

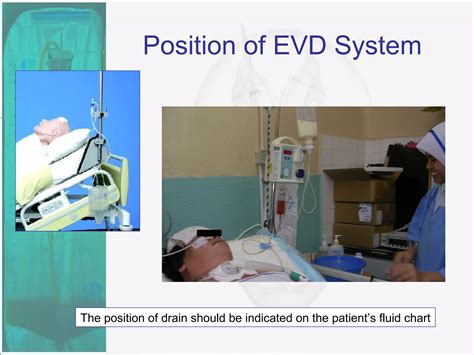

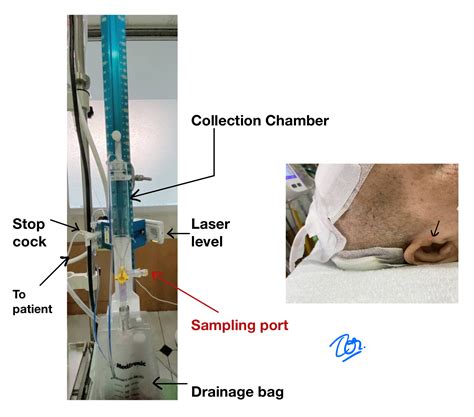

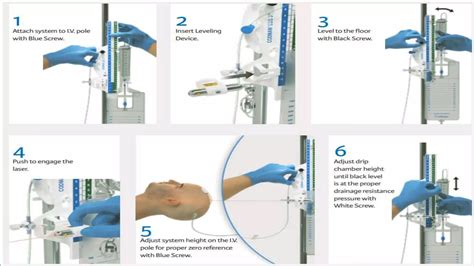

Leveling the Transducer: Ensuring the zero point of the transducer is aligned with the tragus every time the patient is moved.
Waveform Analysis: Monitoring for the typical P1, P2, and P3 waves, where an elevated P2 wave often signals decreasing intracranial compliance.
Site Inspection: Checking the insertion site for signs of leakage, redness, or purulent drainage.
CSF Assessment: Documenting the color, clarity, and quantity of the drained fluid at regular intervals.

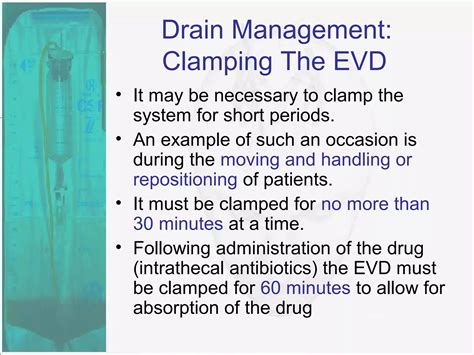

💡 Note: Always clamp the E V D when the patient is being transported or during physical therapy to prevent accidental over-drainage or backflow into the ventricle.

Also read: Colonoscopy Prep Instructions Pdf

Complications and Troubleshooting

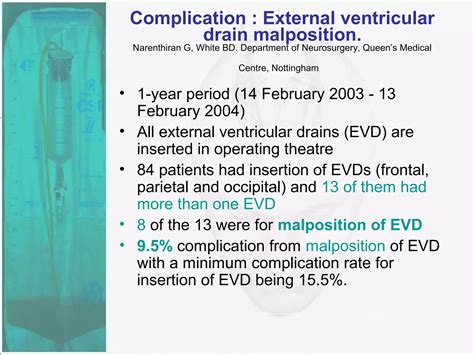

Despite its utility, the use of an E V D is not without risks. Complications can range from mechanical failures to severe neurological insults. The most common issues clinicians face include catheter obstruction due to blood clots or debris, and intracranial hemorrhage during the insertion process. Furthermore, if the system is not managed correctly, the patient may suffer from sub-dural hematomas caused by excessive CSF withdrawal, often referred to as "over-shunting."

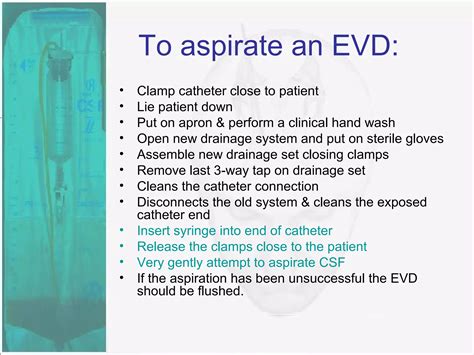

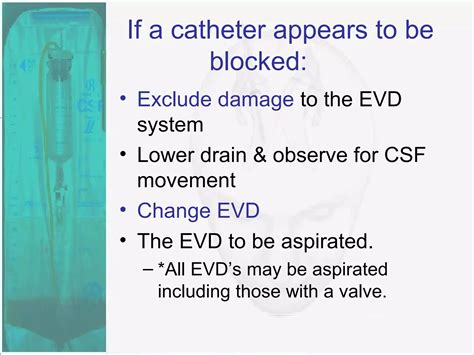

Troubleshooting steps should always start with a systematic check:

Confirm that the stopcocks are oriented in the correct direction.
Verify that the drainage bag is not full and is hanging at the correct height.

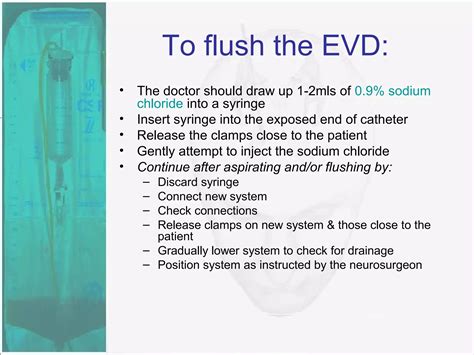

Ensure the catheter is not kinked or obstructed.
Check the transducer cable for secure connections if the waveform is lost.

Best Practices for Infection Prevention

Because infection is the most feared complication associated with an E V D, hospitals implement strict protocols. These include minimizing the frequency of opening the system, using sterile technique during every dressing change, and ensuring that the duration of catheter placement is kept to the absolute minimum necessary for the clinical situation. Some institutions also advocate for antibiotic-impregnated catheters to further mitigate the risk of bacterial colonization.

Regular neurological assessments are equally vital. A sudden decline in the patient's Glasgow Coma Scale (GCS) score, new-onset pupillary changes, or signs of fever must be reported immediately, as these may indicate either a failure of the drainage system or the development of a secondary infection.
