Recognizing the Ecg In Brugada syndrome is a critical skill for healthcare professionals, as it represents a life-threatening electrical condition that can lead to sudden cardiac death in seemingly healthy individuals. Brugada syndrome is an inherited channelopathy, primarily affecting the sodium channels in the heart, which predisposes patients to dangerous ventricular arrhythmias. Because the diagnostic hallmark of this condition is found in the resting electrocardiogram (ECG), understanding the specific morphological changes associated with it is paramount for early identification and risk stratification.
Understanding the Pathophysiology of Brugada Syndrome
At its core, Brugada syndrome is characterized by a dysfunction in the sodium ion channels of the cardiac myocytes, specifically the SCN5A gene. This ion channel defect leads to an imbalance in the electrical currents during the early phase of the cardiac action potential, particularly in the right ventricular epicardium. This creates a transmural voltage gradient that manifests on the surface ECG as characteristic ST-segment elevation, often mimicking a right bundle branch block (RBBB).
While many individuals remain asymptomatic, those who do experience symptoms may suffer from syncope or, in the most severe cases, ventricular fibrillation. The Ecg In Brugada serves as the primary tool for diagnosis, as the clinical presentation can often be silent until a catastrophic event occurs.
Recognizing the Diagnostic Criteria on the ECG

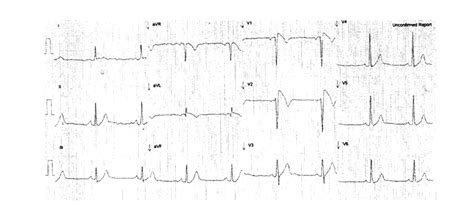

The hallmark of the syndrome is the Brugada pattern, which is observed in the right precordial leads (V1 and V2). These leads are placed higher on the chest wall—often the second, third, or fourth intercostal space—to improve the sensitivity of detecting these subtle but dangerous patterns.

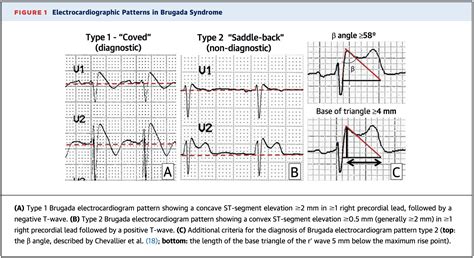

The Brugada patterns are traditionally categorized into three distinct types:
- Type 1 Pattern: The only pattern considered diagnostic. It exhibits a "coved" ST-segment elevation of ≥2 mm, followed by a negative T-wave in at least one right precordial lead (V1 or V2).
- Type 2 Pattern: Displays a "saddleback" ST-segment elevation where the J-point is high, the ST-segment descends, and then rises again, followed by a positive or biphasic T-wave.
- Type 3 Pattern: Shows a less pronounced saddleback or coved appearance with ST-segment elevation of less than 2 mm.
| Pattern Type | Morphology | Diagnostic Significance |
|---|---|---|
| Type 1 | Coved ST elevation | Diagnostic for Brugada Syndrome |
| Type 2 | Saddleback | Suggestive (needs confirmation) |
| Type 3 | Less than 2mm elevation | Non-diagnostic/Equivocal |
⚠️ Note: A Type 2 or Type 3 pattern is often converted to a Type 1 pattern through the administration of sodium channel blockers (like ajmaline or flecainide) during pharmacological challenge tests performed in specialized settings.
Clinical Importance of High Precordial Leads
One of the most essential aspects of interpreting the Ecg In Brugada is the placement of leads. In many instances, a standard 12-lead ECG may fail to show the diagnostic pattern because the voltage changes are localized to the right ventricular outflow tract. By moving leads V1 and V2 to the superior intercostal spaces, clinicians increase the likelihood of visualizing the characteristic coved ST-segment elevation.
Failure to perform high-lead placement can result in a false-negative diagnosis. Therefore, if clinical suspicion remains high due to a family history of sudden cardiac death or unexplained syncope, clinicians should always repeat the ECG with leads placed higher.
Differential Diagnosis and Mimics
Interpreting the Ecg In Brugada requires a cautious approach, as several other conditions can mimic the Brugada pattern. This is known as "Brugada phenocopy." It is vital to distinguish true Brugada syndrome from these mimics to avoid unnecessary invasive procedures like implantable cardioverter-defibrillator (ICD) placement.
Common conditions that can mimic this pattern include:
- Right ventricular ischemia.
- Acute pericarditis.
- Hyperkalemia.
- Right ventricular hypertrophy.
- Pulmonary embolism.
- Early repolarization syndrome.
- Pectus excavatum.
Risk Stratification and Management
Once a Type 1 Brugada pattern is identified, the focus shifts to risk stratification. Not every patient with the pattern requires an ICD. The decision-making process is complex and involves evaluating the patient's history of syncope, their family history of sudden cardiac death, and findings from programmed electrical stimulation studies.
For those at high risk, the primary therapeutic intervention remains the ICD. Lifestyle modifications are also critical for all patients. Patients must be educated to avoid specific drugs that can exacerbate the electrical instability, such as certain anesthetics, antiarrhythmics, and medications that block sodium channels. Furthermore, febrile states must be managed aggressively with antipyretics, as fever is a known trigger for ventricular arrhythmias in Brugada patients.
💡 Note: Patients should always be provided with an updated, medically validated list of drugs to avoid, as the list of medications that potentially worsen the Brugada ECG pattern can change as new clinical data emerges.
Key Takeaways for Clinical Practice
The evaluation of the Ecg In Brugada demands both precision and vigilance. Because the pattern can be transient, it is not uncommon for a patient to have a normal ECG one day and a classic Type 1 pattern the next. Frequent monitoring, especially during periods of fever, is encouraged for known patients.
The interpretation of these patterns should always occur in the context of the patient's overall clinical picture. While the ECG is the gateway to the diagnosis, the holistic assessment—including genetic counseling, family history review, and electrophysiological testing—forms the backbone of patient care. By maintaining a high index of suspicion and utilizing proper lead placement, clinicians can identify those at risk for sudden cardiac death and implement life-saving interventions.
Mastering the identification of the Brugada pattern on an ECG is an essential capability for modern medical practitioners. Through the recognition of the coved ST-segment morphology and the appropriate use of high precordial lead placement, healthcare providers can accurately identify this hereditary syndrome. While the ECG provides the necessary clues, the management strategy must be individualized based on the patient’s history and clinical risk factors. By avoiding known triggers, maintaining consistent follow-up, and utilizing advanced diagnostics when necessary, the prognosis for individuals living with this condition can be significantly improved, ultimately safeguarding them against the risks of life-threatening cardiac events.
