Mastering the art of Ecg Leads Placing is a fundamental skill for healthcare professionals, ranging from nursing students to cardiac technicians. An electrocardiogram (ECG or EKG) provides a vital snapshot of the heart's electrical activity, but the accuracy of this diagnostic tool depends entirely on the precision of lead placement. Even a slight deviation in electrode positioning can lead to artifact interference, misdiagnosis, or the failure to detect significant cardiac events like myocardial infarction. Understanding the anatomical landmarks and the systematic application of these leads is essential for high-quality cardiac monitoring.
The Anatomy of ECG Lead Placement
To capture the electrical impulses of the heart from various angles, standard 12-lead ECGs utilize ten physical electrodes attached to the body. These electrodes function as "viewing windows," creating a 3D representation of heart function. Proper Ecg Leads Placing requires identifying specific bony landmarks on the chest and limbs to ensure consistency across different recordings. When electrodes are placed incorrectly, the morphology of the waveforms changes, which can lead to clinical errors.
The system is generally divided into two sets: the limb leads and the precordial (chest) leads. The limb leads provide information in the frontal plane, while the precordial leads offer a horizontal view of the heart.

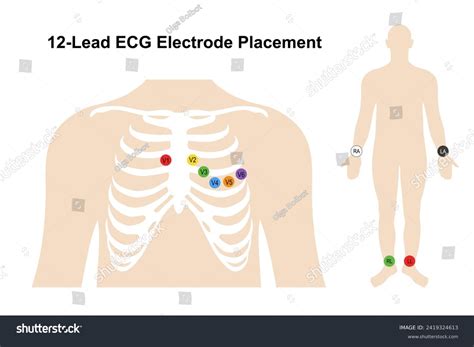

Detailed Step-by-Step Guide for Precordial Leads
The precordial leads (V1 through V6) are placed across the chest following specific intercostal spaces. Precise measurement is key, as shifting a lead by even a few centimeters can result in dramatic changes to the QRS complex amplitude and ST-segment assessment.
- V1: Place in the 4th intercostal space at the right sternal border.
- V2: Place in the 4th intercostal space at the left sternal border.
- V3: Place directly between V2 and V4.
- V4: Place in the 5th intercostal space at the mid-clavicular line.
- V5: Place horizontally even with V4, at the anterior axillary line.
- V6: Place horizontally even with V4 and V5, at the mid-axillary line.
Following this sequence ensures that the transition of the R-wave progression across the chest leads is captured correctly, which is vital for identifying localized heart conditions.
💡 Note: Always ensure the patient's skin is clean, dry, and free of excessive hair. If hair is thick, clipping may be necessary, as hair prevents the electrode gel from making full contact with the skin, leading to signal "wander" or electrical noise.

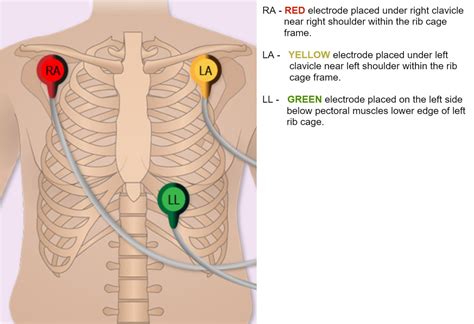

Limb Lead Placement Protocols
While the chest leads capture the horizontal plane, the limb leads are crucial for determining the axis of the heart. The four limb electrodes—Right Arm (RA), Left Arm (LA), Right Leg (RL), and Left Leg (LL)—are typically color-coded to simplify the process. For Ecg Leads Placing involving limb leads, consistency in placement is vital for comparing previous ECGs.
| Electrode | Standard Placement Location |
|---|---|
| Right Arm (RA) | Inner side of the right forearm or upper arm |
| Left Arm (LA) | Inner side of the left forearm or upper arm |
| Right Leg (RL) | Inner side of the right calf or ankle |
| Left Leg (LL) | Inner side of the left calf or ankle |
The Right Leg electrode acts as a ground or reference electrode to reduce interference. Regardless of whether you place the leads on the wrists and ankles or the upper shoulders and thighs, the most important factor is symmetry. Both arms should be treated similarly, and both legs should be treated similarly to ensure the vector analysis remains accurate.
Common Challenges and Troubleshooting Tips
Even with strict adherence to protocols, clinicians often encounter issues during the procedure. Artifacts, which appear as "fuzzy" lines or erratic spikes on the ECG strip, are the most common headache. When you notice artifacts during your Ecg Leads Placing, consider the following checklist to improve trace quality:
- Muscle Tremor: Ensure the patient is relaxed and lying flat. Shivering or tension can mimic dangerous arrhythmias.
- Electrode Adhesion: Verify that the conductive gel is not dried out. If an electrode has been sitting on the skin for a long time, replace it with a fresh one.
- Cable Strain: Ensure that the lead wires are not pulling on the electrodes. Use cable clips to secure the wires to the patient's clothing or bedding to prevent tension.
- Interference: Turn off nearby electrical equipment, such as fans or heating pads, if you notice significant 60Hz hum on the monitor.
⚠️ Note: Avoid placing electrodes directly over scar tissue, pacemakers, or implanted cardiac defibrillators. If the chest area is heavily bandaged or has a surgical site, place the leads as close to the target location as possible while documenting the deviation for the interpreting physician.
Ensuring Patient Comfort and Professionalism
Performing an ECG is an intimate procedure that requires respect for patient privacy. Always explain the process before you begin and ensure the patient is properly draped. Good Ecg Leads Placing is not just about technical accuracy; it is about providing a professional environment that keeps the patient calm. A relaxed patient produces a much cleaner signal, which in turn leads to a more reliable interpretation by the physician.
As you gain more experience, the landmarks will become intuitive. Remember that these guidelines serve as the gold standard for clinical diagnostics. Regularly reviewing these positions ensures that you remain proficient and confident, ultimately contributing to better patient outcomes. Whether you are working in a fast-paced emergency room or a routine check-up clinic, the ability to obtain a clean, clear, and accurately lead-placed ECG is a hallmark of high-quality clinical practice. Consistently applying these anatomical landmarks will mitigate errors and provide the clarity needed for effective cardiovascular assessments.
