Understanding Ecg strips is essential for anyone interested in cardiovascular health, whether you are a medical student, a healthcare professional, or a patient trying to make sense of a recent heart test. An electrocardiogram (ECG) is a fundamental diagnostic tool used to measure the electrical activity of the heart over a set period. The output of this test—the ECG strip—provides a graphical representation of the heart’s rhythm and electrical conduction. By learning how to read these strips, you gain valuable insight into how the heart functions and can identify potential irregularities before they escalate into serious health conditions.
What Are ECG Strips?
Ecg strips are specialized paper printouts that represent the electrical impulses traveling through the heart muscle. Each strip acts as a visual timeline of cardiac activity, capturing the depolarization and repolarization of the heart's chambers. Typically, an ECG machine records this data on standardized graph paper, where both the horizontal and vertical axes have specific clinical meanings.
The horizontal axis measures time, while the vertical axis measures the amplitude or voltage of the electrical signal. Understanding these measurements is the first step in interpreting cardiac data correctly. In a standard setting, the paper moves at 25 mm/second, meaning each small square represents 0.04 seconds, and each large square represents 0.20 seconds.
Key Components of an ECG Complex
To analyze Ecg strips effectively, you must understand the individual waves and intervals that make up a heartbeat. Each component of the ECG complex corresponds to a specific physical action within the heart:
- P Wave: Represents atrial depolarization, the electrical activation of the heart's upper chambers.
- QRS Complex: Represents ventricular depolarization, the activation of the lower, more muscular chambers. This is typically the most prominent feature of the strip.
- T Wave: Represents ventricular repolarization, the electrical recovery of the ventricles after they have contracted.
- PR Interval: The time taken for the electrical impulse to travel from the atria to the ventricles.
- ST Segment: A crucial segment that connects the QRS complex to the T wave, often analyzed to check for heart damage or ischemia.
Standard ECG Measurement Table
The following table provides a quick reference guide for interpreting the standard intervals found on Ecg strips during a normal sinus rhythm.
| Component | Normal Duration (Seconds) | Clinical Significance |
|---|---|---|
| PR Interval | 0.12 – 0.20s | Atrioventricular conduction time |
| QRS Duration | 0.06 – 0.10s | Ventricular depolarization |
| QT Interval | 0.36 – 0.44s | Total ventricular activity time |
How to Analyze ECG Strips Step-by-Step
Interpreting Ecg strips requires a systematic approach to ensure nothing is overlooked. By following a consistent method, you can accurately identify normal rhythms versus dangerous arrhythmias.
- Check the Rate: Determine how many beats occur per minute (BPM). A normal resting heart rate is generally between 60 and 100 BPM.
- Examine the Rhythm: Look at the regularity of the R-R intervals. Are the distances between the peaks of the R waves consistent? If the rhythm is irregular, it may indicate conditions like atrial fibrillation.
- Analyze P Waves: Ensure there is a P wave before every QRS complex and that they all look consistent.
- Measure Intervals: Use the standard measurements listed in the table above to check the PR and QT intervals.
- Evaluate the ST Segment: Check to see if the ST segment is elevated or depressed, which can indicate heart muscle strain or injury.
⚠️ Note: Always ensure the ECG leads were placed correctly before interpretation, as poor electrode contact can create artifacts that mimic life-threatening arrhythmias.

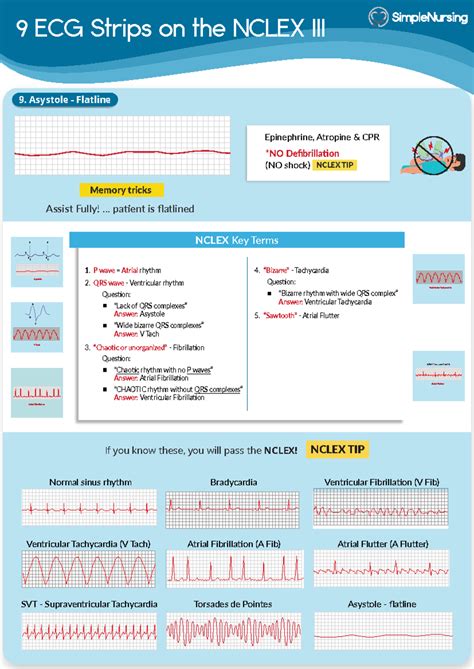

Identifying Common Abnormalities
When analyzing Ecg strips, healthcare providers look for specific patterns that deviate from the normal sinus rhythm. These patterns provide immediate diagnostic clues.
- Tachycardia: A heart rate exceeding 100 BPM. The strips will show complexes appearing very close together.
- Bradycardia: A heart rate falling below 60 BPM. The strips will show widely spaced complexes.
- Atrial Fibrillation: Often described as an "irregularly irregular" rhythm where P waves are absent or replaced by chaotic fibrillatory waves.
- ST-Elevation: Often signifies a myocardial infarction (heart attack) and requires immediate medical intervention.
The Importance of Lead Placement
The accuracy of Ecg strips depends heavily on the placement of the electrodes on the patient's chest and limbs. The standard 12-lead ECG provides a 360-degree view of the heart's electrical activity. If a lead is misplaced, it can lead to inaccurate readings, potentially causing a misdiagnosis. For example, limb leads provide information on the vertical plane, while precordial (chest) leads provide data on the horizontal plane. Ensuring proper skin preparation and electrode adhesion is vital for obtaining a clear, noise-free signal.
Common Challenges in Interpretation
Even experienced clinicians face challenges when reading Ecg strips. Artifacts are the most common issue. These are distortions in the tracing caused by external factors rather than the heart itself. Common causes include:
- Muscle Tremors: Shivering or nervous movement can create jagged, erratic lines.
- Loose Electrodes: Poor contact causes the baseline to drift or create "wandering" lines.
- Electrical Interference: Interference from nearby electronic equipment can cause a thick, fuzzy baseline.
⚠️ Note: If you encounter an irregular rhythm, always compare the strip to the patient's actual pulse and physical symptoms before making a clinical judgment.
Technology and the Future of ECGs
The landscape of Ecg strips is evolving rapidly with the introduction of portable cardiac monitoring devices and smartphone-compatible ECGs. While these devices offer convenience, they often provide only a single-lead view, which is significantly less comprehensive than a clinical 12-lead ECG. However, they are excellent for capturing intermittent events, such as paroxysmal atrial fibrillation, which might not show up during a short, scheduled clinic visit. As artificial intelligence continues to integrate with diagnostic software, the speed and accuracy with which we analyze these strips will likely improve, allowing for earlier detection of heart disease.
Developing a strong foundation in reading and interpreting Ecg strips is a highly valuable skill that bridges the gap between raw data and patient care. By systematically examining heart rates, rhythms, intervals, and wave morphology, you can decipher the complex electrical language of the heart. While advanced diagnostics will always require professional oversight, understanding these core principles helps demystify the process and empowers patients and providers alike. Whether you are using a traditional hospital machine or modern wearable technology, consistent practice and attention to detail remain the best ways to ensure accurate results, ultimately leading to better health outcomes and a deeper appreciation for the heart’s intricate electrical system.
