Electrical Power Calculation Formula

Understanding the fundamental principles of electricity is essential for anyone working with circuits, electronics, or household appliance management. At the heart of these principles lies the Electrical Power Calculation Formula, a mathematical bridge that connects voltage, current, and resistance. By mastering this concept, you can effectively manage energy consumption, prevent circuit overloads, and ensure the safety of your electronic devices. Whether you are a student, an electrician, or a DIY enthusiast, knowing how power is calculated allows you to make informed decisions about energy efficiency and system design.

Table of Contents

The Basics of Electrical Power

Before diving into the math, it is important to define what electrical power actually represents. In physical terms, power is the rate at which electrical energy is transferred or converted into another form, such as heat, light, or motion. The standard unit of measurement for electrical power is the Watt (W), named after the inventor James Watt.

When current flows through a conductor, it encounters resistance. The energy required to push that current through the resistance is what we identify as power. To determine this value, we rely on three primary variables:

The Primary Electrical Power Calculation Formula

The most widely used equation for determining power is known as the Watt’s Law. The basic Electrical Power Calculation Formula is expressed as: P = V × I. In this equation, P stands for Power in Watts, V is Voltage, and I is Current.

This formula indicates that power is directly proportional to both the voltage applied to a circuit and the amount of current flowing through it. If you increase either the voltage or the current, the total power dissipation increases accordingly. This is why high-voltage lines or high-amperage appliances are associated with high energy usage.

Advanced Power Calculations Using Ohm’s Law

Often, you might find yourself in a situation where you do not have both voltage and current values readily available. In these cases, you can derive the power using resistance values by integrating Ohm’s Law (V = I × R) into your calculations. This provides two alternative versions of the Electrical Power Calculation Formula:

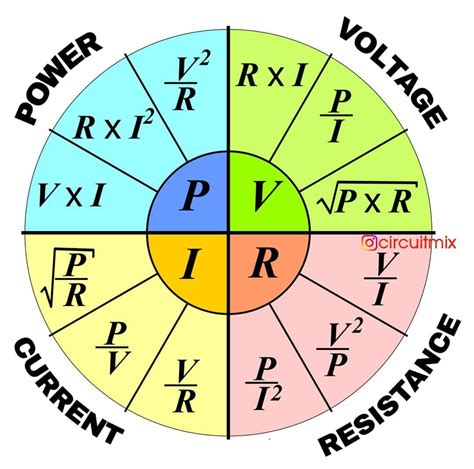

Power Calculation Reference Table

The following table summarizes the different ways to calculate power based on the variables you have at your disposal. Having this reference handy can significantly speed up your troubleshooting or design process.

Known Values	Formula
Voltage (V) & Current (I)	P = V × I
Current (I) & Resistance (R)	P = I² × R
Voltage (V) & Resistance (R)	P = V² / R

💡 Note: Always ensure that your units are in the standard SI base units (Volts, Amperes, and Ohms) before performing calculations to avoid errors in your final wattage result.

Practical Applications of Power Formulas

Why is calculating power so important in daily life? One primary application is safety and circuit protection. Every household circuit has a limit, typically measured in Amps (such as 15A or 20A breakers). By using the Electrical Power Calculation Formula, you can determine if the appliances you are plugging into a single circuit will exceed the total capacity of that circuit's breaker.

For example, if you have a 120V outlet on a 15A breaker, the maximum power the circuit can handle is 120V × 15A = 1,800 Watts. If you run a space heater (1,500W) and a coffee maker (800W) simultaneously, you are drawing 2,300 Watts, which exceeds the limit and will cause the circuit breaker to trip.

Another major application is in energy management. By knowing the power consumption of different devices, you can calculate how much electricity your home consumes over time. By multiplying the power (in kilowatts) by the number of hours of usage, you derive the energy consumption in Kilowatt-hours (kWh), which is the unit used by utility companies for billing.

💡 Note: When calculating for AC (Alternating Current) circuits, the formula becomes slightly more complex due to "power factor," but for most residential DC and resistive AC calculations, the standard P=VI formula remains accurate.

Common Pitfalls and How to Avoid Them

One common mistake is neglecting the difference between power and energy. Power is the instantaneous rate of consumption, while energy is the total consumption over a specific duration. Always ensure you are clear about whether you are trying to calculate the immediate load or the cumulative usage of a system.

Additionally, be wary of the Power Factor in industrial or complex motor-driven circuits. While the basic Electrical Power Calculation Formula works perfectly for simple resistive loads like incandescent bulbs or electric heaters, devices like induction motors or LED drivers require a power factor adjustment to reach the "True Power" value. Ignoring this can lead to an underestimation of the electrical current required for the system.

Mastering these mathematical relationships is a foundational skill that serves as a gateway to more advanced electrical engineering and practical household troubleshooting. By understanding the relationship between voltage, current, and resistance, you gain the ability to predict how circuits behave, how to optimize energy consumption, and how to maintain a safe electrical environment. These formulas are not just abstract concepts found in textbooks; they are essential tools for managing the modern infrastructure that powers our daily lives. With these formulas at your disposal, you are well-equipped to handle various technical challenges, from calculating battery life for portable electronics to evaluating the electrical capacity of your home power system.
