Accurate Electrocardiography Placement is the cornerstone of high-quality diagnostic cardiology. Whether you are a nursing student, a cardiac technician, or a medical professional refreshing your clinical skills, understanding where to place the electrodes is vital for obtaining a clear, diagnostic-grade ECG tracing. When electrodes are misplaced, the resulting data can lead to clinical misinterpretation, potential misdiagnosis of myocardial infarction, or unnecessary medical interventions. By following standardized protocols for lead placement, clinicians ensure that the electrical activity of the heart is captured consistently across every patient encounter.

Table of Contents

Understanding the 12-Lead ECG System

The standard 12-lead ECG is not actually twelve physical wires attached to the body; rather, it is a calculation of electrical vectors using ten electrodes. The Electrocardiography Placement process involves four limb leads and six precordial (chest) leads. These leads work together to provide a comprehensive electrical map of the heart, allowing doctors to view the myocardium from multiple angles, including the lateral, inferior, septal, and anterior walls.

Consistency is key. The heart’s electrical axis changes based on the patient's anatomy, which is why precise anatomical landmarks must be identified for every electrode. Improper placement can alter the amplitude and morphology of the P-wave, QRS complex, and T-wave, potentially masking life-threatening arrhythmias or ischemia.

The Anatomical Landmarks for Precordial Leads

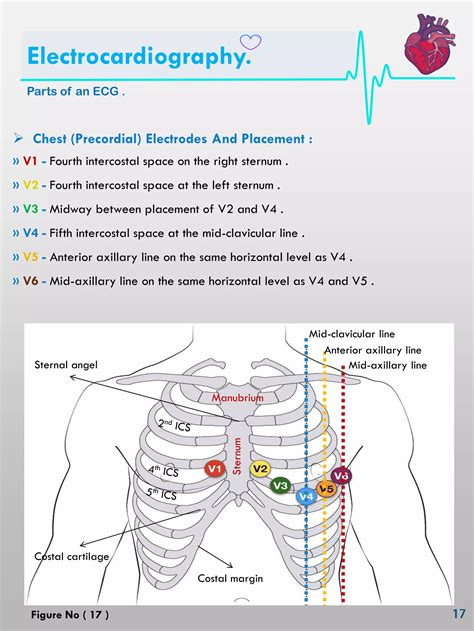

The six precordial leads are placed across the chest to monitor the heart's horizontal plane. To ensure Electrocardiography Placement accuracy, you must first identify the Angle of Louis, which is the ridge where the manubrium meets the sternum. Following this ridge to the right side of the sternum allows you to locate the second intercostal space.

V1: Fourth intercostal space, right sternal border.
V2: Fourth intercostal space, left sternal border.
V3: Midway between V2 and V4.
V4: Fifth intercostal space, mid-clavicular line.
V5: Anterior axillary line, horizontal to V4.
V6: Mid-axillary line, horizontal to V4 and V5.

⚠️ Note: Always verify that V4, V5, and V6 are placed on the same horizontal plane. Misaligning these can create artificial ST-segment shifts that mimic cardiac injury.

Limb Lead Placement and Patient Preparation

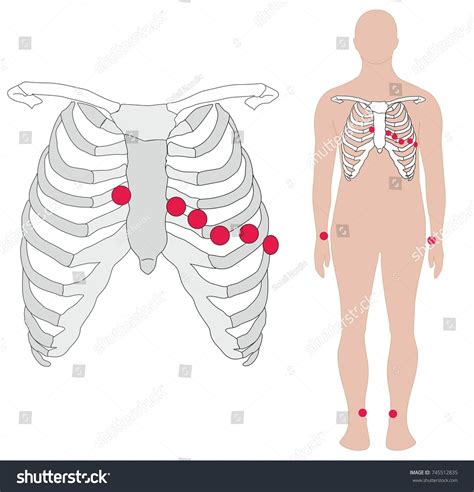

While chest leads focus on the heart’s anatomy, the limb leads—Right Arm (RA), Left Arm (LA), Right Leg (RL), and Left Leg (LL)—provide the frontal plane views. The RL electrode serves as the ground (or reference) lead, which helps reduce electrical noise and baseline wander. For Electrocardiography Placement involving the limbs, electrodes should be placed on fleshy areas, such as the upper arms or thighs, rather than directly over bone or muscle, to minimize artifact from tremors or movement.

Also read: Megan Fox Face Plastic Surgery

Electrode	Standard Placement Location
Right Arm (RA)	Right shoulder or upper arm
Left Arm (LA)	Left shoulder or upper arm
Right Leg (RL)	Right hip or lower leg
Left Leg (LL)	Left hip or lower leg

Overcoming Common Challenges in ECG Acquisition

Even with perfect Electrocardiography Placement, artifacts can ruin a reading. Common issues include muscle tremors (somatic interference), 60-cycle interference from nearby electrical equipment, and poor skin adhesion. To mitigate these, ensure the patient is relaxed, lying flat in a supine position, and that the skin is properly prepped.

Skin preparation is often overlooked. Dead skin cells and oils increase skin impedance. By gently abrading the skin with an abrasive pad and cleaning it with alcohol, you can ensure a conductive surface that allows for a strong electrical signal. If the patient has significant chest hair, it must be clipped to ensure the electrode maintains full contact with the skin surface.

💡 Note: Never place electrodes over open wounds, broken skin, or large amounts of scar tissue, as these areas provide poor electrical conductivity and may cause patient discomfort.

The Importance of Lead Reversal Detection

Lead reversal is a common error during Electrocardiography Placement. If the RA and LA leads are swapped, the ECG machine may record a negative P-wave in Lead I, which is clinically impossible in a normal sinus rhythm. Modern ECG machines often have automated software that alerts the clinician to suspected lead reversals. If an ECG shows sudden, drastic changes compared to a previous baseline or displays impossible waveforms, the first step should always be to double-check the placement of every lead rather than assuming an acute cardiac event has occurred.

Advanced Considerations in Special Populations

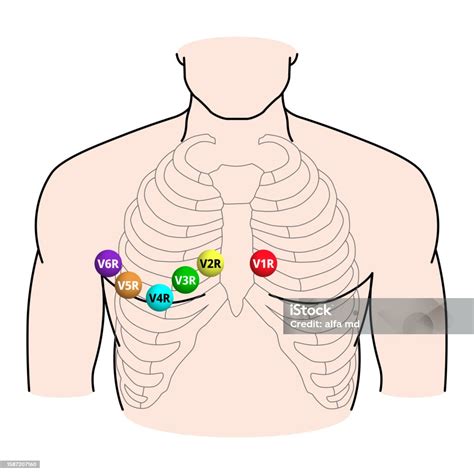

In pediatric patients or individuals with chest deformities (such as Pectus Excavatum), standard Electrocardiography Placement may require minor adjustments. For women, electrodes should be placed underneath breast tissue rather than on top of it, as the adipose tissue creates distance between the sensor and the heart, leading to weakened signals. In cases of dextrocardia, the heart is positioned on the right side of the chest; in this rare scenario, the precordial leads must be mirrored on the right side of the thorax to capture the electrical activity correctly.

The accuracy of an ECG trace is only as good as the technique applied during the setup process. By mastering the anatomical landmarks, prioritizing skin preparation, and remaining vigilant against common pitfalls like lead reversal and improper alignment, healthcare providers can ensure high-fidelity data. This systematic approach not only supports accurate diagnosis but also optimizes the entire workflow of cardiac monitoring in both emergency and routine settings. Maintaining these standards is a fundamental responsibility for anyone involved in diagnostic testing, ensuring that every heart receives the precise assessment it requires for effective clinical management.
