Understanding the fundamental components of energy storage devices is essential for anyone dealing with electronics, whether you are a hobbyist working on a DIY project or a professional troubleshooting industrial equipment. At the heart of every power cell, whether it is a standard household AA or a sophisticated lithium-ion pack, are the ends of battery terminals. These connection points are the gateways through which chemical energy is converted into electrical current, powering our laptops, smartphones, and vehicles. While they might seem like simple metal contacts, their design, polarity, and maintenance are critical to the safety and longevity of your devices.
The Architecture of Battery Terminals

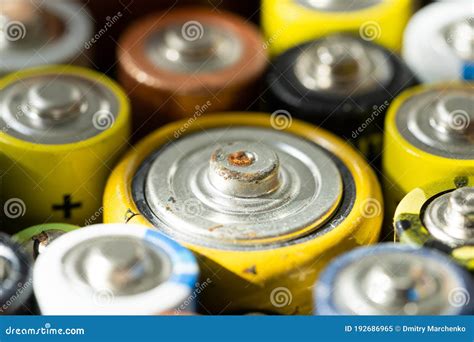

The ends of battery units serve two primary functions: they act as the physical connection point for an electrical circuit and signify the direction of electron flow. Generally referred to as the anode and the cathode, these terminals are distinct in both shape and function. In most consumer batteries, the positive end is characterized by a protruding nub, while the negative end is typically a flat, metallic surface. This physical differentiation is intentional, designed to prevent users from accidentally inserting the battery in the wrong orientation, which could cause a short circuit.
When current flows from these terminals, electrons move from the negative terminal, through the external circuit, and eventually return to the positive terminal. This directional flow is what makes electronic devices function. If the connection at either end is compromised—due to corrosion, debris, or mechanical wear—the circuit is broken, and the device will cease to operate.
Common Types of Battery Terminals
Different applications require different configurations for power delivery. The physical structure of the ends of battery components varies depending on the technology used:

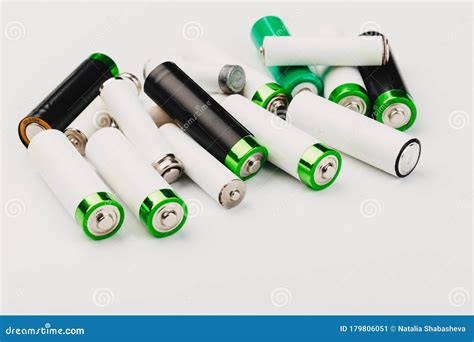

- Cylindrical Contacts: Common in alkaline AA, AAA, C, and D batteries. They use a simple cap-and-base design.
- Button Cells: Small, coin-shaped batteries where the entire top and bottom surfaces function as the terminals.

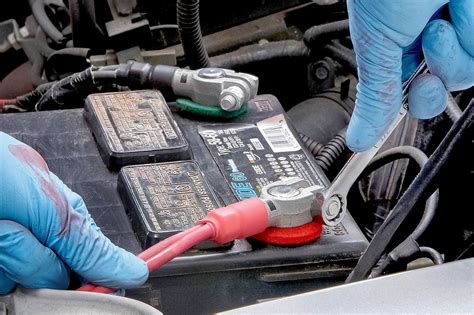

- Threaded Posts: Found primarily in lead-acid automotive batteries. These are robust terminals designed for high-current applications.
- Tab/Lead Connections: Used in lithium-polymer (LiPo) pouches, where metal tabs extend from the internal layers of the cell.
- Snap Connectors: Seen in 9V batteries, utilizing a male and female snap mechanism to secure the connection.
Each of these variations serves a specific purpose in power management and safety. For instance, the heavy-duty threaded posts on car batteries are designed to withstand significant vibration and handle the high amperage required to crank an engine, something that a standard cylindrical contact could never support.
Comparison of Terminal Configurations
| Battery Type | Terminal Characteristic | Primary Use |
|---|---|---|
| Alkaline (AA/AAA) | Protruding nub / Flat base | Remote controls, toys, flashlights |
| Lead-Acid | Heavy-duty threaded posts | Automotive and UPS systems |
| Lithium-Ion (18650) | Flat contact surfaces | Laptops, power tools, EVs |
| 9-Volt | Dual snap-on contacts | Smoke detectors, microphones |
Managing Corrosion at the Contact Points

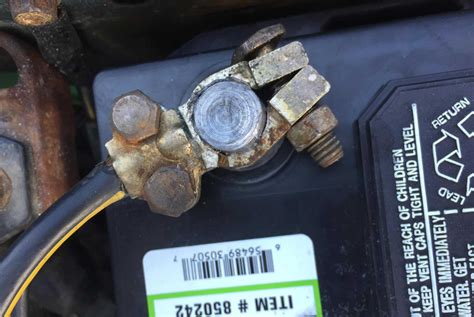

Over time, the ends of battery contact points can become dirty or corroded, particularly if a battery is left inside a device for an extended period or exposed to moisture. Battery leakage—the chemical reaction that leaves a white, powdery residue—is a common culprit for device failure. When this happens, the electrical conductivity of the terminal is severely reduced, often creating an insulating layer that prevents the device from turning on.
To clean these areas, you should use a mild acidic solution, such as a small amount of vinegar or lemon juice mixed with water, on a cotton swab. Gently scrub the terminal until the corrosion is removed, then wipe it down with a dry cloth. Always ensure the device is powered off and the batteries are removed before attempting any cleaning. If the contact surface is severely pitted or rusted, it may be necessary to replace the battery holder entirely to ensure a reliable connection.
⚠️ Note: Always wear gloves when cleaning leaking batteries, as the chemical residue can be an irritant to the skin and eyes. Never mix old and new batteries in the same device, as this can lead to uneven discharging and potential leakage.
Safety Best Practices for Battery Handling
While the ends of battery terminals might look harmless, they hold the potential for significant energy release. Shorting these ends—connecting them directly with a conductive material like a metal paperclip or a piece of jewelry—can result in intense heat, sparks, or even fire. This is especially true for lithium-based batteries, which have low internal resistance and can discharge a massive amount of current almost instantly if shorted.
To keep your equipment safe:
- Store batteries in their original packaging or a plastic case to prevent contact between terminals.
- Avoid storing batteries in drawers with loose metal items like coins, keys, or screws.
- Check the physical condition of the battery casing and the device terminals regularly for signs of wear.
- Dispose of old or damaged batteries at dedicated recycling centers rather than regular trash.
- Insulate the terminals of high-capacity batteries with electrical tape before storing them for long periods.
By observing these simple precautions, you not only extend the life of your electronic devices but also protect your home from the risks associated with improper battery management.
💡 Note: If you notice a battery case is swollen or deformed, stop using it immediately. Swelling is a clear indication that internal gas pressure has built up, often due to overheating or internal failure, and the battery should be handled as a hazardous item.
The Future of Battery Connections
As technology evolves, the physical design of the ends of battery units is changing to meet the needs of more advanced devices. We are seeing a shift toward standardized, integrated battery management systems (BMS) where the connection to the external circuit is not just a simple physical contact but a data-rich interface. Modern smart batteries communicate with the device, providing information about temperature, voltage, and health status through additional pins near the primary power terminals.
This integration ensures that devices run more efficiently and that charging is optimized to prevent damage. While we still rely on the basic physical contact points for power delivery, the future of power storage is increasingly focused on intelligent, secure, and highly efficient terminal designs that prioritize user safety and energy density above all else. Understanding how these components interact allows us to maximize our technology’s lifespan and troubleshoot common power-related issues with confidence.
In summary, the functionality of any battery-powered device hinges on the integrity of the contact points. By recognizing the importance of terminal cleanliness, polarity, and proper storage, you can avoid unnecessary malfunctions and hazardous situations. Whether you are dealing with common cylindrical cells or complex rechargeable packs, the principles of maintaining clean, firm, and safe connections remain the bedrock of reliable electronics. Keeping these simple maintenance and safety habits in mind will ensure your devices continue to operate smoothly for years to come.
