In the expansive realm of computational fluid dynamics (CFD), engineers and scientists constantly grapple with the complex task of modeling how fluids behave under various conditions. At the core of these simulations lie two fundamental perspectives: the Eulerian and the Lagrangian frameworks. When these two methodologies are unified, we arrive at the sophisticated Eulerianlagrangian approach. This hybrid method leverages the strengths of both systems to solve intricate problems that range from atmospheric particle dispersion to industrial spray combustion. Understanding this integrated framework is crucial for anyone looking to master high-fidelity fluid simulation and predictive modeling.
Understanding the Two Fundamental Perspectives
Before diving into the Eulerianlagrangian framework, it is essential to distinguish between the two primary ways of tracking motion in fluid mechanics. Imagine you are standing on a bridge watching water flow down a river. If you focus on a fixed point under the bridge and observe the water passing by, you are adopting an Eulerian perspective. Conversely, if you jump into a boat and travel downstream, tracking your specific coordinates over time, you are adopting a Lagrangian perspective.
The differences can be summarized as follows:
- Eulerian Framework: Focuses on a fixed control volume in space. It calculates properties like pressure, velocity, and temperature at specific grid points. It is excellent for modeling continuous phases, such as bulk fluid flow.
- Lagrangian Framework: Focuses on individual fluid elements or particles. It tracks the trajectory, mass, and momentum of specific items as they move through the flow field. It is superior for tracking discrete entities like droplets, bubbles, or dust.
The Power of the Eulerianlagrangian Framework

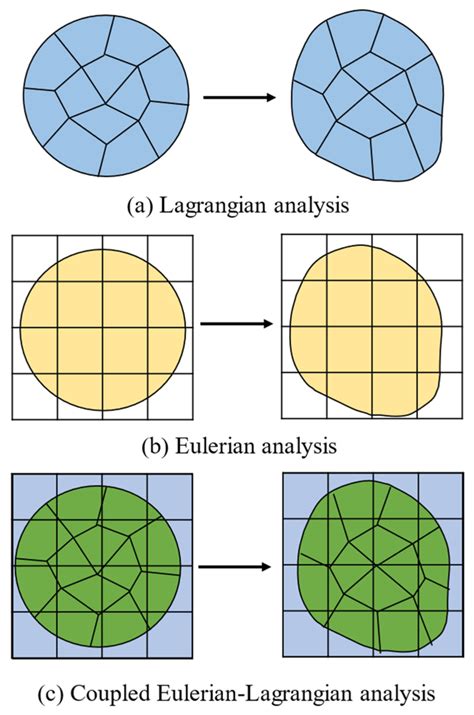

The Eulerianlagrangian approach is designed for multiphase flows where the interaction between a continuous phase (like air or water) and a discrete phase (like solid particles or liquid droplets) is paramount. In this model, the continuous phase is solved using the Eulerian grid-based approach, while the discrete phase is treated as a collection of individual particles tracked using Lagrangian equations of motion.
This coupling allows for the simulation of complex phenomena where the two phases influence each other. For instance, in an internal combustion engine, the air (continuous phase) is solved using Navier-Stokes equations on a grid, while the fuel droplets (discrete phase) are tracked as they evaporate and burn, exchanging momentum, mass, and energy with the air.
| Feature | Eulerian (Continuous) | Lagrangian (Discrete) |
|---|---|---|
| Frame of Reference | Fixed space (Control Volume) | Moving particles (Trajectory) |
| Primary Variable | Field variables (e.g., Pressure, Velocity) | Particle properties (e.g., Position, Velocity) |
| Computational Cost | High for mesh refinement | High for large particle populations |
⚠️ Note: When setting up an Eulerianlagrangian simulation, ensure that your mesh resolution for the Eulerian phase is fine enough to capture the local flow features that influence the Lagrangian particle trajectories.
Core Mechanics and Mathematical Integration
The integration of these two methods requires a robust mathematical bridge. The Eulerian phase provides the background velocity and pressure fields, which exert drag, lift, and buoyancy forces on the Lagrangian particles. In turn, the particles exert a reciprocal force on the fluid. This two-way coupling is what makes the Eulerianlagrangian method so computationally intensive but highly accurate.
The tracking process typically involves the following steps:
- Initialization: Defining the particle size distribution, injection points, and initial velocities for the discrete phase.
- Force Calculation: Computing forces like gravity, pressure gradient, drag, and Brownian motion acting on each individual particle.
- Integration: Solving the ordinary differential equations for each particle's position and velocity over time.
- Feedback Loop: Transferring the momentum and mass change of the particles back to the Eulerian fluid grid as source terms.
Applications in Modern Engineering
The versatility of the Eulerianlagrangian model is reflected in its widespread adoption across diverse industrial sectors. By predicting how particles behave in a flow, engineers can optimize equipment performance, reduce emissions, and enhance process efficiency.
Key applications include:
- Environmental Modeling: Predicting the dispersion of pollutants or volcanic ash in the atmosphere.
- Aerosol Science: Studying the behavior of pharmaceutical inhalers or the spread of airborne pathogens.
- Chemical Processing: Analyzing fluidized beds and cyclone separators where solid particles are moved by gas streams.
- Automotive Engineering: Optimizing fuel injection systems to improve combustion efficiency and reduce soot formation.
💡 Note: For large-scale simulations, consider using statistical grouping or parcel tracking to represent multiple real particles with a single "numerical particle" to significantly reduce computational demand.
Challenges and Future Trends
Despite its power, the Eulerianlagrangian approach faces significant challenges, particularly regarding computational limits. When the number of particles increases, the tracking load grows exponentially. Furthermore, accurately modeling inter-particle collisions and wall interactions requires sophisticated physical sub-models that must be carefully validated against experimental data.
Looking ahead, the integration of Machine Learning and AI into these workflows is a major trend. Data-driven models are being developed to replace computationally expensive force calculations, allowing for faster convergence without sacrificing accuracy. Additionally, the transition toward massive parallelization on GPU architectures is enabling the simulation of billions of particles, a feat that was considered impossible just a decade ago.
As computational power continues to evolve, the reliance on high-fidelity simulation frameworks will only deepen. By mastering the Eulerianlagrangian approach, engineers can bridge the gap between theoretical fluid dynamics and practical, real-world solutions. Whether you are dealing with environmental safety, pharmaceutical design, or advanced propulsion, understanding the interplay between a continuous fluid field and its constituent discrete particles remains the gold standard for achieving accurate, reliable, and actionable simulation results. This holistic perspective ensures that complex interactions are not just visualized, but quantified, providing the foundation for innovation in fluid mechanics for years to come.
