Driving your vehicle down the highway when suddenly the dreaded "Check Engine" light illuminates on your dashboard can be an incredibly stressful experience. For many car owners, the culprit behind this mysterious light is often a small but significant issue known as an Evaporative Emission System Leak. While this problem rarely prevents a car from driving, it is a critical component of modern automotive engineering that manages fuel vapors to protect the environment. Ignoring this warning can lead to poor fuel economy, failed emissions inspections, and even potential damage to other engine components over time. Understanding what this system does and how to address a leak is essential for any responsible vehicle owner looking to maintain their car’s longevity and efficiency.
What is the Evaporative Emission (EVAP) System?

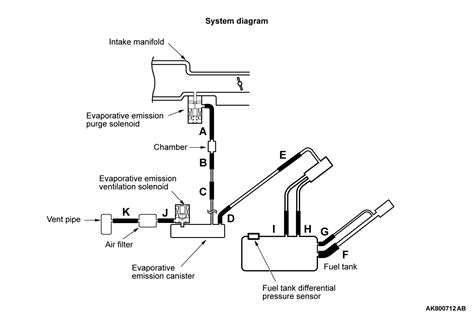

The Evaporative Emission System, commonly referred to as the EVAP system, is designed to trap gasoline vapors before they escape into the atmosphere. Gasoline is highly volatile and naturally evaporates, creating fumes that contribute to air pollution and smog. In older vehicles, these vapors were simply vented out into the air. However, modern automotive technology utilizes a closed-loop system to capture these vapors within an activated charcoal canister. The engine control unit (ECU) then periodically purges these vapors, pulling them into the combustion chamber to be burned alongside fuel, ensuring that your vehicle runs as cleanly and efficiently as possible.
Symptoms of an Evaporative Emission System Leak
Detecting an Evaporative Emission System leak is usually straightforward because the car’s computer constantly monitors the pressure and vacuum levels within the system. If the sensor detects that the system cannot hold the required vacuum, it triggers a diagnostic trouble code (DTC). Common indicators include:
- The Check Engine Light: This is the most common symptom, often accompanied by codes like P0440, P0442, or P0456.
- Strong Smell of Gasoline: If a leak is significant, you may notice a raw fuel odor around the vehicle, especially after parking it.
- Reduced Fuel Economy: Because the system is compromised, the engine management system may struggle to balance the air-fuel ratio correctly, leading to higher fuel consumption.
- Failed Emissions Test: In many regions, your vehicle will automatically fail its annual inspection if the EVAP monitor is not “ready” or shows an active leak.
Common Causes of EVAP Leaks
The EVAP system is composed of several hoses, valves, and a canister that are exposed to extreme under-car conditions. Because of this, degradation is inevitable over time. Below is a breakdown of the most frequent points of failure:
| Component | Function | Failure Reason |
|---|---|---|
| Gas Cap | Seals the fuel tank | Worn or cracked rubber seal |
| Purge Valve | Controls vapor flow to the intake | Stuck open or closed due to debris |
| Vent Solenoid | Allows fresh air into the canister | Corrosion or electrical failure |
| EVAP Hoses | Transports fuel vapors | Dry rot, cracking, or heat damage |
| Charcoal Canister | Stores fuel vapors | Saturated or cracked housing |
⚠️ Note: Always start with the simplest and most affordable fix, which is the gas cap. Many EVAP system leaks are caused by a loose, damaged, or aftermarket gas cap that fails to create an airtight seal.
How to Diagnose and Repair an EVAP Leak
Diagnosing an Evaporative Emission System leak can range from simple visual inspections to complex professional testing. If you are handy with tools, you can follow these systematic steps:
- Visual Inspection: Look underneath the vehicle for cracked, brittle, or disconnected rubber hoses. Focus on the area around the fuel tank and the charcoal canister.
- Check the Gas Cap: Inspect the rubber gasket on your fuel cap for cracks. If it feels hard or brittle, replace it with an OEM part.
- Use a Smoke Machine: This is the professional standard. By injecting low-pressure smoke into the EVAP system, mechanics can watch for smoke escaping from a crack in a hose or a faulty seal, making the leak immediately visible.
- Testing Solenoids: Using a multimeter, you can check if the purge valve and vent solenoid are receiving power and clicking correctly when activated.
💡 Note: When performing a smoke test, ensure the engine is off and cold. Never use an open flame to check for fuel leaks, as the environment around a fuel system is highly flammable.
Why Professional Repair is Recommended
While DIY diagnosis is possible, professional mechanics often have access to advanced scanning tools that can command the EVAP system to open or close specific valves. This “bidirectional control” allows them to isolate a leak to a specific section of the system instantly. Furthermore, because fuel systems involve flammable vapors, working on these components requires caution. If you are not comfortable working with fuel lines or electrical sensors, it is best to visit a trusted mechanic. An Evaporative Emission System leak might seem like a minor annoyance, but if left unaddressed for too long, a malfunctioning purge valve could potentially cause drivability issues or even damage your engine’s internal components due to the incorrect intake of vapors.
Maintaining the integrity of your vehicle’s systems is the key to a long-lasting and reliable car. While a leak in the EVAP system won’t usually leave you stranded on the side of the road, it is a sign that your vehicle is no longer operating within its design parameters. By paying attention to the initial warning signs—such as a persistent check engine light or the scent of fuel—and performing systematic checks on the gas cap, hoses, and valves, you can resolve the issue effectively. Whether you choose to troubleshoot the problem yourself or seek professional assistance, addressing an evaporative emission system leak promptly ensures that your vehicle remains environmentally compliant and continues to provide optimal fuel efficiency for years to come.
