When you press the gas pedal and hear a strange, ticking noise coming from under your hood, it is easy to panic. However, one of the most common culprits for this specific issue is a faulty exhaust manifold gasket. This small but vital component acts as a high-temperature seal between the engine’s cylinder head and the exhaust manifold. Over time, due to extreme heat cycles and constant pressure, this gasket can deteriorate, leading to exhaust leaks that not only diminish your vehicle’s performance but can also pose safety risks. Understanding how this component works and how to address its failure is essential for any car owner looking to maintain their vehicle’s longevity.
What is an Exhaust Manifold Gasket?

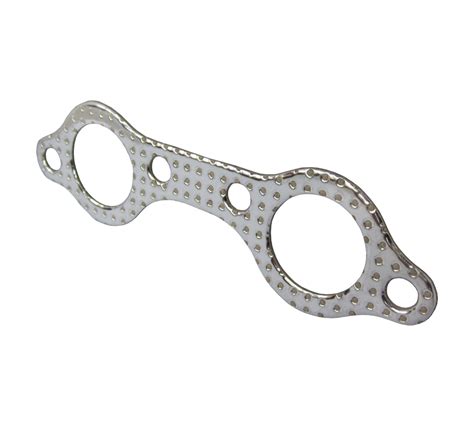

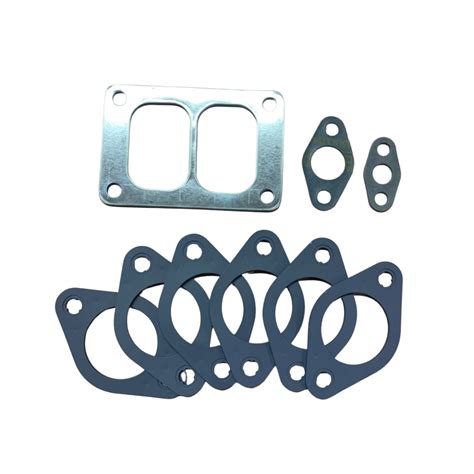

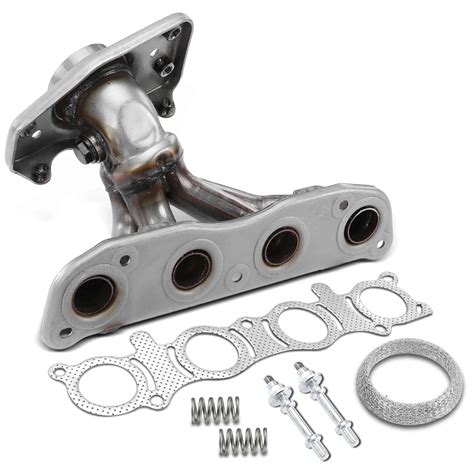

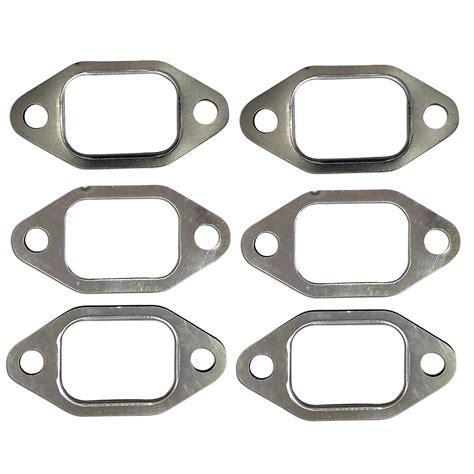

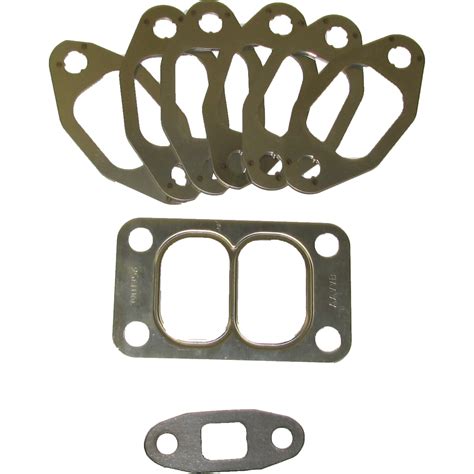

The exhaust manifold gasket is a specially engineered seal designed to withstand the brutal environment inside your engine bay. Its primary job is to create a gas-tight connection, ensuring that hot, pressurized exhaust gases are directed away from the engine and into the exhaust system—and eventually out of the tailpipe—without leaking into the engine compartment.
Because the exhaust manifold gets extremely hot, these gaskets are typically made from materials like graphite, multilayer steel (MLS), or reinforced fiber. They are built to expand and contract along with the metal components they sit between. When they fail, that seal is broken, and you essentially develop a controlled "exhaust leak" before the gases ever reach your catalytic converter or muffler.
Common Symptoms of a Failing Gasket
Identifying a failing gasket early can save you from more expensive repairs, such as warped exhaust manifolds or engine damage. Here are the most frequent warning signs to watch out for:
- Ticking or Tapping Sound: This is the most common symptom. Often, the noise is loudest when the engine is cold and tends to quiet down as the metal expands and seals the gap slightly once the engine reaches operating temperature.
- Decreased Fuel Efficiency: An exhaust leak can confuse your oxygen sensors, causing the engine control unit (ECU) to miscalculate the air-fuel mixture, leading to higher fuel consumption.
- Burning Smell: If exhaust gases are leaking into the engine bay, they may come into contact with plastic parts, wiring, or other engine components, resulting in a distinct acrid or burning smell.
- Reduced Engine Power: Significant leaks can affect the backpressure of the engine, leading to a noticeable drop in acceleration and overall power output.
- Check Engine Light: If the leak affects the exhaust gas oxygen levels, your vehicle's computer may trigger a check engine light.
Comparison of Gasket Material Types
When shopping for a replacement, you will notice different material constructions. Choosing the right one depends on your engine type and driving conditions.
| Material Type | Primary Benefit | Best Used For |
|---|---|---|
| Graphite Composite | Excellent conformability | Older vehicles, cast iron manifolds |

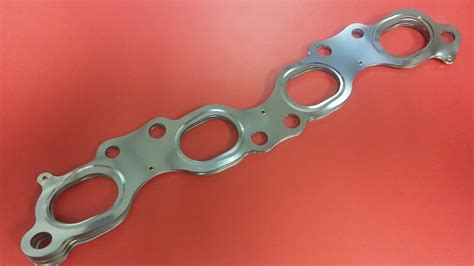

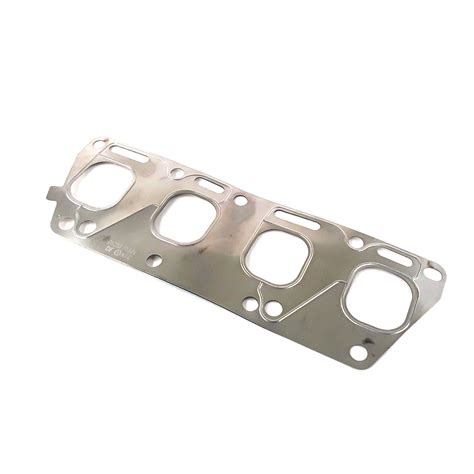

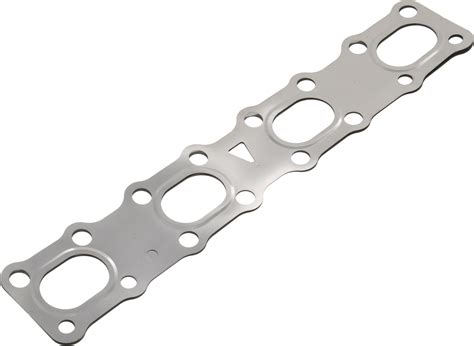

| Multilayer Steel (MLS) | High durability & thermal stability | Modern high-performance engines |
| Copper | Superior heat transfer | Racing applications or modified engines |
⚠️ Note: Always check your vehicle’s service manual to ensure you are selecting the manufacturer-recommended gasket material. Using the wrong type can lead to premature failure or improper sealing.
The Replacement Process: A High-Level Overview
Replacing an exhaust manifold gasket is considered an intermediate to advanced mechanical task. It often involves removing rusted bolts that have been subjected to thousands of heat cycles. If you decide to tackle this project, follow these general steps:
- Preparation: Disconnect the battery and allow the engine to cool completely. Spray all manifold bolts with a high-quality penetrating oil and let them soak for several hours or overnight.
- Access: Remove any heat shields, air intake components, or accessories that block your access to the manifold bolts.
- Removal: Carefully unscrew the manifold bolts. Be extremely cautious, as rusted bolts are prone to snapping. Use a breaker bar if necessary, but apply pressure evenly.
- Cleaning: Once the manifold is removed, use a gasket scraper to clean the mating surface on the cylinder head. Ensure it is perfectly flat and free of old gasket material or debris.
- Installation: Place the new exhaust manifold gasket according to the instructions (some require a specific orientation). Carefully line up the manifold and hand-tighten the bolts before torquing them to the manufacturer’s specification in the correct sequence.
💡 Note: When installing the new gasket, never reuse old bolts. High-heat applications cause metal fatigue, and new bolts ensure proper clamping force for the new seal.
Preventing Future Gasket Issues
While some wear is inevitable, you can extend the life of your gaskets by staying on top of engine maintenance. Overheating is the number one killer of these seals. Ensure your cooling system is flushed regularly and that your coolant levels are always optimal. Furthermore, if you notice your engine running "rich" (too much fuel), address it immediately, as excessively hot exhaust gases can burn through even the highest quality gaskets prematurely.
Another factor is the torque sequence. When you or a mechanic installs a manifold, tightening the bolts in the wrong order can cause the manifold to warp over time. Always ensure the bolts are tightened in a crisscross pattern starting from the center and working your way outward. This ensures even pressure across the surface of the gasket, preventing "hot spots" that lead to failure.
Finally, avoid "short tripping" your vehicle. Driving for only a few minutes at a time does not allow the exhaust system to reach a stable temperature, leading to internal condensation that can cause rust and accelerate the degradation of the mounting hardware and gasket seal. Regular, longer drives help evaporate moisture and maintain the integrity of the exhaust system components.
Taking care of an exhaust leak is more than just a matter of silencing a noisy engine; it is a critical step in preserving the efficiency and health of your vehicle. By recognizing the tell-tale ticking sounds early and understanding the importance of using the correct replacement materials, you can prevent minor issues from turning into major, costly mechanical failures. Whether you choose to perform the repair yourself or enlist the help of a professional, ensuring that your manifold is properly sealed will lead to a smoother, quieter, and more responsive driving experience for years to come.
