Understanding the molecular geometry and electron distribution of simple diatomic molecules is the cornerstone of chemistry education. One of the most fundamental examples used to introduce these concepts is the F2 Lewis structure. Fluorine, being the most electronegative element on the periodic table, forms a simple yet illustrative covalent bond. By examining how these atoms interact to achieve a stable octet, students can grasp the essential rules of chemical bonding, valence electrons, and lone pair distribution. This guide will walk you through the step-by-step process of drawing the Lewis structure for fluorine gas, ensuring you understand the underlying principles of molecular stability.
What is the F2 Molecule?
The F2 molecule consists of two fluorine atoms bonded together. Fluorine is a halogen located in Group 17 of the periodic table. Because it has seven valence electrons, it is just one electron short of achieving a stable, noble gas electron configuration. When two fluorine atoms come into proximity, they share one electron each to form a single covalent bond. This sharing allows both atoms to count eight electrons in their respective valence shells, satisfying the octet rule.

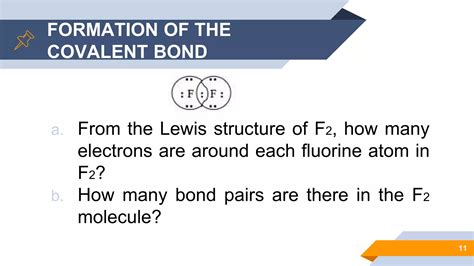

Step-by-Step Guide to Drawing the F2 Lewis Structure
Drawing a Lewis structure requires a systematic approach to ensure that all valence electrons are accounted for and that every atom reaches a stable state. Follow these steps to construct the F2 model:
- Calculate Total Valence Electrons: Each fluorine atom has 7 valence electrons. Since there are two atoms in the molecule, the total number of valence electrons is 7 + 7 = 14.
- Identify the Central Atom: In a diatomic molecule like F2, there is no central atom. The two atoms are simply bonded to each other.
- Draw the Skeleton: Connect the two fluorine atoms with a single bond (a straight line representing two shared electrons).
- Distribute Remaining Electrons: After placing the bond, you have used 2 of your 14 electrons. Distribute the remaining 12 electrons as lone pairs around the fluorine atoms until each atom is surrounded by 8 electrons.
- Check Stability: Each fluorine atom should now have one bond (2 electrons) and three lone pairs (6 electrons), totaling 8 electrons per atom.
⚠️ Note: Always verify that the total number of electrons used in your drawing matches the sum of the valence electrons calculated from the periodic table. If you have too many or too few, your structure is likely incorrect.
Summary of Electron Distribution
To visualize how these electrons are arranged, consider the following table which breaks down the distribution of electrons within the F2 molecule.
| Component | Calculation/Description |
|---|---|
| Valence Electrons per F | 7 electrons |
| Total Valence Electrons | 14 electrons |
| Bonding Electrons | 2 electrons (1 pair) |
| Non-Bonding Electrons | 12 electrons (6 pairs total) |
| Configuration per Atom | 1 bond + 3 lone pairs |
Why Fluorine Forms a Single Bond
The F2 Lewis structure is defined by a single covalent bond because of the octet rule. Fluorine is highly electronegative, meaning it exerts a strong pull on electrons. However, it only requires one additional electron to complete its 2p subshell. Sharing more than one pair of electrons would result in more than eight electrons around the atom, which is energetically unfavorable for second-period elements like fluorine. Therefore, the formation of a single covalent bond is the most stable configuration, resulting in a diatomic molecule that is relatively unreactive under standard conditions.
Common Mistakes When Drawing F2
Even though the structure is simple, beginners often make a few common errors. Recognizing these can help you avoid them in more complex molecules:
- Forgetting Lone Pairs: Students often draw the bond but neglect to add the six lone pair electrons around each atom. Without these, the octet rule is not satisfied.
- Overcounting Electrons: Ensure you only account for valence electrons (the outermost shell) rather than total electrons found in a neutral fluorine atom.
- Misinterpreting the Octet Rule: Some students incorrectly assume that fluorine needs to lose electrons to become stable, failing to recognize that it is a non-metal that forms covalent bonds.
💡 Note: Remember that the octet rule is a guideline. While it applies perfectly to fluorine, it is not always followed by elements in the third period and beyond, which can expand their octets.
Properties Influenced by the F2 Lewis Structure
The electronic configuration of the F2 molecule directly dictates its physical and chemical properties. Because the F-F bond is non-polar (as both atoms share electrons equally due to identical electronegativity), the F2 molecule is non-polar. This results in weak London dispersion forces between F2 molecules, which explains why fluorine exists as a pale yellow gas at room temperature and standard pressure. Furthermore, the single bond between fluorine atoms is surprisingly weak compared to other halogens due to the significant electron-electron repulsion between the lone pairs of the two small fluorine atoms.
Final Thoughts on Molecular Modeling
Mastering the F2 Lewis structure serves as a vital bridge to understanding more complex chemical systems. By observing how two atoms reach stability through the sharing of a single pair of electrons, you develop the intuition necessary to handle structures involving multiple bonds, formal charges, and resonance. Always remember that chemistry is fundamentally about electron distribution; by tracking these electrons accurately, you can predict the bonding behavior, geometry, and reactivity of virtually any molecule you encounter. Whether you are preparing for a chemistry exam or simply brushing up on your foundational knowledge, focusing on these simple diatomic examples will strengthen your overall comprehension of chemical interactions.
