The Finite Element Method (FEM) stands as one of the most transformative numerical techniques in modern engineering and physics. At its core, it provides a systematic way to convert complex differential equations, which are often impossible to solve analytically, into simpler algebraic equations that computers can process with remarkable speed. By breaking down a large, complicated structure into thousands or millions of small, manageable pieces—known as "elements"—engineers can predict how real-world objects will behave under stress, heat, vibration, or fluid flow. Whether you are designing the next generation of aerospace components, automotive safety features, or medical implants, understanding this method is essential for modern technical proficiency.
Understanding the Core Concept of Finite Element Method
To grasp the power of the Finite Element Method, imagine trying to measure the surface area of an irregular, complex sculpture. You could try to use a single complex mathematical formula, which would be nearly impossible, or you could cover it in thousands of tiny, flat triangles and calculate the area of each one before summing them up. This is essentially what FEM does.

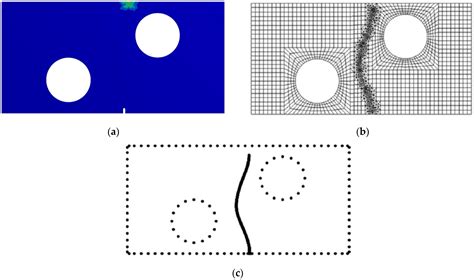

The process, known as discretization, transforms a continuous domain into a set of discrete sub-domains. These sub-domains are connected at specific points called nodes. The ensemble of these elements and nodes is referred to as the mesh. Once the mesh is established, the governing equations for the physical phenomenon (such as structural equilibrium or thermal conduction) are applied to each element. These local equations are then assembled into a massive global matrix equation, which is solved to find the displacements, stresses, or temperatures at every node.
Key components of the methodology include:
- Nodes: The coordinate points where elements connect.
- Elements: The geometric shapes (triangles, quadrilaterals, tetrahedrons) that define the mesh.

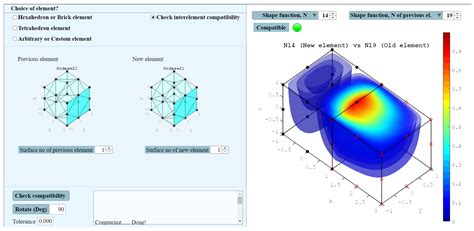

- Shape Functions: Mathematical functions used to interpolate the behavior of the variable across the element.
- Stiffness Matrix: A representation of how the material resists deformation.
- Boundary Conditions: Constraints applied to the model, such as fixed supports or applied loads.
The Step-by-Step Simulation Workflow
Implementing the Finite Element Method follows a standardized engineering pipeline. Each phase is critical to ensuring the accuracy and reliability of the final result. If the initial assumptions are flawed, the simulation output will be misleading—a principle often summarized as "garbage in, garbage out."
- Preprocessing: This involves creating or importing the 3D geometry, assigning material properties (like Young’s modulus or thermal conductivity), and generating the mesh.
- Solution: The software solves the system of algebraic equations. For complex non-linear problems, this may involve iterative methods.

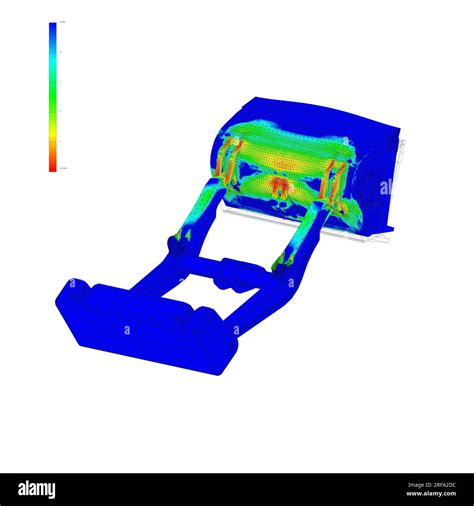

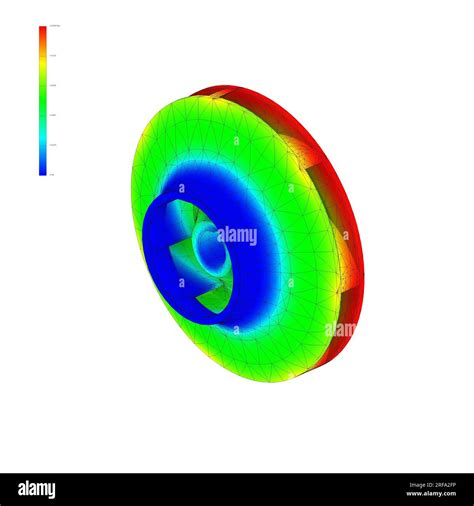

- Post-processing: This is the visualization phase where engineers interpret the data through color-coded plots, such as Von Mises stress, displacement vectors, or temperature gradients.
| Phase | Primary Goal | Common Pitfall |
|---|---|---|
| Preprocessing | Model Setup | Poor mesh quality |
| Solution | Mathematical Solving | Non-convergence issues |
| Post-processing | Data Interpretation | Misinterpreting local singularities |
💡 Note: Always perform a "mesh sensitivity analysis." This involves running the simulation with progressively finer meshes to ensure that your results converge to a stable value and are not merely artifacts of the element size.
Advancements and Applications in Modern Industry
The application of the Finite Element Method has expanded far beyond traditional mechanical engineering. Today, it is used in industries as diverse as biomechanics, where it helps researchers understand the stress distribution in human bones, and electronics, where it predicts heat dissipation in microprocessors. As computing power continues to grow, the ability to perform multi-physics simulations—where, for instance, thermal expansion affects structural integrity simultaneously—has become the new industry standard.
In addition to standard structural analysis, modern software packages now integrate advanced modules for:
- Fluid-Structure Interaction (FSI): Analyzing how fluid flow impacts structural deformation.
- Electromagnetics: Modeling motor performance and signal integrity in circuit boards.
- Optimization Algorithms: Automatically iterating designs to find the lightest possible weight while maintaining safety.
Common Challenges When Using FEM
Despite its robustness, the Finite Element Method is not infallible. Users often encounter significant hurdles, particularly when dealing with complex geometries or non-linear material behavior. High stress concentrations at sharp corners, for example, can lead to "singularities" where the stress appears to go to infinity. Experienced analysts must learn to distinguish between real high-stress zones and numerical errors caused by geometry geometry issues.
Furthermore, selecting the correct element type is vital. Using a first-order linear element for a part undergoing significant bending will result in "shear locking," where the element is unnaturally stiff. Conversely, using higher-order elements increases computational cost, which might be unnecessary for simpler problems. Balancing fidelity with efficiency is the hallmark of a skilled simulation engineer.
💡 Note: When modeling thin-walled structures, avoid using 3D solid elements for every detail. Shell elements are often more accurate and computationally efficient for these specific applications.
Future Perspectives
The future of the Finite Element Method is inextricably linked to artificial intelligence and machine learning. We are seeing a shift where AI is used to optimize meshes automatically or predict simulation outcomes without running the full mathematical solver, drastically reducing the time required for design iterations. This evolution ensures that FEM remains the backbone of innovation, allowing engineers to push the boundaries of what is possible in design, safety, and performance optimization. By maintaining a deep understanding of the underlying physics while leveraging modern digital tools, practitioners can continue to solve the most daunting technical challenges of the 21st century.
The mastery of numerical analysis, specifically the Finite Element Method, provides a fundamental bridge between theoretical physics and tangible engineering reality. By systematically discretizing complex domains, professionals are empowered to predict structural responses with remarkable accuracy, ultimately leading to safer, more efficient, and more sustainable designs across every sector of the global economy. Whether navigating the complexities of mesh generation, managing boundary condition definitions, or interpreting intricate post-processing data, the consistent application of these principles remains a cornerstone of modern scientific progress. As computational capabilities continue to evolve, the integration of automated workflows and advanced material modeling will only solidify the importance of this method, ensuring that it remains an indispensable asset for engineers facing the increasingly demanding challenges of the future.
