The human skull is a marvel of biological engineering, consisting of numerous complex structures, sutures, and openings designed to protect the brain while allowing for the passage of essential nerves and blood vessels. Among these anatomical landmarks, the foramen ovale skull feature holds a position of significant clinical importance. Located within the sphenoid bone at the base of the cranium, this small but critical oval-shaped opening serves as a major gateway for neurovascular structures to travel between the intracranial cavity and the extracranial spaces. Understanding the anatomy, function, and clinical implications of the foramen ovale is essential for medical professionals, students, and anyone interested in the intricate architecture of the human head.
Anatomy of the Foramen Ovale
The foramen ovale is situated in the greater wing of the sphenoid bone, positioned posterolateral to the foramen rotundum and anterolateral to the foramen spinosum. Its name, which is Latin for "oval opening," accurately describes its shape, which typically measures about 7 millimeters in length and 4 millimeters in width in the average adult. Because of its location in the middle cranial fossa, it acts as a primary conduit for several key structures that are vital for sensory and motor function in the face.
The specific structures that pass through the foramen ovale can be remembered using the mnemonic "OVALE", which highlights the primary components:
- Otic ganglion (located just inferior to the foramen)
- V3 (the mandibular nerve, a major branch of the trigeminal nerve)
- Accessory meningeal artery
- Lesser petrosal nerve
- Emissary veins (which connect the cavernous sinus to the pterygoid plexus)
The most prominent structure traversing this opening is undoubtedly the mandibular nerve (V3). This nerve provides sensory innervation to the lower face, including the teeth and gums of the lower jaw, as well as motor innervation to the muscles of mastication. Any anatomical variation or surgical procedure involving this area must account for the proximity of these delicate structures.
Comparison of Key Cranial Foramina

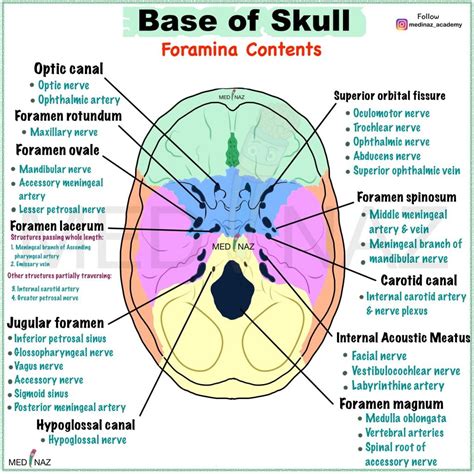

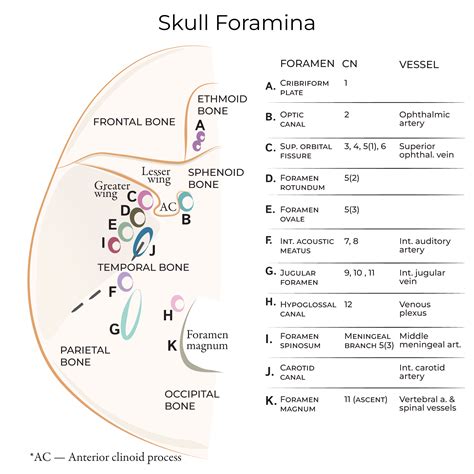

To better understand the placement of the foramen ovale, it is helpful to look at its neighbors within the sphenoid bone. The following table provides a quick reference for the primary openings at the base of the skull:
| Foramen | Primary Structures Passing Through |
|---|---|
| Foramen Rotundum | Maxillary nerve (V2) |
| Foramen Ovale | Mandibular nerve (V3), accessory meningeal artery |
| Foramen Spinosum | Middle meningeal artery, meningeal branch of V3 |
| Foramen Lacerum | Internal carotid artery (passes over, not through) |
⚠️ Note: Anatomical variations can occur, such as the complete absence of a foramen ovale or the presence of a "foramen of Vesalius," which is a small opening located medial to the foramen ovale that transmits emissary veins.
Clinical Significance and Surgical Access
The foramen ovale skull anatomy is not just a subject for textbooks; it has real-world clinical applications. Because the foramen ovale provides a direct route to the mandibular nerve, it is frequently utilized as a portal for percutaneous procedures. For instance, in patients suffering from debilitating trigeminal neuralgia, surgeons may use a needle-guided approach through the foramen ovale to perform a rhizotomy or to inject therapeutic agents to block the pain signals emanating from the mandibular nerve.
Furthermore, diagnostic imaging techniques like CT scans and MRIs rely on clear visualization of the foramen ovale to detect pathological conditions. Tumors in the nasopharynx or the middle cranial fossa can sometimes invade or distort this opening, leading to symptoms such as facial numbness, jaw pain, or weakness in the muscles of chewing. Radiologists carefully inspect this area to ensure the symmetry and integrity of the bone, as asymmetries might indicate an underlying clinical issue.
Variations and Anomalies
While the standard anatomy is well-defined, individual variations are relatively common. Some individuals may possess a bony bridge that partially or completely divides the foramen ovale into two or more distinct openings. These anatomical variations can present challenges for clinicians attempting to place electrodes or needles through the opening, as the orientation and size of the passage may deviate from the expected standard. Advances in neuro-navigation and 3D imaging have significantly improved the safety and accuracy of procedures involving this anatomical landmark.
Additionally, the orientation of the foramen ovale can change throughout a person's life, from infancy to adulthood, as the sphenoid bone undergoes developmental maturation. These changes are crucial for pediatric neurosurgeons to understand when planning interventions in younger patients. Understanding these developmental shifts ensures that clinical procedures remain minimally invasive and highly targeted, reducing the risk of accidental injury to the surrounding neurovascular bundles.
💡 Note: Always consult with a qualified medical professional for specific concerns regarding cranial anatomy or persistent facial pain, as these symptoms require expert clinical diagnosis.
The foramen ovale serves as an indispensable bridge between the brain and the peripheral nervous system. Its role in transmitting the mandibular nerve and maintaining the connection between intracranial and extracranial vessels underscores its importance in human physiology. As we continue to refine surgical techniques and diagnostic accuracy, the detailed study of such cranial structures remains a fundamental pillar of medical education. Whether through the lens of anatomical study or the precision of surgical intervention, the foramen ovale remains a focal point of clinical excellence. Recognizing the nuances of this small aperture not only aids in the success of neurosurgical endeavors but also deepens our appreciation for the complex, efficient design of the human skull, ensuring that we continue to improve patient outcomes through a more profound understanding of cranial anatomy.
