Fracture Of Zygomatic Complex

A fracture of zygomatic complex, often referred to as a "tripod fracture," is a significant facial injury that requires prompt clinical attention. The zygoma, commonly known as the cheekbone, serves as a crucial structural component of the midface, providing both aesthetic contour and protection for the underlying structures of the eye and sinuses. Because of its prominent position, the zygoma is highly susceptible to trauma, usually resulting from interpersonal violence, motor vehicle accidents, or falls. Understanding the mechanisms, clinical presentation, and management of these fractures is essential for both patients and healthcare providers to ensure proper functional and cosmetic recovery.

Table of Contents

Anatomy and Mechanics of Injury

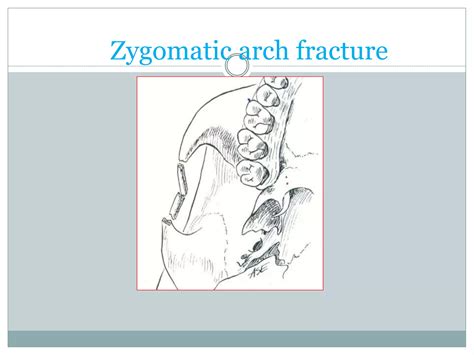

The zygomatic bone articulates with four other bones: the frontal bone, the sphenoid bone, the maxilla, and the temporal bone. When an impact force is applied to the cheekbone, it often causes separation at these four points of contact, resulting in a displaced or “floating” bone segment. This specific type of injury is termed a fracture of zygomatic complex because it involves the zygomatic arch and the orbital walls, extending into the maxillary sinus.

The severity of the injury depends largely on the magnitude and direction of the force. High-impact trauma frequently leads to significant displacement, which can interfere with the function of the masseter muscle (causing difficulty in jaw opening) and compromise the integrity of the orbital floor, potentially leading to visual disturbances.

Clinical Signs and Symptoms

Recognizing the symptoms early is vital for effective treatment planning. Because the zygomatic complex is closely associated with surrounding nerves, muscles, and the eye, symptoms are often diverse and easily observable.

Flattening of the cheek: A visible depression on the affected side compared to the unaffected side.
Trismus: Difficulty opening the mouth, usually caused by the displaced bone impinging on the coronoid process of the mandible.
Periorbital ecchymosis: Bruising around the eye (often referred to as a “black eye”).
Infraorbital nerve paresthesia: Numbness or tingling sensation in the cheek, upper lip, and lateral nose area.
Diplopia: Double vision, resulting from orbital floor displacement or injury to the extraocular muscles.
Step-off deformity: A palpable break in the continuity of the orbital rim.

Clinical Feature	Typical Cause
Trismus	Mechanical impingement on the coronoid process
Numbness (Paresthesia)	Infraorbital nerve trauma
Diplopia	Orbital floor involvement or muscular entrapment
Facial Asymmetry	Bone displacement

Diagnostic Approaches

Diagnosing a fracture of zygomatic complex requires a combination of a thorough physical examination and advanced imaging. Physicians typically begin with a clinical assessment, checking for symmetry, sensory changes, and visual alignment. Following this, imaging is non-negotiable for precise diagnosis.

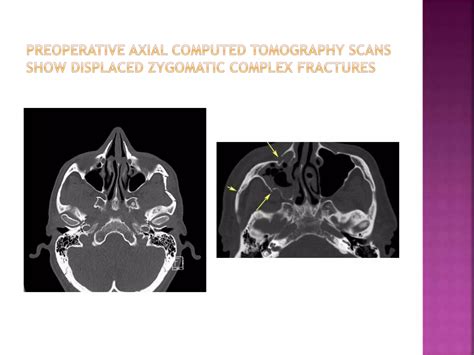

Computed Tomography (CT) scans, specifically axial and coronal views, remain the gold standard for diagnosing these fractures. CT imaging allows the surgeon to visualize the exact degree of displacement, the involvement of the orbital floor, and any potential herniation of orbital contents into the maxillary sinus.

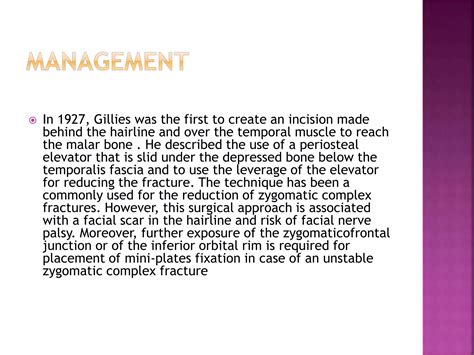

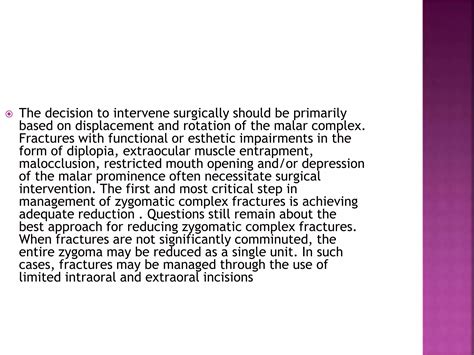

Management and Surgical Intervention

Not all zygomatic fractures require surgical intervention. In cases where the fracture is non-displaced and the patient does not experience significant functional or aesthetic impairment, observation and soft diet recommendations may suffice. However, if there is functional impairment or unacceptable cosmetic deformity, surgical reduction is necessary.

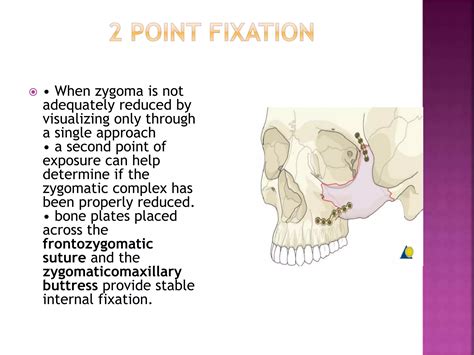

Surgical management typically involves an open reduction and internal fixation (ORIF). The surgeon will make incisions, often through the eyelid (subciliary) or inside the mouth (intraoral), to access the fractured bone segments. Once accessed, the bone is repositioned (reduced) and stabilized using titanium plates and screws. This rigid fixation ensures proper healing and prevents the bone from shifting during the recovery phase.

⚠️ Note: If you experience significant facial trauma, seek emergency medical care immediately to rule out intracranial injuries or severe vision-threatening complications before focusing on the bony facial structures.

Recovery and Post-Operative Care

The recovery process after surgical correction of a fracture of zygomatic complex requires patience. Initially, there will be swelling and bruising, which typically peaks within the first 48 to 72 hours. Patients are advised to use cold compresses and keep their head elevated to minimize edema.

Avoid strenuous physical activity for at least 4 to 6 weeks.
Adhere to a soft diet to reduce the strain on jaw muscles.
Maintain excellent oral hygiene, especially if intraoral incisions were made.
Attend all follow-up appointments to monitor for late complications such as infection or hardware exposure.

Most patients achieve excellent functional outcomes, with resolution of trismus and return of aesthetic symmetry. However, nerve recovery (sensation in the cheek) can be slow and, in some cases, may remain permanently altered depending on the initial severity of the nerve damage.

When considering the long-term outlook for someone who has sustained a fracture of zygomatic complex, the key elements are early diagnosis and specialized surgical intervention. By addressing the displacement through precise anatomical reduction and rigid fixation, surgeons can effectively restore both the form and function of the midface. While the healing period requires adherence to strict post-operative guidelines, the prognosis for most patients is very positive. Through diligent monitoring and the advancement of modern facial surgery techniques, the vast majority of individuals recover their normal facial appearance and function, allowing them to move past the trauma effectively.
