A Fracture Zygomaticomaxillary Complex (ZMC fracture), often referred to colloquially as a "tripod fracture," is a significant facial injury that involves the disruption of the zygoma—commonly known as the cheekbone—from its articulations with the maxilla, the temporal bone, and the frontal bone. Given the prominence of the cheekbone on the face, it is highly susceptible to trauma, typically resulting from high-impact events like motor vehicle accidents, interpersonal violence, or sports-related injuries. Because the ZMC is structural, serving as a pillar for the midface, fractures here can lead to both functional impairments, such as difficulty opening the mouth or double vision, and aesthetic deformities if left untreated. Understanding the mechanics, diagnosis, and management of these complex facial fractures is essential for both medical professionals and patients seeking to understand their recovery journey.
Anatomy and Mechanism of ZMC Fractures

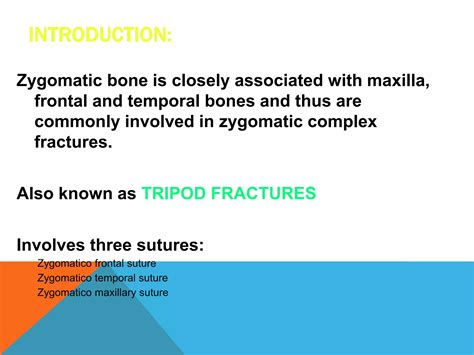

The zygoma is a crucial structural component of the orbit and the face. It is connected to the facial skeleton via four primary points: the zygomaticofrontal suture, the zygomaticomaxillary suture, the zygomaticotemporal suture (at the zygomatic arch), and the orbital floor. A true Fracture Zygomaticomaxillary Complex involves displacement or fracture at each of these junctions, effectively detaching the bone from the rest of the facial framework.
The severity of the injury often depends on the force and the vector of the impact. Because this bone acts as a bridge, high-energy impact usually drives the bone downward, inward, or posteriorly. The clinical implications are significant, as this bone forms a major part of the lateral orbital wall and the orbital floor. Disruptions here can impact the contents of the orbit, leading to issues with ocular function.
Common Clinical Symptoms

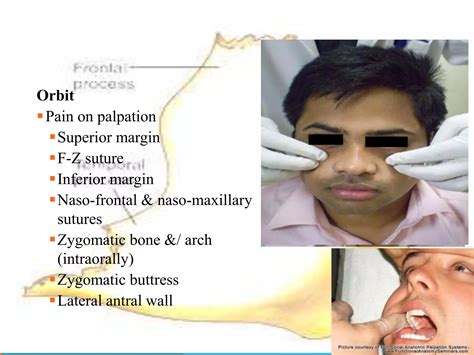

Patients suffering from a Fracture Zygomaticomaxillary Complex typically present with a distinct set of clinical symptoms. Early recognition is vital for preventing long-term complications. Some of the most frequently observed symptoms include:
- Flattening of the cheekbone: A noticeable asymmetry compared to the unaffected side of the face.
- Periorbital ecchymosis: Significant bruising and swelling around the eye, commonly referred to as a "black eye."
- Subconjunctival hemorrhage: Bleeding appearing in the white part of the eye, which is a classic sign of orbital trauma.

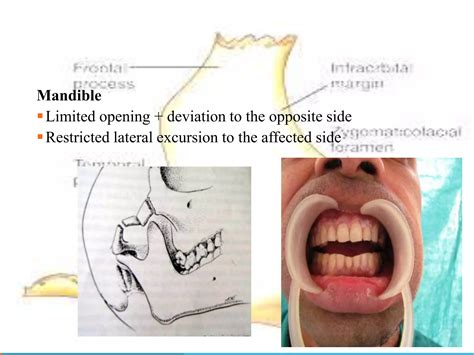

- Trismus: Difficulty opening the mouth, which occurs if the fractured zygomatic arch impinges on the coronoid process of the mandible.

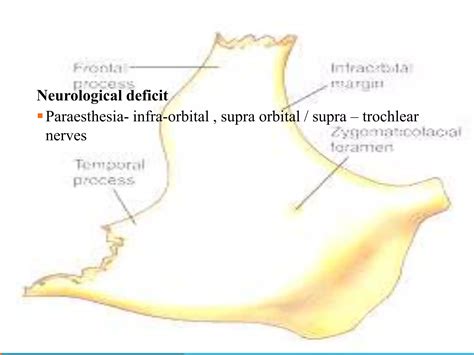

- Paresthesia: Numbness or tingling in the cheek, upper lip, and lateral nose area due to damage to the infraorbital nerve.
- Diplopia: Double vision, which suggests that the orbital floor has been compromised and the position of the eye muscles has been affected.
Diagnostic Imaging Protocols

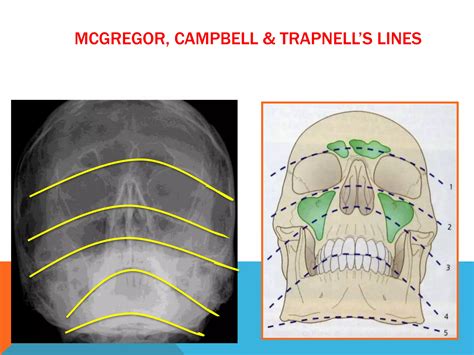

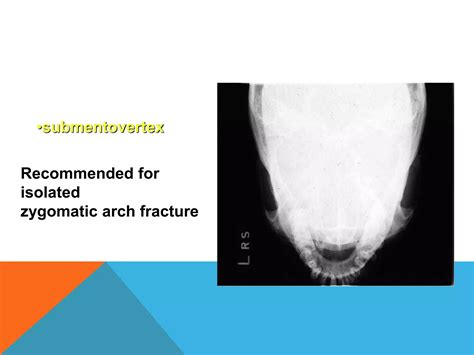

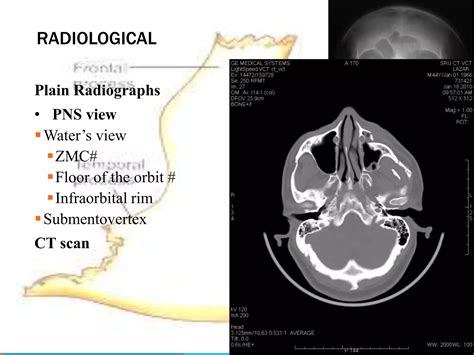

To accurately plan surgical intervention, clinicians rely on advanced imaging techniques. A standard physical examination can identify potential fractures, but imaging is necessary to define the exact displacement and comminution.
| Imaging Modality | Purpose in ZMC Fracture |
|---|---|
| Computed Tomography (CT) Scan | The gold standard. Provides 3D visualization of the fracture lines and displacement. |
| Coronal and Axial Views | Essential for assessing the orbital floor integrity and the zygomatic arch. |
| Panoramic Radiograph | Occasionally used to assess associated mandibular fractures. |
💡 Note: A CT scan with thin-slice reconstruction is mandatory for surgical planning, as it allows surgeons to visualize the exact degree of rotation and displacement of the bone segments.
Surgical Treatment and Reduction Techniques
The primary goal in treating a Fracture Zygomaticomaxillary Complex is to restore the normal anatomical position, structural integrity, and function of the zygoma. If the fracture is non-displaced, surgical intervention may not be necessary. However, most symptomatic cases require Open Reduction and Internal Fixation (ORIF).

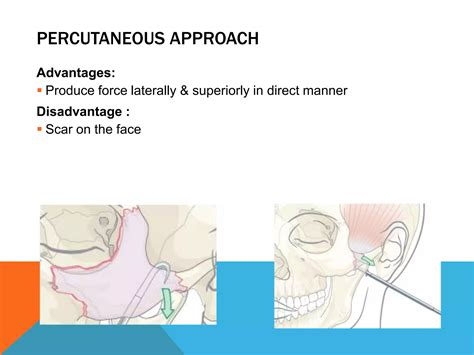

During the procedure, the surgeon makes incisions—often in inconspicuous areas like inside the mouth, the lower eyelid, or the eyebrow—to access the fracture sites. The displaced bone is then elevated into its proper anatomical position. Once correctly aligned, internal fixation is performed using titanium plates and screws to hold the bone in place while it heals.
Key steps in the surgical management include:
- Access and Exposure: Carefully exposing the zygomaticofrontal suture, the infraorbital rim, and the zygomatic arch.
- Reduction: Maneuvering the bone segments back into anatomical alignment.

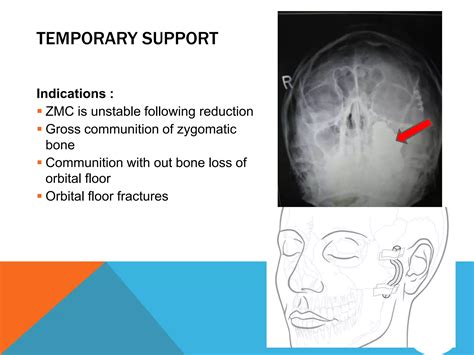

- Fixation: Using rigid fixation (plates and screws) at two or three points to ensure the zygoma remains stable.

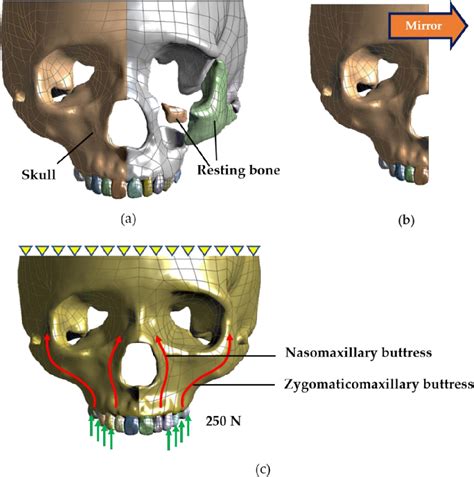

- Orbital Reconstruction: If the floor of the orbit is fractured or shattered, a graft or implant is often placed to support the eye and prevent it from dropping.
💡 Note: Early surgical intervention, typically within the first two weeks, is highly recommended. After this period, the bone begins to heal in its malpositioned state, making reduction significantly more difficult and increasing the risk of requiring a corrective osteotomy later.
Recovery and Post-Operative Management
Post-operative care is crucial for ensuring optimal healing after a Fracture Zygomaticomaxillary Complex repair. Patients are typically advised to avoid any strenuous physical activity or contact sports for several weeks to prevent re-injury. Swelling and bruising are expected, and cold compresses are usually recommended for the first 48 hours to minimize this.
Maintaining oral hygiene is particularly important, especially if intraoral incisions were utilized. Using an antimicrobial mouthwash is often prescribed to reduce the risk of infection at the surgical sites. Additionally, patients should avoid blowing their nose for several weeks, as this can pressure the orbital floor and potentially cause surgical complications if the sinuses are involved in the injury.
Potential Complications
While modern surgical techniques for a Fracture Zygomaticomaxillary Complex have high success rates, complications can occur. These may include persistent numbness in the distribution of the infraorbital nerve, chronic double vision if the orbital floor was severely damaged, or visible asymmetry. In some instances, hardware (plates and screws) may cause local irritation and require removal at a later date. Working with an experienced facial trauma surgeon is the best way to minimize these risks and achieve an aesthetically and functionally pleasing result.
In summary, managing a Fracture Zygomaticomaxillary Complex requires a comprehensive understanding of facial anatomy and precise surgical technique. By utilizing advanced imaging like CT scans to guide treatment, surgeons can successfully realign displaced structures and restore normal facial function. Recognizing symptoms early and seeking prompt medical evaluation are the most critical steps in the patient journey. With appropriate surgical intervention and diligent post-operative care, most individuals can expect a positive outcome, returning to their normal activities while minimizing the impact of these traumatic injuries on their long-term facial aesthetics and comfort.
